USB, DVI, HDMI Connector Assemblies

Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Voltage - Rated	Number of Contacts	Connector Type	Gender	Contact Finish	Current Rating (Amps)	Mounting Type	Shielding	Operating Temperature	Specifications	Termination	Ingress Protection	Material Flammability Rating	Mounting Feature	Mating Cycles	Insulation Color	Shell/Shielding Material	Number of Ports
DX07VN24WA2C1568 CONN PLUG USB3.1 TYPEC 24POS SMD JAE Electronics Datasheet	2,134 In Stock	1 : $2.70 10 : $23.50 25 : $56.25 40 : $88.00 80 : $168.00 230 : $437.00 440 : $770.00 1,568 : $2,273.60 3,136 : $4,390.40 Tray	DX07	Tray	Active	Board Guide, Pick and Place Cap	20VAC	24	USB-C (USB TYPE-C)	Plug	Gold	5A	Surface Mount	Shielded	-30°C ~ 80°C	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))	Solder	-	-	Flange, Vertical	10000	Black	Steel, Stainless	1

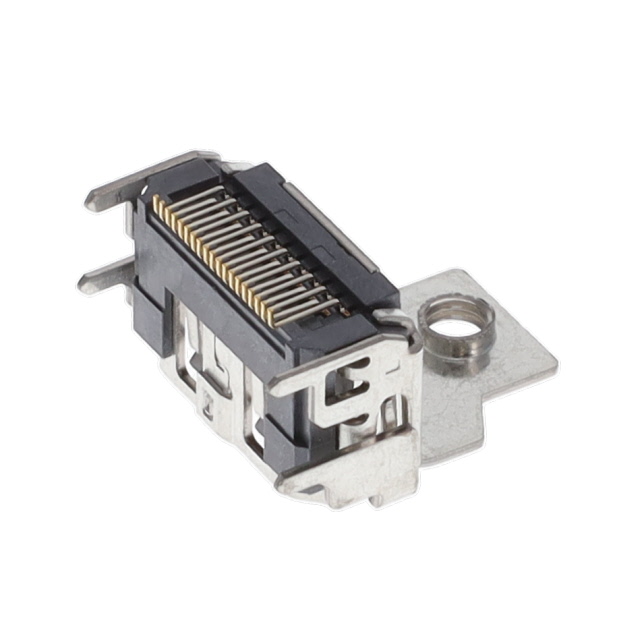

DC1RS19JAX CONN HDMI A RCPT 19 POS R/A JAE Electronics Datasheet	621 In Stock	1 : $1.20 16 : $16.16 32 : $31.04 40 : $38.00 80 : $72.80 232 : $192.56 440 : $330.00 952 : $628.32 2,400 : $1,440.00 Tray	DC1	Tray	Active	Board Guide	-	19	HDMI	Receptacle	Gold	-	Panel Mount; Surface Mount, Right Angle; Through Hole	Shielded	-20°C ~ 85°C	-	Solder	-	-	Flange, Horizontal	-	Black	Steel, Stainless	1
DX07S024JJ4R1300 CONN RCP USB3.1 TYPEC 24P SMD RA JAE Electronics Datasheet	5,844 In Stock	1,300 : $1,976.00 2,600 : $3,692.00 6,500 : $8,840.00 Tape & Reel (TR)	DX07	Tape & Reel (TR) Cut Tape (CT)	Active	Board Lock	20V	24	USB-C (USB TYPE-C)	Receptacle	Gold	0.25A, 1.25A	Surface Mount, Right Angle; Through Hole	Shielded	-30°C ~ 80°C	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))	Solder	-	-	Horizontal	10000	Black	Steel, Stainless	1
DX07B024JJ3R1600 CONN RCP USB3.1 TYPEC 24P SMD RA JAE Electronics Datasheet	14,235 In Stock	1,600 : $2,352.00 3,200 : $4,544.00 4,800 : $6,528.00 Tape & Reel (TR)	DX07	Tape & Reel (TR) Cut Tape (CT)	Active	-	20V	24	USB-C (USB TYPE-C)	Receptacle	Gold	0.25A, 1.25A	Board Cutout, Surface Mount, Right Angle; Through Hole	Shielded	-30°C ~ 80°C	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))	Solder	-	-	Horizontal, Mid Mount	10000	Black	Steel, Stainless	1
DC1RS19JA7R550 CONN HDMI A 19 POS R/A JAE Electronics Datasheet	168 In Stock	550 : $984.50 1,100 : $1,672.00 1,650 : $2,425.50 2,750 : $3,905.00 5,500 : $7,535.00 Tape & Reel (TR)	DC1	Tape & Reel (TR) Cut Tape (CT)	Active	Board Guide	-	19	HDMI	Receptacle	-	-	Surface Mount, Right Angle; Through Hole	Shielded	-20°C ~ 85°C	-	Solder	-	-	Horizontal	-	-	-	1
DX07S016JA3R1500 CONN RCP USB2.0 TYP C 24P SMD RA JAE Electronics Datasheet	6,895 In Stock	1,500 : $1,650.00 3,000 : $3,180.00 7,500 : $7,575.00 Tape & Reel (TR)	DX07	Tape & Reel (TR) Cut Tape (CT)	Active	-	20V	24 (16+8 Dummy)	USB-C (USB TYPE-C)	Receptacle	Gold	0.25A, 1.25A, 5A, 6.25A	Surface Mount, Right Angle; Through Hole	Shielded	-40°C ~ 85°C	USB 2.0	Solder	-	-	Horizontal	10000	Black	Steel, Stainless	1
DX07W024JA2R1000 CONN RCPT USB3.1 TYPEC 24POS SMD JAE Electronics Datasheet	4,724 In Stock	1,000 : $2,430.00 2,000 : $4,700.00 3,000 : $6,780.00 Tape & Reel (TR)	DX07	Tape & Reel (TR) Cut Tape (CT)	Active	Board Guide	20VAC	24	USB-C (USB TYPE-C)	Receptacle	-	0.25A, 1.25A, 5A, 6.25A	Board Edge, Surface Mount, Right Angle	Shielded	-30°C ~ 80°C	USB 2.0	Solder	IPX8 - Waterproof	-	Horizontal, Mid Mount	10000	-	-	1
DX07S024JA1R1300 CONN RCP USB3.1 C SMD R/A 1300PC JAE Electronics Datasheet	1,233 In Stock	1,300 : $1,677.00 2,600 : $3,120.00 6,500 : $7,410.00 Tape & Reel (TR)	DX07	Tape & Reel (TR) Cut Tape (CT)	Active	Board Guide	20VAC	24	USB-C (USB TYPE-C)	Receptacle	Gold	5A	Surface Mount, Right Angle; Through Hole	Shielded	-30°C ~ 80°C	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))	Solder	-	-	Horizontal	10000	Black	Steel, Stainless	1
DX07S024JJ7R1200 USB TYPE C, RECEPTACLE, 1200 PIE JAE Electronics Datasheet	1,272 In Stock	1,200 : $2,460.00 2,400 : $4,584.00 Tape & Reel (TR)	DX07	Tape & Reel (TR) Cut Tape (CT)	Active	Board Lock	20V	24	USB-C (USB TYPE-C)	Receptacle	Gold	0.25A, 1.25A	Surface Mount, Right Angle; Through Hole	Shielded	-30°C ~ 80°C	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))	Solder	-	-	Horizontal	10000	Black	Steel, Stainless	1
DX07S024WJ3R400 CONN RCPT USB3.1 TYPEC 24POS SMD JAE Electronics Datasheet	4,700 In Stock	400 : $708.00 800 : $1,264.00 1,200 : $1,668.00 2,000 : $2,700.00 2,800 : $3,640.00 Tape & Reel (TR)	DX07	Tape & Reel (TR) Cut Tape (CT)	Active	Board Guide	20V	24	USB-C (USB TYPE-C)	Receptacle	-	5A	Surface Mount, Through Hole	Unshielded	-30°C ~ 80°C	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))	Solder	-	-	Vertical	10000	Black	-	1
