Part Number |
DX07VN24WA2C1568
|
---|---|
Manufacturer | JAE Electronics |
Other Part Numbers |
670-3103-ND
670-3103-1
670-3103-6-ND
670-3103-2
670-3103-1-ND
670-3103-2-ND
670-3103-6
670-3103-6INACTIVE
670-3103-1INACTIVE
670-3103
|

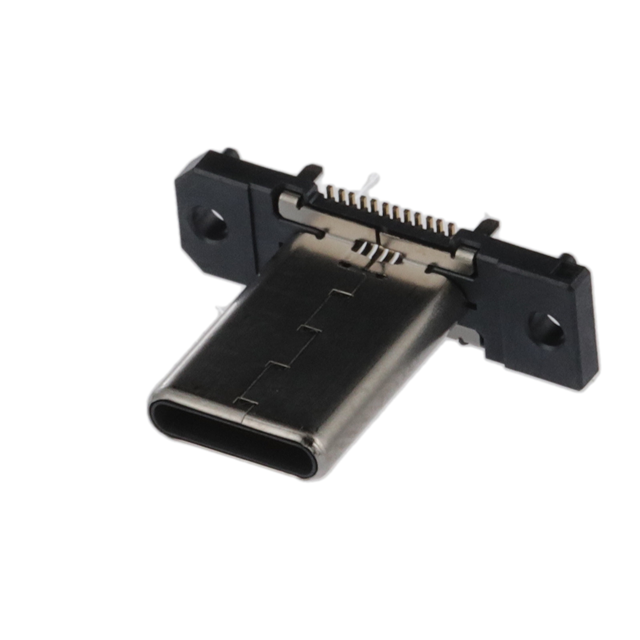

Description | CONN PLUG USB3.1 TYPEC 24POS SMD |
Detailed Description | USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Plug Connector 24 Position Surface Mount |
Manufacturer Standard Lead Time | 15 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | JAE Electronics | |
Series |
DX07
|
|
Packaging |
Tray
|
|
Part Status | Active | |
Features | Board Guide, Pick and Place Cap | |
Voltage - Rated | 20VAC | |
Number of Contacts | 24 | |
Connector Type | USB-C (USB TYPE-C) | |
Gender | Plug | |
Contact Finish | Gold | |
Current Rating (Amps) | 5A | |
Mounting Type | Surface Mount | |
Shielding | Shielded | |
Operating Temperature | -30°C ~ 80°C | |
Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) | |
Termination | Solder | |
Mounting Feature | Flange, Vertical | |
Mating Cycles | 10000 | |
Insulation Color | Black | |
Shell/Shielding Material | Steel, Stainless | |
Number of Ports | 1 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | DX07VN24WA2C1568 | |
Datasheets | Voltage Rating chg 07/JAN/2022 | |
Datasheets | DX07yy Plating Supplier Add Dec/2018 | |
Datasheets | DX07 Series Video 23/JAN/2023 | |
Datasheets | DX07VN24WA2 Drawing | |
Datasheets | DX07Plug_CPI |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.69.4040 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
