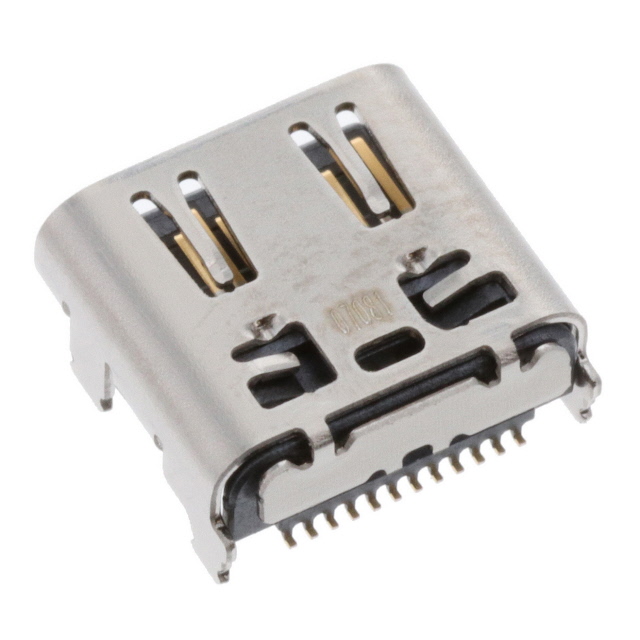

DX07S024JA1R1300 _ USB, DVI, HDMI Connector Assemblies_USB, DVI, HDMI Connectors_Connectors, Interconnects

Part Number	DX07S024JA1R1300
Manufacturer	JAE Electronics
Other Part Numbers	670-3104-2-ND 670-3104-1-ND 670-3104-6-ND 670-3104-1 670-3104-2 670-3104-6
Description	CONN RCP USB3.1 C SMD R/A 1300PC
Detailed Description	USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects USB, DVI, HDMI Connectors USB, DVI, HDMI Connector Assemblies
Manufacturer		JAE Electronics
Series		DX07
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Board Guide
Voltage - Rated		20VAC
Number of Contacts		24
Connector Type		USB-C (USB TYPE-C)
Gender		Receptacle
Contact Finish		Gold
Current Rating (Amps)		5A
Mounting Type		Surface Mount, Right Angle; Through Hole
Shielding		Shielded
Operating Temperature		-30°C ~ 80°C
Specifications		USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination		Solder
Mounting Feature		Horizontal
Mating Cycles		10000
Insulation Color		Black
Shell/Shielding Material		Steel, Stainless
Number of Ports		1

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
