Part Number |
DX07W024JA2R1000
|
---|---|
Manufacturer | JAE Electronics |
Other Part Numbers |
670-3102-2-ND
670-3102-1-ND
670-3102-6-ND
670-3102-1
670-3102-2
670-3102-6
|

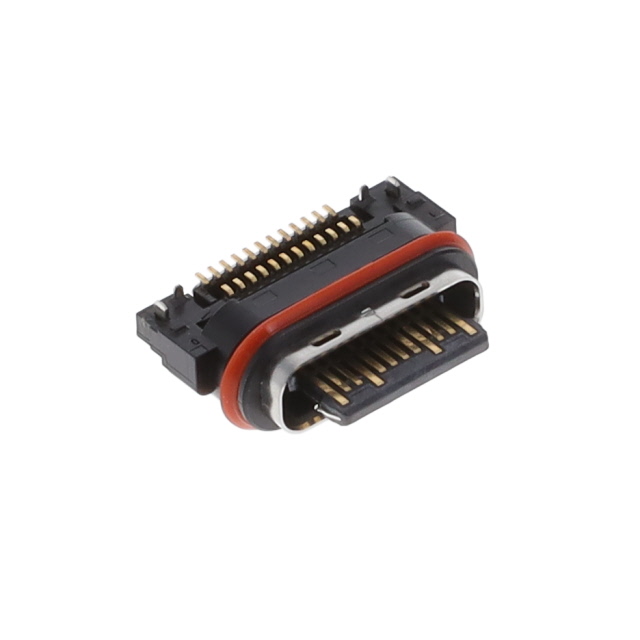

Description | CONN RCPT USB3.1 TYPEC 24POS SMD |
Detailed Description | USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 Position Board Edge, Surface Mount, Right Angle |
Manufacturer Standard Lead Time | 15 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | JAE Electronics | |
Series |
DX07
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
|
|
Part Status | Active | |
Features | Board Guide | |
Voltage - Rated | 20VAC | |
Number of Contacts | 24 | |
Connector Type | USB-C (USB TYPE-C) | |
Gender | Receptacle | |
Current Rating (Amps) | 0.25A, 1.25A, 5A, 6.25A | |
Mounting Type | Board Edge, Surface Mount, Right Angle | |
Shielding | Shielded | |
Operating Temperature | -30°C ~ 80°C | |
Specifications | USB 2.0 | |
Termination | Solder | |
Ingress Protection | IPX8 - Waterproof | |
Mounting Feature | Horizontal, Mid Mount | |
Mating Cycles | 10000 | |
Number of Ports | 1 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | DX07W024JA2R1000 | |
Datasheets | Voltage Rating chg 07/JAN/2022 | |
Datasheets | DX07 Series Video 23/JAN/2023 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.69.4040 | |
Moisture Sensitivity Level (MSL) | Not Applicable |
