Transistor, Photovoltaic Output Optoisolators

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Output Type

Darlington

Darlington with Base

MOSFET

Photovoltaic

Photovoltaic, Linearized

Transistor

Transistor, Linearized

Transistor with Base

Mounting Type

DIN Rail

Surface Mount

Surface Mount, Butt Joint

Through Hole

Input Type

AC, DC

Grade

Automotive

Number of Channels

Qualification

AEC-Q100

AEC-Q101

AEC-Q102

Mfr Part #	Quantity	Price	Package	Product Status	Package / Case	Output Type	Mounting Type	Operating Temperature	Voltage - Forward (Vf) (Typ)	Input Type	Current - Output / Channel	Voltage - Isolation	Current Transfer Ratio (Min)	Vce Saturation (Max)	Current Transfer Ratio (Max)	Supplier Device Package	Voltage - Output (Max)	Turn On / Turn Off Time (Typ)	Rise / Fall Time (Typ)	Grade	Number of Channels	Current - DC Forward (If) (Max)	Qualification
HCPL-3700-300E OPTOISOLATOR 3.75KV DARL 8DIP GW Broadcom Datasheet	1,460 In Stock	1 : $5.05 50 : $178.50 100 : $293.00 500 : $1,235.00 1,000 : $2,260.00 2,000 : $4,340.00 Tube	Tube	Active	8-SMD, Gull Wing	Darlington	Surface Mount	-40°C ~ 85°C	-	AC, DC	30mA	3750Vrms	-	-	-	8-DIP Gull Wing	20V	4µs, 10µs	20µs, 0.3µs	-	1	-	-

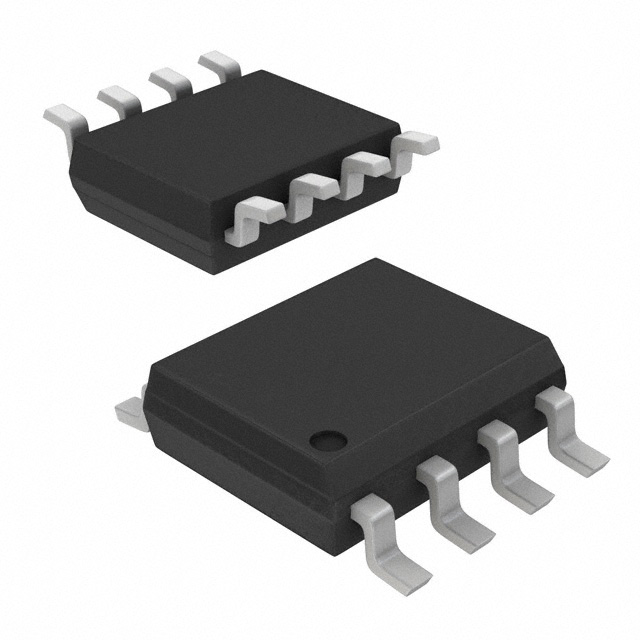

HCPL-0454#060 OPTOISO 3.75KV TRANSISTOR 8SOIC Broadcom Datasheet	1,844 In Stock	1 : $4.69 10 : $33.20 100 : $272.00 500 : $1,145.00 1,000 : $2,100.00 2,000 : $4,020.00 5,000 : $9,850.00 Tube	Tube	Active	8-SOIC (0.154", 3.90mm Width)	Transistor	Surface Mount	-55°C ~ 100°C	1.5V	DC	8mA	3750Vrms	21% @ 16mA	-	-	8-SO	20V	200ns, 300ns	-	-	1	25 mA	-
HCPL-0534-000E OPTOISO 3.75KV 2CH TRANS 8SOIC Broadcom Datasheet	777 In Stock	1 : $6.95 10 : $49.10 100 : $403.00 500 : $1,695.00 1,000 : $3,110.00 2,000 : $5,960.00 Tube	Tube	Active	8-SOIC (0.154", 3.90mm Width)	Transistor	Surface Mount	-55°C ~ 100°C	1.5V	DC	8mA	3750Vrms	15% @ 16mA	-	50% @ 16mA	8-SO	20V	200ns, 600ns	-	-	2	25 mA	-

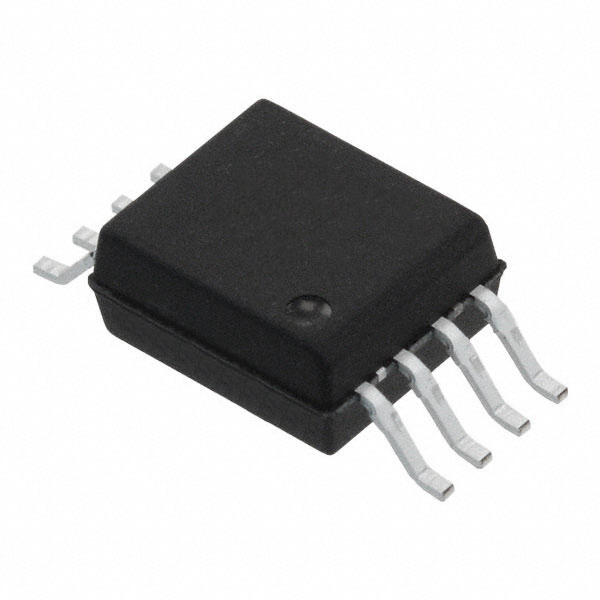

ACPL-K453-000E OPTOISOLATOR 5KV TRANSISTOR 8-SO Broadcom Datasheet	20 In Stock	1 : $3.23 Tube	Tube	Active	8-SOIC (0.268", 6.81mm Width)	Transistor	Surface Mount	-55°C ~ 100°C	1.5V	DC	8mA	5000Vrms	19% @ 16mA	-	50% @ 16mA	8-SO Stretched	20V	200ns, 600ns	-	-	1	25 mA	-

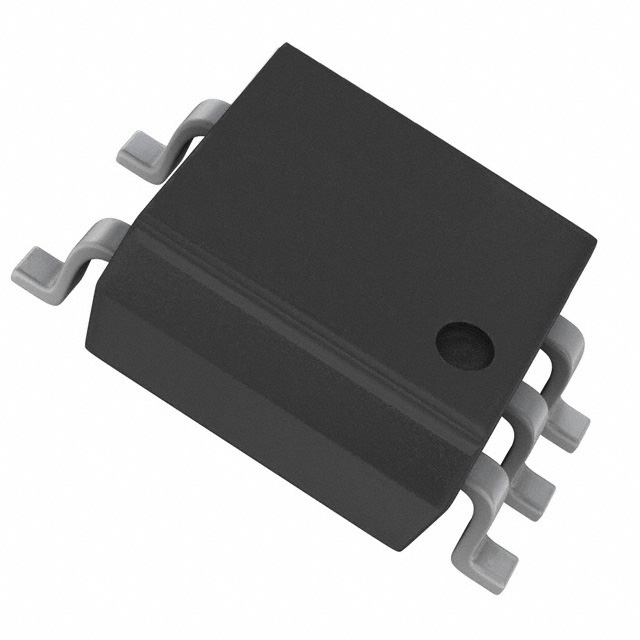

HCPL-M453-000E OPTOISO 3.75KV TRANSISTOR 6SOIC Broadcom Datasheet	3,400 In Stock	1 : $3.05 10 : $20.30 100 : $156.00 500 : $705.00 1,000 : $1,220.00 2,000 : $2,300.00 5,000 : $5,600.00 Tube	Tube	Active	6-SOIC (0.173", 4.40mm Width), 5 Leads	Transistor	Surface Mount	-55°C ~ 100°C	1.5V	DC	8mA	3750Vrms	20% @ 16mA	-	50% @ 16mA	6-SO	20V	200ns, 600ns	-	-	1	25 mA	-

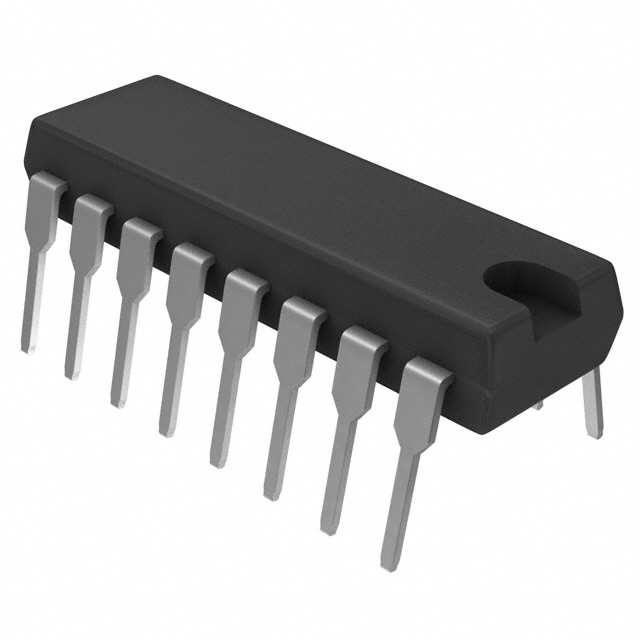

ACPL-844-000E OPTOISOLATOR 5KV 4CH TRANS 16DIP Broadcom Datasheet	3,796 In Stock	1 : $2.04 25 : $34.00 100 : $105.00 500 : $475.00 1,000 : $810.00 2,000 : $1,540.00 5,000 : $3,750.00 10,000 : $7,400.00 Tube	Tube	Active	16-DIP (0.300", 7.62mm)	Transistor	Through Hole	-30°C ~ 100°C	1.2V	AC, DC	50mA	5000Vrms	20% @ 1mA	200mV	300% @ 1mA	16-DIP	70V	-	4µs, 3µs	-	4	50 mA	-
8302401EA OPTOISO 1.5KV 4CH DARLNG 16-DIP Broadcom Datasheet	217 In Stock	1 : $106.36 25 : $2,474.75 100 : $9,705.00 Tube	Tube	Active	16-DIP (0.300", 7.62mm)	Darlington	Through Hole	-55°C ~ 125°C	1.4V	DC	40mA	1500VDC	200% @ 5mA	110mV	-	16-DIP	20V	2µs, 8µs	-	-	4	10 mA	-
8302401EC OPTOISO 1.5KV 4CH DARLNG 16-DIP Broadcom Datasheet	36 In Stock	1 : $105.93 10 : $985.80 100 : $9,665.00 Tube	Tube	Active	16-DIP (0.300", 7.62mm)	Darlington	Through Hole	-55°C ~ 125°C	1.4V	DC	40mA	1500VDC	200% @ 5mA	110mV	-	16-DIP	20V	2µs, 8µs	-	-	4	10 mA	-

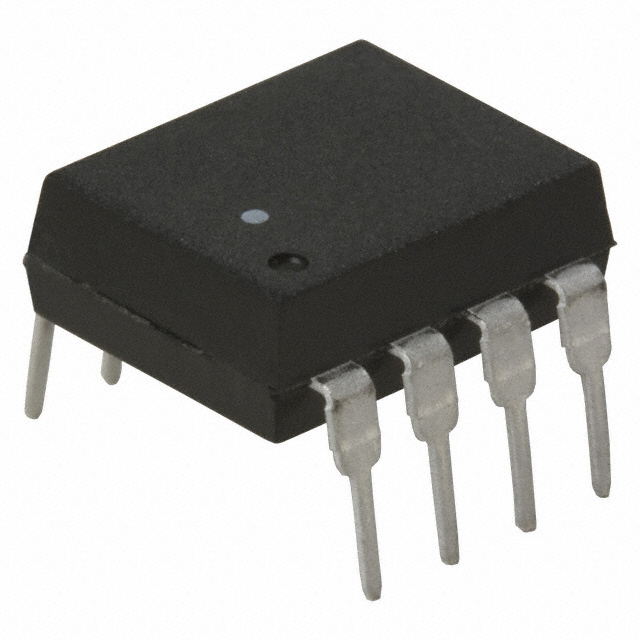

HCNW136-000E OPTOISOLATOR 5KV TRANS 8DIP Broadcom Datasheet	1,006 In Stock	1 : $2.53 42 : $70.56 126 : $163.80 504 : $589.68 1,008 : $1,018.08 2,016 : $1,915.20 5,040 : $4,687.20 10,038 : $9,234.96 Tube	Tube	Active	8-DIP (0.400", 10.16mm)	Transistor with Base	Through Hole	-55°C ~ 85°C	1.68V	DC	8mA	5000Vrms	15% @ 16mA	-	-	8-DIP	20V	1µs, 1µs (Max)	-	-	1	25 mA	-
HCPL-0531-000E OPTOISO 3.75KV 2CH TRANS 8SOIC Broadcom Datasheet	2,684 In Stock	1 : $4.21 10 : $29.80 100 : $244.00 500 : $1,030.00 1,000 : $1,890.00 2,000 : $3,620.00 5,000 : $8,850.00 Tube	Tube	Active	8-SOIC (0.154", 3.90mm Width)	Transistor	Surface Mount	-55°C ~ 100°C	1.5V	DC	8mA	3750Vrms	19% @ 16mA	-	50% @ 16mA	8-SO	20V	200ns, 600ns	-	-	2	25 mA	-
