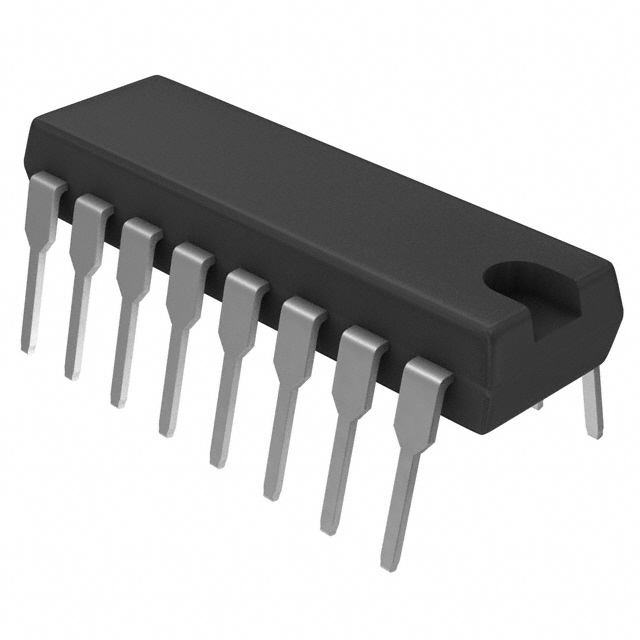

8302401EC _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	8302401EC
Manufacturer	Broadcom
Other Part Numbers	516-3656-ND 516-3656 8302401EC-ND
Description	OPTOISO 1.5KV 4CH DARLNG 16-DIP
Detailed Description	Optoisolator Darlington Output 1500VDC 4 Channel 16-DIP
Manufacturer Standard Lead Time	16 weeks

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Broadcom
Series
Packaging		Tube
Part Status		Active
Package / Case		16-DIP (0.300", 7.62mm)
Output Type		Darlington
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 125°C
Voltage - Forward (Vf) (Typ)		1.4V
Input Type		DC
Current - Output / Channel		40mA
Voltage - Isolation		1500VDC
Current Transfer Ratio (Min)		200% @ 5mA
Vce Saturation (Max)		110mV
Supplier Device Package		16-DIP
Voltage - Output (Max)		20V
Turn On / Turn Off Time (Typ)		2µs, 8µs
Number of Channels		4
Current - DC Forward (If) (Max)		10 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
