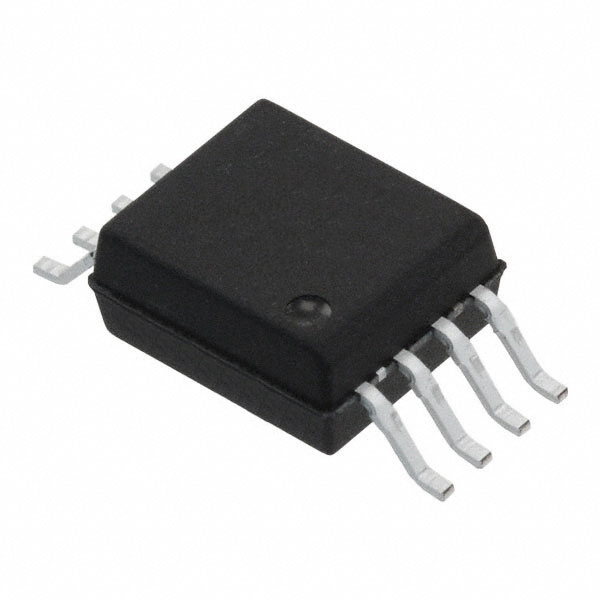

ACPL-K453-000E _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	ACPL-K453-000E
Manufacturer	Broadcom
Other Part Numbers	516-3705-ND ACPL-K453-000E-ND 516-3705
Description	OPTOISOLATOR 5KV TRANSISTOR 8-SO
Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 8-SO Stretched
Manufacturer Standard Lead Time	30 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Broadcom
Series
Packaging		Tube
Part Status		Active
Package / Case		8-SOIC (0.268", 6.81mm Width)
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.5V
Input Type		DC
Current - Output / Channel		8mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		19% @ 16mA
Current Transfer Ratio (Max)		50% @ 16mA
Supplier Device Package		8-SO Stretched
Voltage - Output (Max)		20V
Turn On / Turn Off Time (Typ)		200ns, 600ns
Number of Channels		1
Current - DC Forward (If) (Max)		25 mA

RESOURCE TYPE		LINK
Datasheets		Marking/Labeling Revision B 14/Jan/2014
Datasheets		Multiple Devices Marking/Labeling 07/Aug/2013

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
