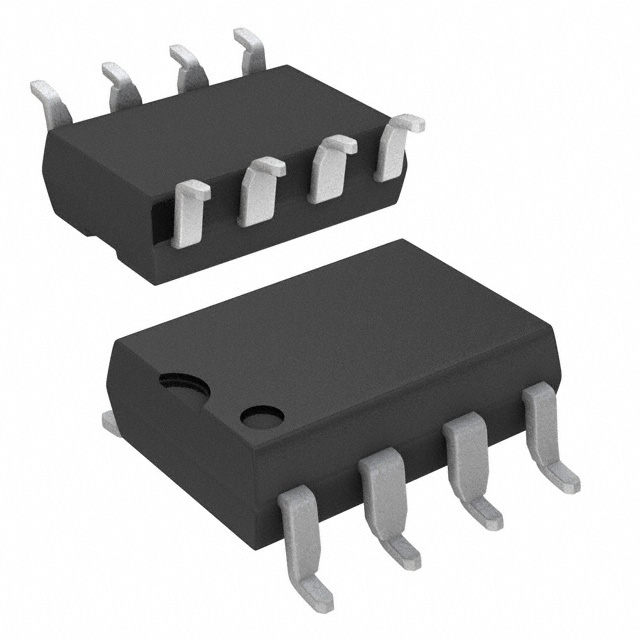

HCPL-3700-300E

HCPL-3700-300E

Part Number	HCPL-3700-300E
Manufacturer	Broadcom
Other Part Numbers	516-1676-5-ND HCPL3700300E 516-1676-5
Description	OPTOISOLATOR 3.75KV DARL 8DIP GW
Detailed Description	Optoisolator Darlington Output 3750Vrms 1 Channel 8-DIP Gull Wing
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Broadcom
Series
Packaging		Tube
Part Status		Active
Package / Case		8-SMD, Gull Wing
Output Type		Darlington
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C
Input Type		AC, DC
Current - Output / Channel		30mA
Voltage - Isolation		3750Vrms
Supplier Device Package		8-DIP Gull Wing
Voltage - Output (Max)		20V
Turn On / Turn Off Time (Typ)		4µs, 10µs
Rise / Fall Time (Typ)		20µs, 0.3µs
Number of Channels		1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Multiple Devices Marking/Labeling 07/Aug/2013
Datasheets		Marking/Labeling Revision B 14/Jan/2014

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1460

Can ship immediately.
