Diode Arrays

Packaging

Bag

Box

Bulk

Cut Tape (CT)

Strip

Tape & Reel (TR)

Tray

Tube

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Speed

Fast Recovery =< 500ns, > 200mA (Io)

No Recovery Time > 500mA (Io)

Small Signal =< 200mA (Io), Any Speed

Standard Recovery >500ns, > 200mA (Io)

Grade

Automotive

Military

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Mounting Type	Speed	Reverse Recovery Time (trr)	Technology	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Supplier Device Package	Operating Temperature - Junction	Grade	Voltage - DC Reverse (Vr) (Max)	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Qualification

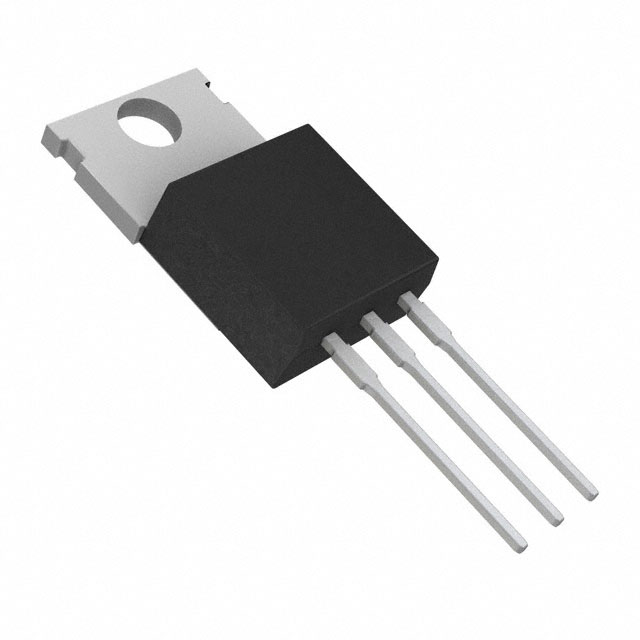

MBR30L60CTG DIODE ARR SCHOTT 60V 15A TO220 Sanyo Semiconductor/onsemi Datasheet	149 In Stock	1 : $1.79 50 : $71.50 100 : $118.00 Tube	SWITCHMODE™	Tube	Obsolete	TO-220-3	Through Hole	Fast Recovery =< 500ns, > 200mA (Io)	-	Schottky	1 Pair Common Cathode	15A	TO-220	-55°C ~ 150°C	-	60 V	620 mV @ 15 A	350 µA @ 60 V	-
MBR16100CTG DIODE ARR SCHOTT 100V 8A TO220 Sanyo Semiconductor/onsemi Datasheet	56 In Stock	1 : $1.94 50 : $78.00 Tube	SWITCHMODE™	Tube	Obsolete	TO-220-3	Through Hole	Fast Recovery =< 500ns, > 200mA (Io)	-	Schottky	1 Pair Common Cathode	8A	TO-220	-65°C ~ 175°C	-	100 V	740 mV @ 8 A	100 µA @ 100 V	-
NTSB20100CTT4G DIODE ARR SCHOTT 100V 10A D2PAK Sanyo Semiconductor/onsemi Datasheet	21 In Stock	1 : $1.19 10 : $9.70 Cut Tape (CT)		Tape & Reel (TR) Cut Tape (CT)	Obsolete	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Surface Mount	Fast Recovery =< 500ns, > 200mA (Io)	-	Schottky	1 Pair Common Cathode	10A	D2PAK	-40°C ~ 150°C	-	100 V	830 mV @ 10 A	17 µA @ 70 V	-
NTSB20100CTG DIODE ARR SCHOTT 100V 10A D2PAK Sanyo Semiconductor/onsemi Datasheet	29 In Stock	1 : $1.54 Tube		Tube	Obsolete	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Surface Mount	Fast Recovery =< 500ns, > 200mA (Io)	-	Schottky	1 Pair Common Cathode	10A	D2PAK	-40°C ~ 150°C	-	100 V	830 mV @ 10 A	17 µA @ 70 V	-
NTSB30U100CTG DIODE ARR SCHOTT 100V 15A D2PAK Sanyo Semiconductor/onsemi Datasheet	27 In Stock	1 : $2.21 Tube		Tube	Obsolete	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Surface Mount	Fast Recovery =< 500ns, > 200mA (Io)	-	Schottky	1 Pair Common Cathode	15A	D2PAK	-40°C ~ 150°C	-	100 V	800 mV @ 15 A	675 µA @ 100 V	-

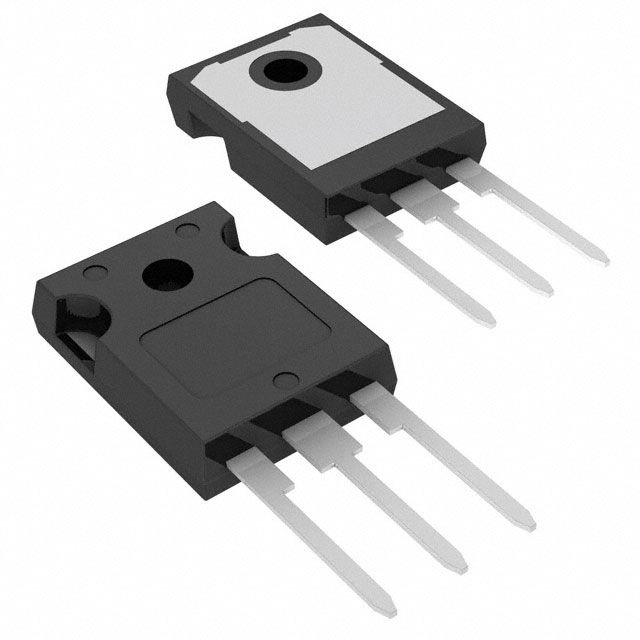

FFSH10120ADN-F155 DIODE ARR SIC 1200V 10A TO247-3 Sanyo Semiconductor/onsemi Datasheet	174 In Stock	1 : $7.96 30 : $190.50 120 : $681.60 Tube		Tube	Last Time Buy	TO-247-3	Through Hole	No Recovery Time > 500mA (Io)	0 ns	SiC (Silicon Carbide) Schottky	1 Pair Common Cathode	10A (DC)	TO-247-3	175°C (Max)	-	1200 V	-	-	-
MBRF30L45CTG DIODE ARR SCHOTT 45V 15A TO220FP Sanyo Semiconductor/onsemi Datasheet	98 In Stock	1 : $1.49 50 : $60.00 Tube	SWITCHMODE™	Tube	Obsolete	TO-220-3 Full Pack	Through Hole	Fast Recovery =< 500ns, > 200mA (Io)	-	Schottky	1 Pair Common Cathode	15A	TO-220FP	-55°C ~ 150°C	-	45 V	500 mV @ 15 A	650 µA @ 45 V	-

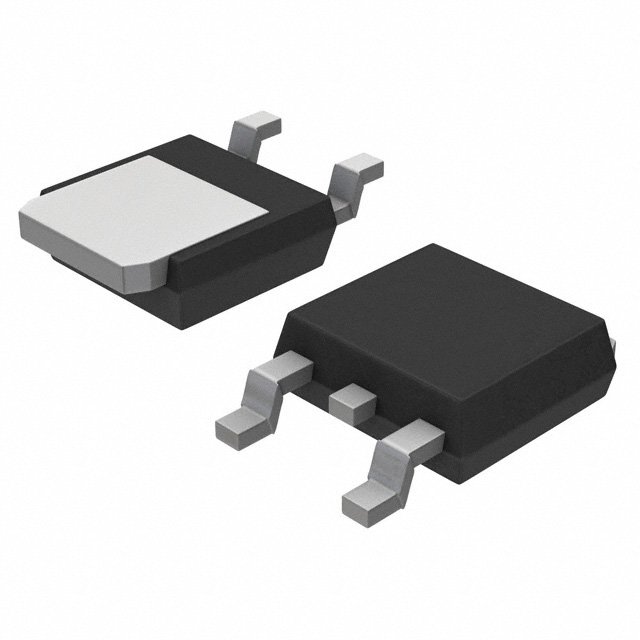

NRVBD640VCTT4G DIODE ARRAY SCHOTTKY 40V 3A DPAK Sanyo Semiconductor/onsemi Datasheet	1,197 In Stock	1 : $1.42 10 : $11.60 100 : $90.00 500 : $385.00 1,000 : $620.00 Cut Tape (CT)	SWITCHMODE™	Tape & Reel (TR) Cut Tape (CT)	Obsolete	TO-252-3, DPAK (2 Leads + Tab), SC-63	Surface Mount	Fast Recovery =< 500ns, > 200mA (Io)	-	Schottky	1 Pair Common Cathode	3A	DPAK	-65°C ~ 175°C	-	40 V	700 mV @ 3 A	100 µA @ 40 V	-
NTST20U100CTG DIODE ARR SCHOTT 100V 10A TO220 Sanyo Semiconductor/onsemi Datasheet	14 In Stock	1 : $1.78 10 : $14.80 Tube		Tube	Obsolete	TO-220-3	Through Hole	Fast Recovery =< 500ns, > 200mA (Io)	-	Schottky	1 Pair Common Cathode	10A	TO-220	-40°C ~ 150°C	-	100 V	790 mV @ 10 A	800 µA @ 100 V	-
NTSV20100CTG DIODE ARR SCHOTT 100V 10A TO220 Sanyo Semiconductor/onsemi Datasheet	49 In Stock	1 : $1.81 Tube		Tube	Last Time Buy	TO-220-3	Through Hole	Fast Recovery =< 500ns, > 200mA (Io)	-	Schottky	1 Pair Common Cathode	10A	TO-220	-40°C ~ 150°C	-	100 V	980 mV @ 10 A	800 µA @ 100 V	-
