Diode Arrays

Packaging

Bag

Box

Bulk

Cut Tape (CT)

Strip

Tape & Reel (TR)

Tray

Tube

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Speed

Fast Recovery =< 500ns, > 200mA (Io)

No Recovery Time > 500mA (Io)

Small Signal =< 200mA (Io), Any Speed

Standard Recovery >500ns, > 200mA (Io)

Grade

Automotive

Military

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Mounting Type	Speed	Reverse Recovery Time (trr)	Technology	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Supplier Device Package	Operating Temperature - Junction	Grade	Voltage - DC Reverse (Vr) (Max)	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Qualification

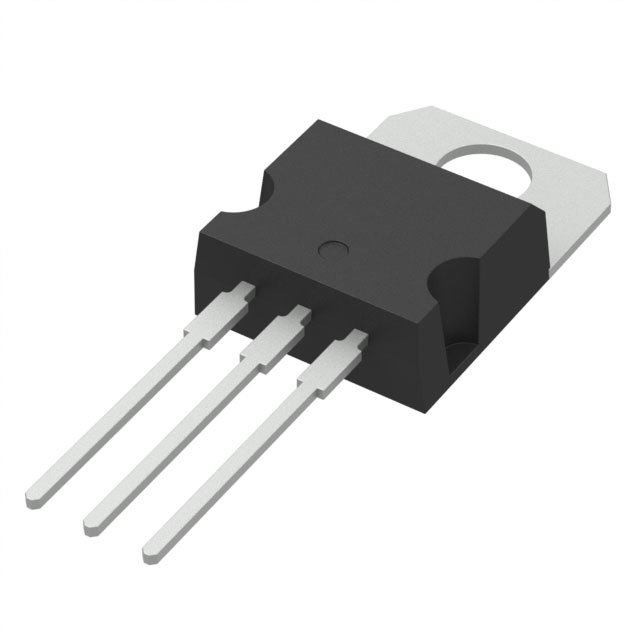

VS-20CTQ150-M3 DIODE ARR SCHOT 150V 10A TO220-3 Vishay General Semiconductor – Diodes Division Datasheet	9,117 In Stock	1 : $1.51 50 : $60.50 100 : $96.00 500 : $405.00 1,000 : $660.00 2,000 : $1,240.00 5,000 : $2,950.00 10,000 : $5,700.00 Tube		Tube	Active	TO-220-3	Through Hole	Fast Recovery =< 500ns, > 200mA (Io)	-	Schottky	1 Pair Common Cathode	10A	TO-220-3	-55°C ~ 175°C	-	150 V	1 V @ 20 A	25 µA @ 150 V	-
FCQS20A045 DIODE ARR SCHOT 45V 20A TO220 FM KYOCERA AVX Datasheet	979 In Stock	1 : $1.53 50 : $61.50 100 : $97.00 500 : $415.00 1,000 : $670.00 2,000 : $1,260.00 5,000 : $3,000.00 10,000 : $5,700.00 Tube		Tube	Active	TO-220-3 Full Pack	Through Hole	Fast Recovery =< 500ns, > 200mA (Io)	-	Schottky	-	20A	TO-220 Full-Mold	-40°C ~ 150°C	-	45 V	570 mV @ 10 A	600 µA @ 45 V	-
SBCT30150 DIODE ARR SCHOT 150V 15A TO220AB Diotec Semiconductor Datasheet	3,700 Marketplace	1,250 : $2,837.50 2,500 : $3,800.00 5,000 : $5,600.00 10,000 : $11,100.00 Tube		Tube	Active	TO-220-3	Through Hole	Fast Recovery =< 500ns, > 200mA (Io)	-	Schottky	1 Pair Common Cathode	15A	TO-220AB	-50°C ~ 150°C	-	150 V	850 mV @ 15 A	10 µA @ 150 V	-
SK3045CD2-3G DIODE ARR SCHOTT 45V 15A TO263AB Diotec Semiconductor Datasheet	750 Marketplace	250 : $695.00 500 : $810.00 1,000 : $1,020.00 2,000 : $2,020.00 Tube		Tube	Active	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Surface Mount	Fast Recovery =< 500ns, > 200mA (Io)	-	Schottky	1 Pair Common Cathode	15A	TO-263AB (D2PAK)	-50°C ~ 150°C	-	45 V	520 mV @ 15 A	100 µA @ 45 V	-
30CTQ045 DIODE ARR SCHOTT 45V 15A TO263AB Diotec Semiconductor Datasheet	1,000 Marketplace	250 : $987.50 500 : $1,235.00 1,000 : $1,690.00 2,000 : $3,360.00 Tube		Tube	Active	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Surface Mount	Fast Recovery =< 500ns, > 200mA (Io)	-	Schottky	1 Pair Common Cathode	15A	TO-263AB (D2PAK)	-50°C ~ 175°C	-	45 V	620 mV @ 15 A	50 µA @ 45 V	-
DD200KB160 DIODE MODULE GP 1600V 200A SANREX Datasheet	34 In Stock	1 : $65.69 10 : $595.30 25 : $1,437.00 80 : $4,269.60 Tray		Tray	Active	Module	Chassis Mount	Standard Recovery >500ns, > 200mA (Io)	-	Standard	1 Pair Series Connection	200A	-	-40°C ~ 150°C	-	1600 V	1.3 V @ 620 A	50 mA @ 1600 V	-

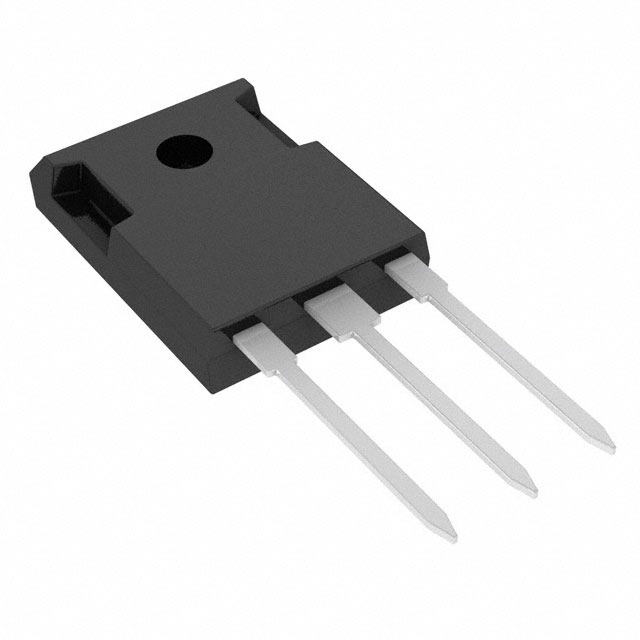

PCDH20120CCG1_T0_00601 DIODE ARR SIC 1200V 10A TO247AD PANJIT Datasheet	1,495 In Stock	1 : $13.15 10 : $115.90 100 : $1,002.00 500 : $4,540.00 Tube		Tube	Active	TO-247-3	Through Hole	No Recovery Time > 500mA (Io)	0 ns	SiC (Silicon Carbide) Schottky	1 Pair Common Cathode	10A (DC)	TO-247AD	-55°C ~ 175°C	-	1200 V	1.7 V @ 10 A	100 µA @ 1200 V	-
PD250KN8A DIODE MODULE GP 800V 250A KYOCERA AVX Datasheet	40 In Stock	1 : $146.26 42 : $5,537.28 Bulk		Bulk	Active	Module	Chassis Mount	Standard Recovery >500ns, > 200mA (Io)	-	Standard	1 Pair Series Connection	250A	Module	-40°C ~ 150°C	-	800 V	1.57 V @ 800 A	17 mA @ 800 V	-
VX6045C-M3/P DIODE ARR SCHOTT 45V 30A TO220AB Vishay General Semiconductor – Diodes Division Datasheet	875 In Stock	1 : $1.88 50 : $75.50 100 : $124.00 500 : $525.00 1,000 : $890.00 2,000 : $1,700.00 5,000 : $4,050.00 10,000 : $7,900.00 Tube		Tube	Active	TO-220-3	Through Hole	Fast Recovery =< 500ns, > 200mA (Io)	-	Schottky	1 Pair Common Cathode	30A	TO-220AB	-40°C ~ 150°C	Automotive	45 V	590 mV @ 30 A	900 µA @ 45 V	AEC-Q101
VX60M153PW-M3/P DIODE ARR SCHOT 150V 30A TO247AD Vishay General Semiconductor – Diodes Division Datasheet	325 In Stock	1 : $3.12 25 : $61.75 100 : $212.00 500 : $940.00 1,000 : $1,610.00 2,000 : $3,040.00 5,000 : $7,300.00 Bulk	TMBS®	Bulk	Active	TO-247-3	Through Hole	Fast Recovery =< 500ns, > 200mA (Io)	-	Schottky	1 Pair Common Cathode	30A	TO-247AD	-40°C ~ 175°C	Automotive	150 V	1.07 V @ 30 A	250 µA @ 150 V	AEC-Q101
