NTSB20100CTG

Part Number
NTSB20100CTG
Manufacturer Sanyo Semiconductor/onsemi
Other Part Numbers
NTSB20100CTGOS-ND
NTSB20100CTG-ND
2156-NTSB20100CTG-OS
ONSONSNTSB20100CTG
NTSB20100CTGOS
Description DIODE ARR SCHOTT 100V 10A D2PAK
Detailed Description Diode Array 1 Pair Common Cathode 100 V 10A Surface Mount TO-263-3, D2PAK (2 Leads + Tab), TO-263AB

Product Attributes

Category
Manufacturer Sanyo Semiconductor/onsemi
Series
Packaging
Tube
Part Status Obsolete

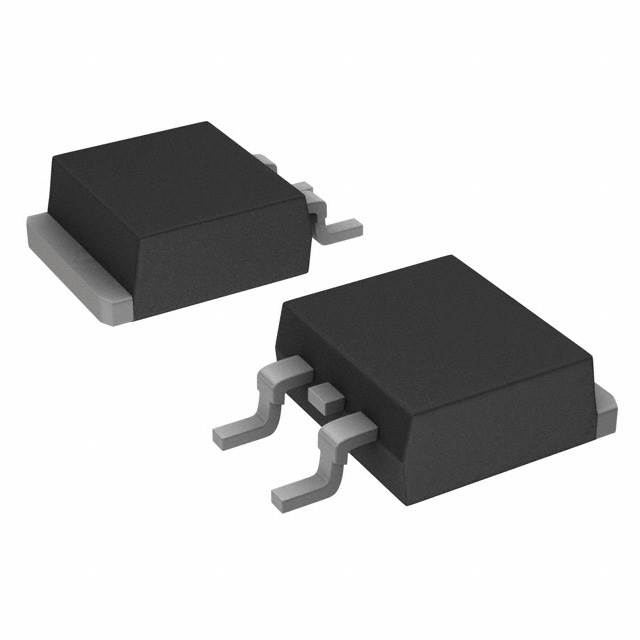

Package / Case TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type Surface Mount
Speed Fast Recovery =< 500ns, > 200mA (Io)
Technology Schottky
Diode Configuration 1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode) 10A
Supplier Device Package D2PAK
Operating Temperature - Junction -40°C ~ 150°C
Voltage - DC Reverse (Vr) (Max) 100 V
Voltage - Forward (Vf) (Max) @ If 830 mV @ 10 A
Current - Reverse Leakage @ Vr 17 µA @ 70 V

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
