Common Mode Chokes

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Features

A2B

ESD

Industrial

PFC

TVS Diode ESD Protection

Filter Type

Power, Signal Line

Power Line

Signal Line

Mounting Type

Chassis Mount

DIN Rail

Surface Mount

Surface Mount, Wettable Flank

Through Hole

Wire Lead

Number of Lines

Ratings

AEC-Q200

Grade

Automotive

Qualification

AEC-Q200

Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Package / Case	Filter Type	Size / Dimension	Mounting Type	Number of Lines	Operating Temperature	Approval Agency	Ratings	Height (Max)	Voltage Rating - AC	Voltage Rating - DC	Current Rating (Max)	DC Resistance (DCR) (Max)	Grade	Inductance @ Frequency	Impedance @ Frequency	Qualification

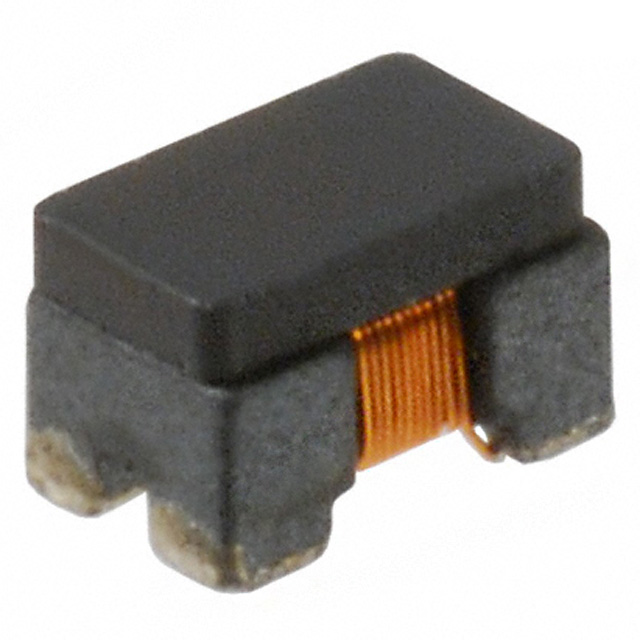

CLCC2V3216-600-R IND COMMON MODE LAN AUTO TRANSF PowerStor (Eaton) Datasheet	100 In Stock	14,000 : $1,400.00 28,000 : $2,520.00 70,000 : $6,300.00 Tape & Reel (TR)	CLC	Tape & Reel (TR) Cut Tape (CT)	Active	-	Horizontal, 4 PC Pad	Signal Line	0.134" L x 0.063" W (3.40mm x 1.60mm)	Surface Mount	2	-40°C ~ 85°C	-	-	0.087" (2.20mm)	-	50V	200mA	1.7Ohm	-	60 µH @ 100 kHz	-	-

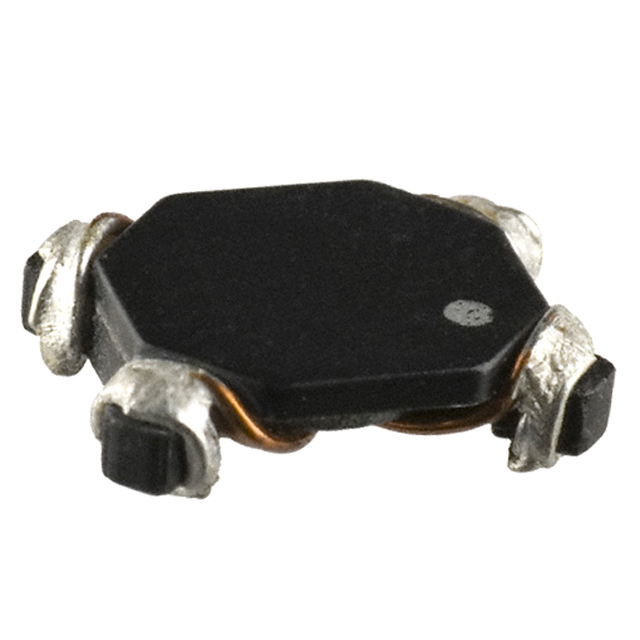

CMS1-9-R CMC 62UH 1.9A 2LN SMD PowerStor (Eaton) Datasheet	0 In Stock	2,000 : $3,420.00 Tape & Reel (TR)	CMS	Tape & Reel (TR)	Active	-	Horizontal, 4 PC Pad	Power Line	0.370" L x 0.283" W (9.40mm x 7.20mm)	Surface Mount	2	-40°C ~ 160°C	-	-	0.102" (2.60mm)	-	-	1.9A	35mOhm (Typ)	-	62 µH @ 100 kHz	-	-
ACE2V3225-201-R CMC 200UH 70MA 2LN 9.5KOHM SMD PowerStor (Eaton) Datasheet	2,805 In Stock	2,000 : $620.00 4,000 : $1,200.00 6,000 : $1,740.00 10,000 : $2,800.00 Tape & Reel (TR)	ACE2V3225	Tape & Reel (TR) Cut Tape (CT)	Active	-	Horizontal, 4 PC Pad	Signal Line	0.130" L x 0.098" W (3.30mm x 2.50mm)	Surface Mount	2	-40°C ~ 125°C	-	AEC-Q200	0.098" (2.50mm)	-	50V	70mA	5.5Ohm	-	200 µH @ 100 kHz	9.5 kOhms @ 10 MHz	-
ECMS1V0704-701-R CMC 4A 2LN 700 OHM SMD PowerStor (Eaton) Datasheet	2,405 In Stock	1,500 : $735.00 3,000 : $1,410.00 7,500 : $3,375.00 10,500 : $4,620.00 Tape & Reel (TR)	ECMS1V0704	Tape & Reel (TR) Cut Tape (CT)	Active	-	Horizontal, 4 PC Pad	Power Line	0.295" L x 0.236" W (7.50mm x 6.00mm)	Surface Mount	2	-40°C ~ 125°C	-	-	0.150" (3.80mm)	-	80V	4A	15mOhm	-	-	700 Ohms @ 100 MHz	-
ECMS1V0905-301-R CMC 6A 2LN 300 OHM SMD PowerStor (Eaton) Datasheet	670 In Stock	700 : $378.00 Tape & Reel (TR)	ECMS1V0905	Tape & Reel (TR) Cut Tape (CT)	Active	-	Horizontal, 4 PC Pad	Power Line	0.374" L x 0.276" W (9.50mm x 7.00mm)	Surface Mount	2	-40°C ~ 125°C	-	-	0.189" (4.80mm)	-	80V	6A	6mOhm	-	-	300 Ohms @ 100 MHz	-
ACE1V2012-121-R CMC 370MA 2LN 120OHM SMD AECQ200 PowerStor (Eaton) Datasheet	1,755 In Stock	2,000 : $700.00 4,000 : $1,360.00 6,000 : $1,980.00 10,000 : $3,200.00 Tape & Reel (TR)	ACE1V2012	Tape & Reel (TR) Cut Tape (CT)	Active	-	Horizontal, 4 PC Pad	Signal Line	0.079" L x 0.047" W (2.00mm x 1.20mm)	Surface Mount	2	-40°C ~ 105°C	-	AEC-Q200	0.055" (1.40mm)	-	50V	370mA	300mOhm	-	-	120 Ohms @ 100 MHz	-
ACE1V4532-510-R CMC 51UH 200MA 2LN 2KOHM SMD PowerStor (Eaton) Datasheet	4,255 In Stock	500 : $180.00 1,000 : $320.00 2,500 : $775.00 5,000 : $1,500.00 12,500 : $3,625.00 25,000 : $7,000.00 Tape & Reel (TR)	ACE1V4532	Tape & Reel (TR) Cut Tape (CT)	Active	-	Horizontal, 4 PC Pad	Signal Line	0.177" L x 0.126" W (4.50mm x 3.20mm)	Surface Mount	2	-40°C ~ 125°C	-	AEC-Q200	0.118" (3.00mm)	-	50V	200mA	1Ohm	-	51 µH @ 100 kHz	2 kOhms @ 10 MHz	-
ACE1V3225-110-R CMC 11UH 300MA 2LN 500OHM SMD PowerStor (Eaton) Datasheet	3,550 In Stock	1,000 : $380.00 3,000 : $1,110.00 5,000 : $1,750.00 10,000 : $3,400.00 25,000 : $8,250.00 Tape & Reel (TR)	ACE1V3225	Tape & Reel (TR) Cut Tape (CT)	Active	-	Horizontal, 4 PC Pad	Signal Line	0.126" L x 0.098" W (3.20mm x 2.50mm)	Surface Mount	2	-40°C ~ 125°C	-	AEC-Q200	0.098" (2.50mm)	-	80V	300mA	400mOhm	-	11 µH @ 100 kHz	500 Ohms @ 10 MHz	-
ACE1V3225-101-R CMC 100UH 150MA 2LN 5.1KOHM SMD PowerStor (Eaton) Datasheet	4,283 In Stock	1,000 : $360.00 3,000 : $1,050.00 5,000 : $1,700.00 10,000 : $3,300.00 25,000 : $8,000.00 Tape & Reel (TR)	ACE1V3225	Tape & Reel (TR) Cut Tape (CT)	Active	-	Horizontal, 4 PC Pad	Signal Line	0.126" L x 0.098" W (3.20mm x 2.50mm)	Surface Mount	2	-40°C ~ 125°C	-	AEC-Q200	0.098" (2.50mm)	-	80V	150mA	1.5Ohm	-	100 µH @ 100 kHz	5.1 kOhms @ 10 MHz	-
ACE1V4532-201-R CMC 200UH 100MA 2LN 15KOHM SMD PowerStor (Eaton) Datasheet	682 In Stock	500 : $230.00 1,000 : $410.00 2,500 : $1,000.00 5,000 : $1,900.00 12,500 : $4,625.00 25,000 : $9,000.00 Tape & Reel (TR)	ACE1V4532	Tape & Reel (TR) Cut Tape (CT)	Active	-	Horizontal, 4 PC Pad	Signal Line	0.177" L x 0.126" W (4.50mm x 3.20mm)	Surface Mount	2	-40°C ~ 125°C	-	AEC-Q200	0.118" (3.00mm)	-	50V	100mA	4.5Ohm	-	200 µH @ 100 kHz	15 kOhms @ 10 MHz	-
