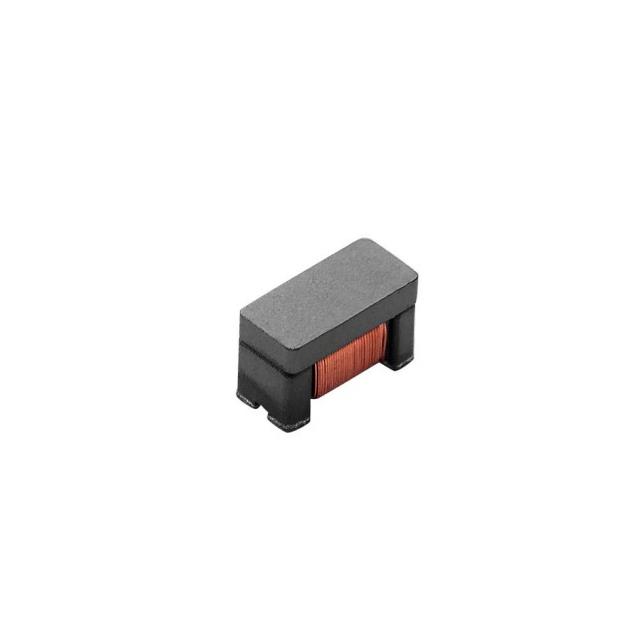

CLCC2V3216-600-R

CLCC2V3216-600-R

Part Number	CLCC2V3216-600-R
Manufacturer	PowerStor (Eaton)
Other Part Numbers	283-CLCC2V3216-600-RTR-ND 283-CLCC2V3216-600-RCT-ND 283-CLCC2V3216-600-RDKR-ND 283-CLCC2V3216-600-RDKR 283-CLCC2V3216-600-RCT 283-CLCC2V3216-600-RTR
Description	IND COMMON MODE LAN AUTO TRANSF
Detailed Description	60 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 200mA DCR 1.7Ohm
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		PowerStor (Eaton)
Series		CLC
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		Horizontal, 4 PC Pad
Filter Type		Signal Line
Size / Dimension		0.134" L x 0.063" W (3.40mm x 1.60mm)
Mounting Type		Surface Mount
Number of Lines		2
Operating Temperature		-40°C ~ 85°C
Height (Max)		0.087" (2.20mm)
Voltage Rating - DC		50V
Current Rating (Max)		200mA
DC Resistance (DCR) (Max)		1.7Ohm
Inductance @ Frequency		60 µH @ 100 kHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CLCC2V3216-600-R

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 100

Can ship immediately.
