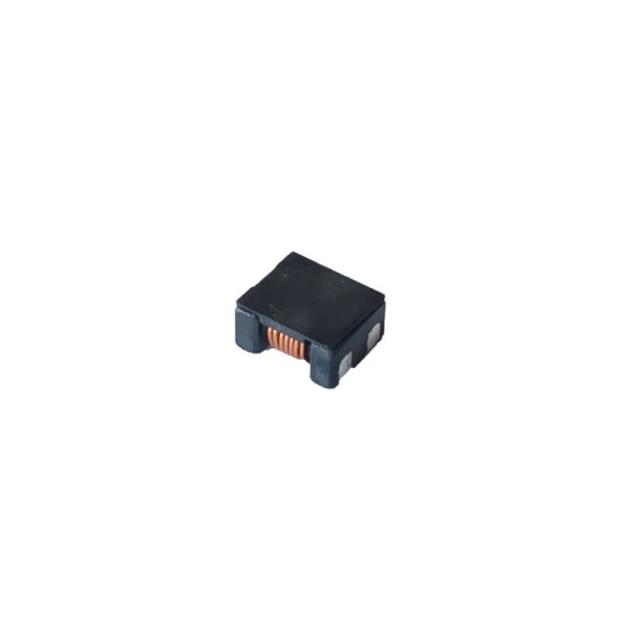

ECMS1V0905-301-R

ECMS1V0905-301-R

Part Number	ECMS1V0905-301-R
Manufacturer	PowerStor (Eaton)
Other Part Numbers	283-ECMS1V0905-301-RTR-ND 283-ECMS1V0905-301-RCT-ND 283-ECMS1V0905-301-RCT -875-ECMS1V0905-301-RCT 283-ECMS1V0905-301-RTR -875-ECMS1V0905-301-RTR-ND -875-ECMS1V0905-301-RTR
Description	CMC 6A 2LN 300 OHM SMD
Detailed Description	2 Line Common Mode Choke Surface Mount 300 Ohms @ 100 MHz 6A DCR 6mOhm
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		PowerStor (Eaton)
Series		ECMS1V0905
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		Horizontal, 4 PC Pad
Filter Type		Power Line
Size / Dimension		0.374" L x 0.276" W (9.50mm x 7.00mm)
Mounting Type		Surface Mount
Number of Lines		2
Operating Temperature		-40°C ~ 125°C
Height (Max)		0.189" (4.80mm)
Voltage Rating - DC		80V
Current Rating (Max)		6A
DC Resistance (DCR) (Max)		6mOhm
Impedance @ Frequency		300 Ohms @ 100 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECMS1V0905-301-R

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 670

Can ship immediately.
