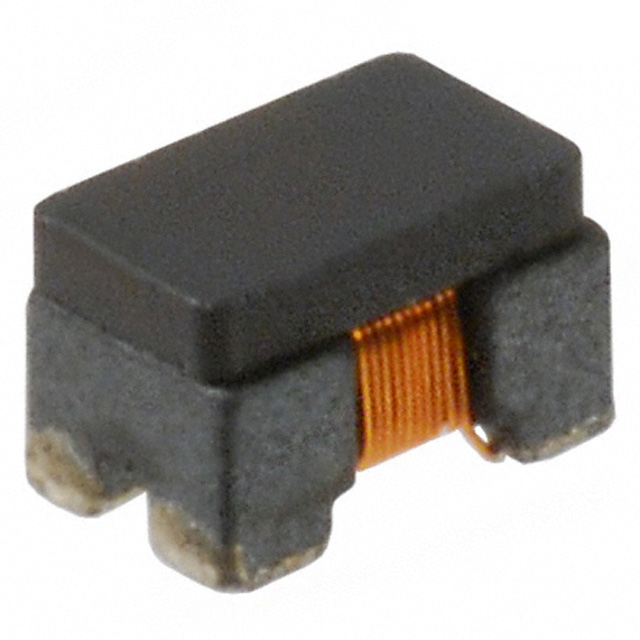

ACE1V3225-101-R

ACE1V3225-101-R

Part Number	ACE1V3225-101-R
Manufacturer	PowerStor (Eaton)
Other Part Numbers	283-ACE1V3225-101-RTR-ND 283-ACE1V3225-101-RCT-ND -875-ACE1V3225-101-RTR-ND -875-ACE1V3225-101-RTR 283-ACE1V3225-101-RCT -875-ACE1V3225-101-RCT 283-ACE1V3225-101-RTR
Description	CMC 100UH 150MA 2LN 5.1KOHM SMD
Detailed Description	100 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 5.1 kOhms @ 10 MHz 150mA DCR 1.5Ohm
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		PowerStor (Eaton)
Series		ACE1V3225
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		Horizontal, 4 PC Pad
Filter Type		Signal Line
Size / Dimension		0.126" L x 0.098" W (3.20mm x 2.50mm)
Mounting Type		Surface Mount
Number of Lines		2
Operating Temperature		-40°C ~ 125°C
Ratings		AEC-Q200
Height (Max)		0.098" (2.50mm)
Voltage Rating - DC		80V
Current Rating (Max)		150mA
DC Resistance (DCR) (Max)		1.5Ohm
Inductance @ Frequency		100 µH @ 100 kHz
Impedance @ Frequency		5.1 kOhms @ 10 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ACE1V3225-101-R

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 4283

Can ship immediately.
