Transistor, Photovoltaic Output Optoisolators

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Output Type

Darlington

Darlington with Base

MOSFET

Photovoltaic

Photovoltaic, Linearized

Transistor

Transistor, Linearized

Transistor with Base

Mounting Type

DIN Rail

Surface Mount

Surface Mount, Butt Joint

Through Hole

Input Type

AC, DC

Grade

Automotive

Number of Channels

Qualification

AEC-Q100

AEC-Q101

AEC-Q102

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Output Type	Mounting Type	Operating Temperature	Voltage - Forward (Vf) (Typ)	Input Type	Current - Output / Channel	Voltage - Isolation	Current Transfer Ratio (Min)	Vce Saturation (Max)	Current Transfer Ratio (Max)	Supplier Device Package	Voltage - Output (Max)	Turn On / Turn Off Time (Typ)	Rise / Fall Time (Typ)	Grade	Number of Channels	Current - DC Forward (If) (Max)	Qualification
ACPL-M50L-560E OPTOISOLATOR 3.75KV TRANS 5-SO Broadcom Datasheet	5,709 In Stock	1,500 : $1,575.00 3,000 : $2,970.00 7,500 : $7,275.00 10,500 : $9,975.00 Tape & Reel (TR)		Tape & Reel (TR) Cut Tape (CT)	Active	6-SOIC (0.173", 4.40mm Width), 5 Leads	Transistor	Surface Mount	-40°C ~ 105°C	1.5V	DC	8mA	3750Vrms	100% @ 3mA	-	200% @ 3mA	5-SO	24V	200ns, 380ns	-	-	1	20 mA	-

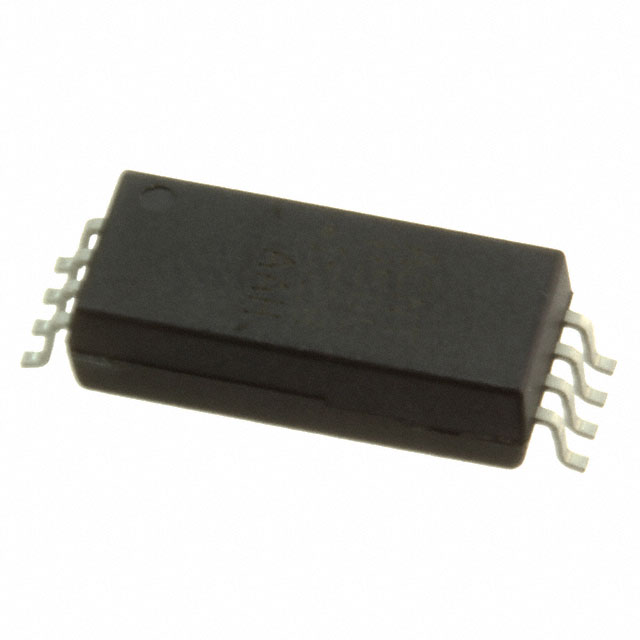

ACNT-H511-000E 15MM OPTOCOUPLER (1MBD) Broadcom Datasheet	0 In Stock	1 : $5.26 80 : $244.00 560 : $1,439.20 1,040 : $2,454.40 2,000 : $4,520.00 Bulk		Bulk	Active	8-SOIC (0.535", 13.60mm Width)	Transistor	Surface Mount	-40°C ~ 105°C	1.45V	DC	12mA	7500Vrms	31% @ 12mA	-	80% @ 12mA	8-SO Stretched	24V	150ns, 400ns	-	-	1	20 mA	-

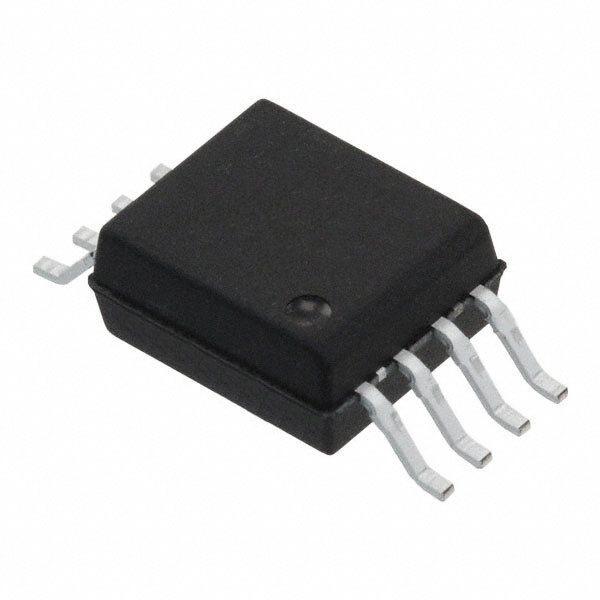

ACPL-K49T-560E OPTOISOLATOR 5KV TRANSISTOR Broadcom Datasheet	6,000 In Stock	1,000 : $1,630.00 2,000 : $3,120.00 5,000 : $7,650.00 Tape & Reel (TR)		Tape & Reel (TR) Cut Tape (CT)	Active	8-SOIC (0.268", 6.81mm Width)	Transistor	Surface Mount	-40°C ~ 125°C	1.5V	DC	8mA	5000Vrms	32% @ 10mA	-	100% @ 10mA	8-SO Stretched	20V	20µs, 20µs (Max)	-	-	1	20 mA	-

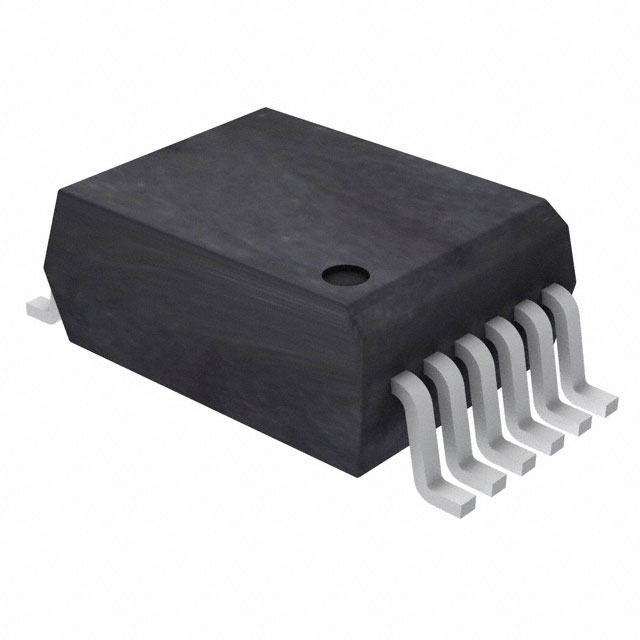

ACFL-5212T-500E OPTOISO 5KV 2CH TRANS Broadcom Datasheet	3,000 In Stock	1,000 : $1,800.00 2,000 : $3,460.00 5,000 : $8,500.00 Tape & Reel (TR)	R²Coupler™	Tape & Reel (TR)	Active	12-BSOP (0.295", 7.50mm Width)	Transistor	Surface Mount	-40°C ~ 125°C	1.5V	DC	8mA	5000Vrms	32% @ 10mA	-	100% @ 10mA	12-SO	20V	20µs, 20µs (Max)	-	Automotive	2	20 mA	AEC-Q100

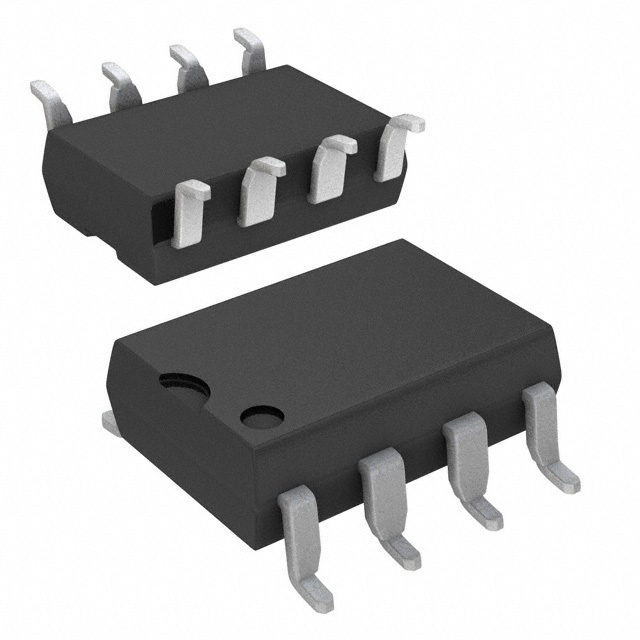

HCPL-5501#300 OPTOISO 1.5KV TRANS W/BASE 8SMD Broadcom Datasheet	0 In Stock	46 : $4,109.18 Bulk		Bulk	Active	8-SMD, Gull Wing	Transistor with Base	Surface Mount	-55°C ~ 125°C	1.55V	DC	8mA	1500VDC	9% @ 16mA	-	-	8-SMD	20V	400ns, 1µs	-	-	1	20 mA	-
ACPL-6750L HERMETIC OPTOCOUPLER Broadcom Datasheet	28 In Stock	1 : $141.87 10 : $1,364.10 Tray		Tray	Active	8-SMD Butt Joint	Darlington	Surface Mount	-55°C ~ 125°C	1.4V	DC	40mA	1500VDC	200% @ 5mA	110mV	-	8-DIP Butt Joint	20V	2µs, 6µs	-	-	1	10 mA	-

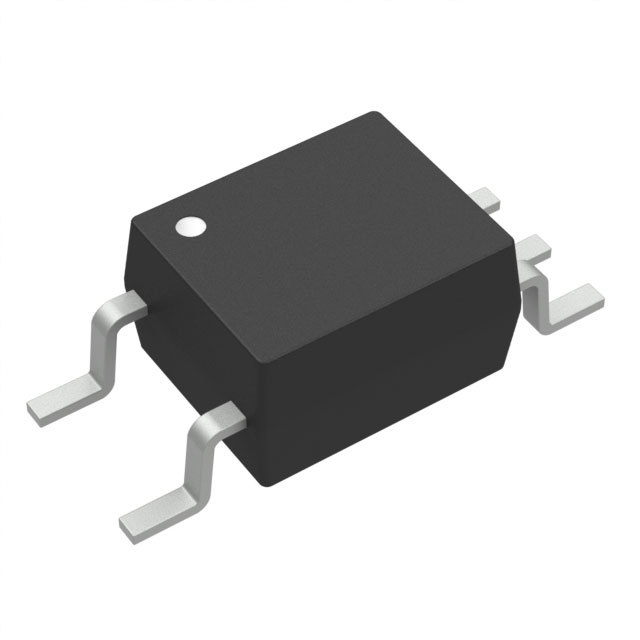

HCPL-817-500E OPTOISOLATOR 5KV TRANSISTOR 4SMD Broadcom Datasheet	41,817 In Stock	1,000 : $180.00 2,000 : $320.00 5,000 : $750.00 10,000 : $1,400.00 25,000 : $3,500.00 50,000 : $7,000.00 Tape & Reel (TR)		Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, Gull Wing	Transistor	Surface Mount	-30°C ~ 100°C	1.2V	DC	50mA	5000Vrms	50% @ 5mA	200mV	600% @ 5mA	-	70V	-	4µs, 3µs	-	1	50 mA	-
HCPL-817-W6LE OPTOISOLATOR 5KV TRANSISTOR 4DIP Broadcom Datasheet	0 In Stock	25,000 : $4,000.00 Tube		Tube	Active	4-DIP (0.400", 10.16mm)	Transistor	Through Hole	-30°C ~ 100°C	1.2V	DC	50mA	5000Vrms	50% @ 5mA	200mV	100% @ 5mA	4-DIP	70V	-	4µs, 3µs	-	1	50 mA	-
HCPL-814-50AE OPTOISOLATOR 5KV TRANSISTOR 4SMD Broadcom Datasheet	23,000 In Stock	1,000 : $220.00 2,000 : $400.00 5,000 : $900.00 10,000 : $1,800.00 25,000 : $4,250.00 50,000 : $8,500.00 Tape & Reel (TR)		Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, Gull Wing	Transistor	Surface Mount	-30°C ~ 100°C	1.2V	AC, DC	50mA	5000Vrms	50% @ 1mA	200mV	150% @ 1mA	4-SMD	35V	-	4µs, 3µs	-	1	50 mA	-

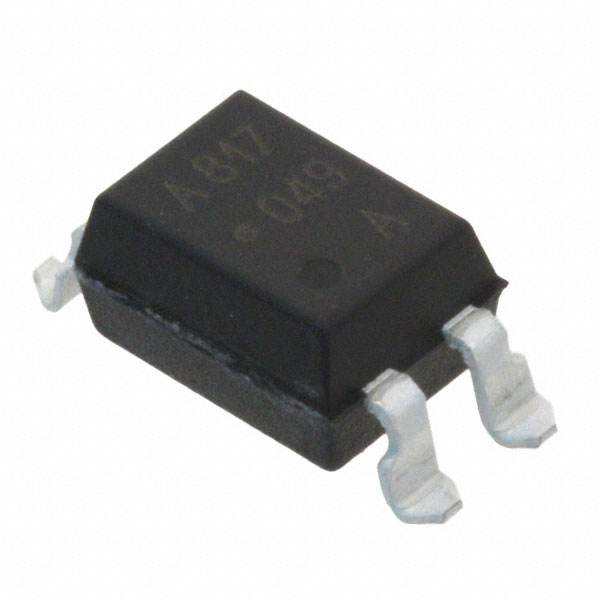

HCPL-817-56BE OPTOISOLATOR 5KV TRANSISTOR 4SMD Broadcom Datasheet	77,894 In Stock	1,000 : $150.00 Tape & Reel (TR)		Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, Gull Wing	Transistor	Surface Mount	-30°C ~ 100°C	1.2V	DC	50mA	5000Vrms	130% @ 5mA	200mV	260% @ 5mA	4-SMD	70V	-	4µs, 3µs	-	1	50 mA	-
