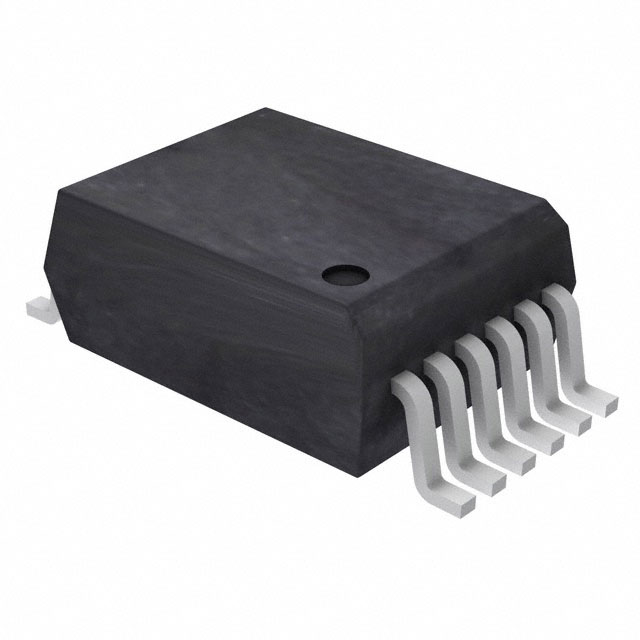

ACFL-5212T-500E _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	ACFL-5212T-500E
Manufacturer	Broadcom
Other Part Numbers	516-ACFL-5212T-500ETR-ND ACFL-5212T-500E-ND 516-ACFL-5212T-500ETR
Description	OPTOISO 5KV 2CH TRANS
Detailed Description	Optoisolator Transistor Output 5000Vrms 2 Channel 12-SO
Manufacturer Standard Lead Time	30 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Broadcom
Series		R²Coupler™
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		12-BSOP (0.295", 7.50mm Width)
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 125°C
Voltage - Forward (Vf) (Typ)		1.5V
Input Type		DC
Current - Output / Channel		8mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		32% @ 10mA
Current Transfer Ratio (Max)		100% @ 10mA
Supplier Device Package		12-SO
Voltage - Output (Max)		20V
Turn On / Turn Off Time (Typ)		20µs, 20µs (Max)
Grade		Automotive
Number of Channels		2
Current - DC Forward (If) (Max)		20 mA
Qualification		AEC-Q100

RESOURCE TYPE		LINK
Datasheets		Test/Saw Site Add 21/Nov/2016

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
