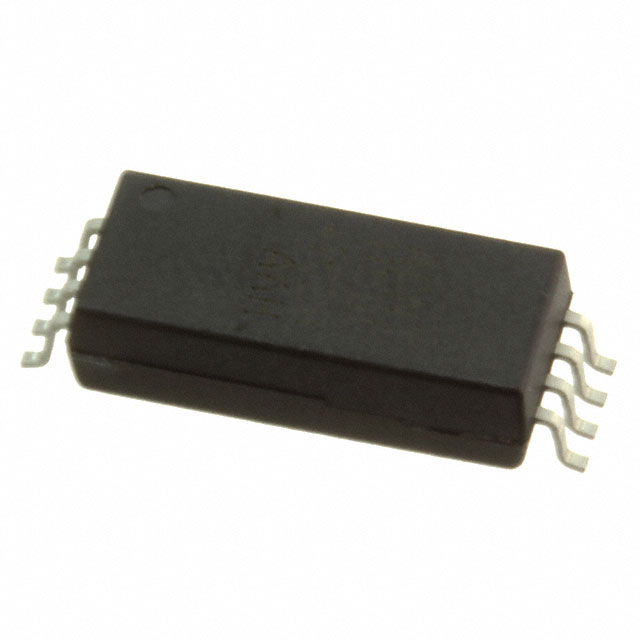

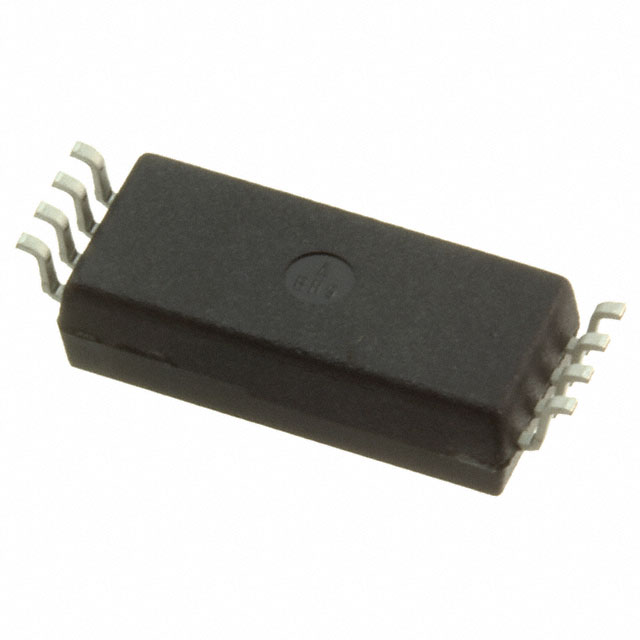

ACNT-H511-000E _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	ACNT-H511-000E
Manufacturer	Broadcom
Other Part Numbers	516-3996-ND 516-3996 ACNT-H511-000E-ND
Description	15MM OPTOCOUPLER (1MBD)
Detailed Description	Optoisolator Transistor Output 7500Vrms 1 Channel 8-SO Stretched
Manufacturer Standard Lead Time	30 weeks

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Broadcom
Series
Packaging		Bulk
Part Status		Active
Package / Case		8-SOIC (0.535", 13.60mm Width)
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 105°C
Voltage - Forward (Vf) (Typ)		1.45V
Input Type		DC
Current - Output / Channel		12mA
Voltage - Isolation		7500Vrms
Current Transfer Ratio (Min)		31% @ 12mA
Current Transfer Ratio (Max)		80% @ 12mA
Supplier Device Package		8-SO Stretched
Voltage - Output (Max)		24V
Turn On / Turn Off Time (Typ)		150ns, 400ns
Number of Channels		1
Current - DC Forward (If) (Max)		20 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
