Switching Converter, SMPS Transformers

Mfr Part #	Quantity	Price	Series	Package	Product Status	Size / Dimension	Mounting Type	Style	Frequency	Type	Operating Temperature	Applications	Voltage - Isolation	Intended Chipset	Voltage - Primary	Voltage - Auxiliary	Footprint	Chipset Manufacturer	Height - Seated (Max)	Inductance @ Frequency	Grade	Qualification

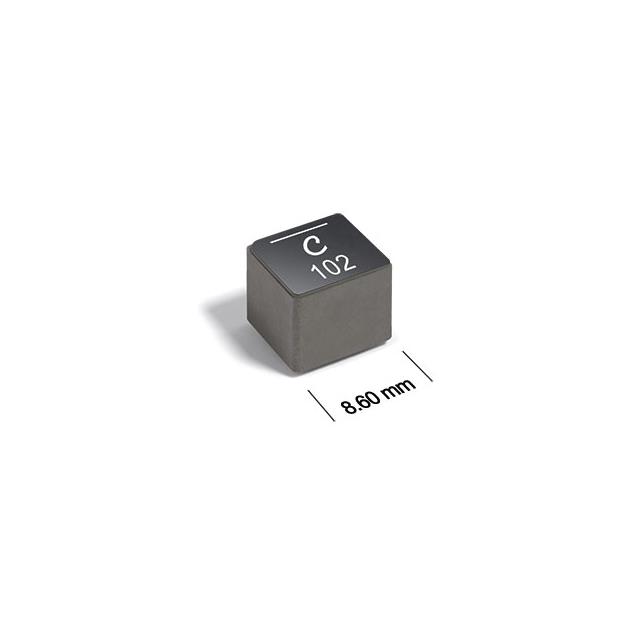

XAL8080-153MED FIXED IND 15UH 9.4A 22.5MOHM SM COILCRAFT Datasheet	1,665 Marketplace	1 : $6.73 450 : $2,470.50 Tape & Reel (TR)	XAL8080	Tape & Reel (TR)	Active	0.339" L x 0.319" W (8.60mm x 8.10mm)	Surface Mount	-	-	Molded	-40°C ~ 125°C	-	-	-	-	-	-	-	0.315" (8.00mm)	-	-	-
XEL4020-222MEC FIXED IND 2.2UH 5.5A 38.7MOHM SM COILCRAFT Datasheet	4,546 Marketplace	1 : $2.55 100 : $224.00 250 : $422.50 500 : $505.00 Tape & Reel (TR)	XEL4020	Tape & Reel (TR)	Active	0.157" L x 0.157" W (4.00mm x 4.00mm)	Surface Mount	-	-	Molded	-40°C ~ 125°C	-	-	-	-	-	-	-	0.083" (2.10mm)	-	-	-

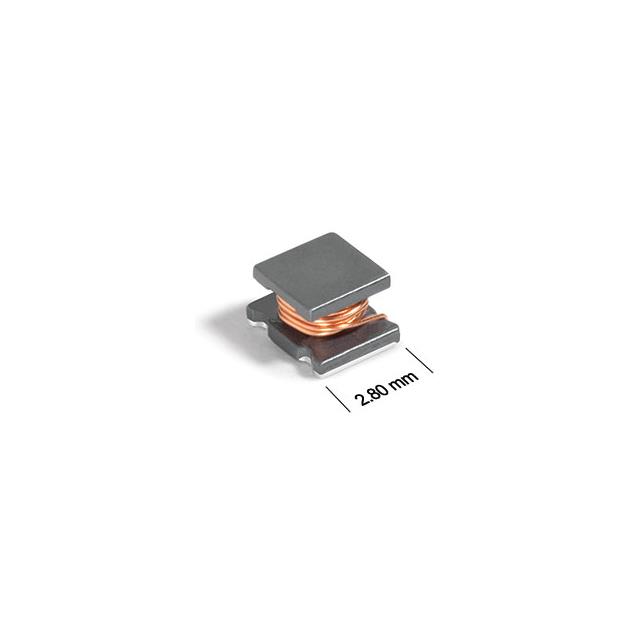

ME3220-472MLC FIXED IND 4.7UH 1.3A 190MOHM SM COILCRAFT Datasheet	7,788 Marketplace	1 : $0.88 250 : $160.00 500 : $245.00 Tape & Reel (TR)	ME3220	Tape & Reel (TR)	Active	0.126" L x 0.110" W (3.20mm x 2.80mm)	Surface Mount	-	-	Wirewound	-40°C ~ 85°C	-	-	-	-	-	-	-	0.094" (2.40mm)	-	-	-

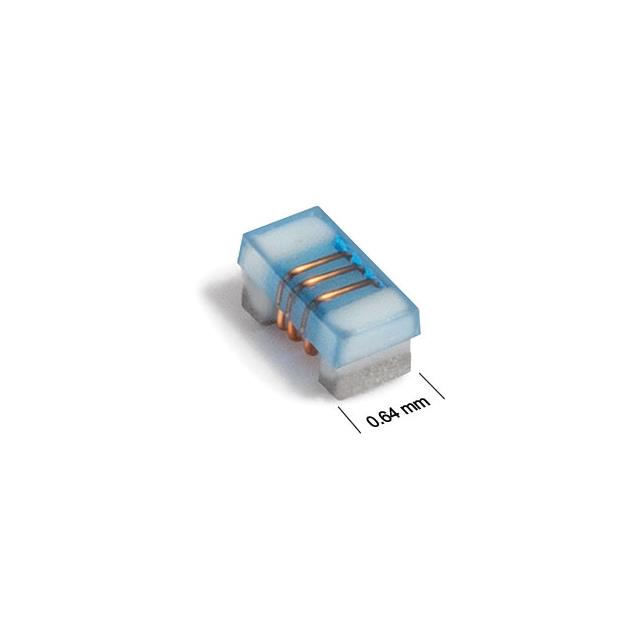

0402CS-8N2XJRW FIXED IND 8.2NH 680MA 100MOHM SM COILCRAFT Datasheet	9,280 Marketplace	1 : $1.58 200 : $228.00 500 : $380.00 Tape & Reel (TR)	0402CS	Tape & Reel (TR)	Active	0.047" L x 0.025" W (1.19mm x 0.64mm)	Surface Mount	-	-	Wirewound	-40°C ~ 125°C	-	-	-	-	-	-	-	0.026" (0.66mm)	-	-	-

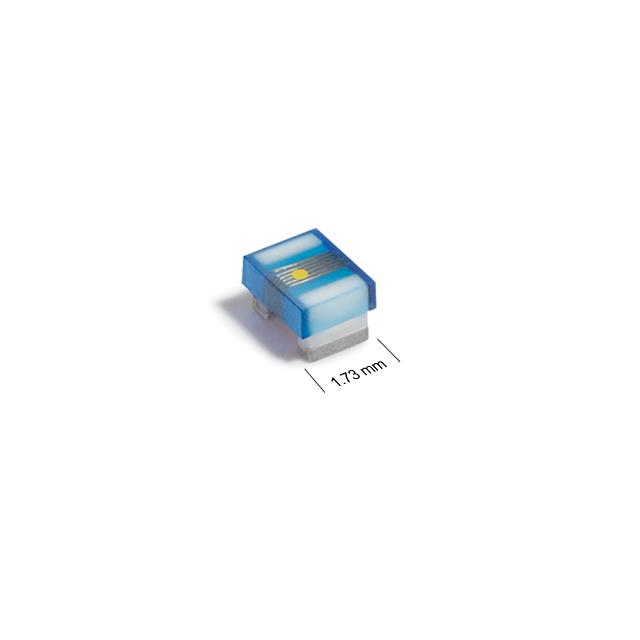

0805CS-330XJRC FIXED IND 33NH 500MA 270MOHM SM COILCRAFT Datasheet	592 Marketplace	1 : $1.05 200 : $170.00 500 : $320.00 Tape & Reel (TR)	0805CS	Tape & Reel (TR)	Active	0.090" L x 0.068" W (2.29mm x 1.73mm)	Surface Mount	-	-	Wirewound	-40°C ~ 125°C	-	-	-	-	-	-	-	0.060" (1.52mm)	-	-	-
LPS4012-684MRC FIXED IND 680UH 135MA 13.5OHM SM COILCRAFT Datasheet	2,502 Marketplace	1 : $1.19 250 : $250.00 500 : $325.00 Tape & Reel (TR)	LPS4012	Tape & Reel (TR)	Active	0.154" L x 0.154" W (3.90mm x 3.90mm)	Surface Mount	-	-	Drum Core	-40°C ~ 85°C	-	-	-	-	-	-	-	0.047" (1.20mm)	-	-	-
MSS1048-823MLC FIXED IND 82UH 1.67A 196MOHM SM COILCRAFT Datasheet	1,320 Marketplace	1 : $2.71 200 : $360.00 Tape & Reel (TR)	MSS1048	Tape & Reel (TR)	Active	0.402" L x 0.394" W (10.20mm x 10.00mm)	Surface Mount	-	-	Drum Core	-40°C ~ 85°C	-	-	-	-	-	-	-	0.201" (5.10mm)	-	-	-

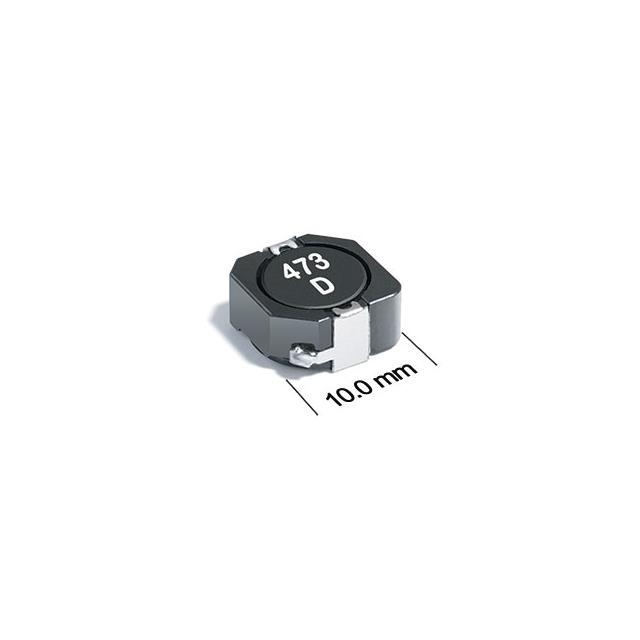

MSS1038-473MLC FIXED IND 47UH 2.2A 128MOHM SM COILCRAFT Datasheet	30 Marketplace	1 : $2.39 250 : $385.00 500 : $470.00 Tape & Reel (TR)	MSS1038	Tape & Reel (TR)	Active	0.402" L x 0.394" W (10.20mm x 10.00mm)	Surface Mount	-	-	Drum Core	-40°C ~ 85°C	-	-	-	-	-	-	-	0.157" (4.00mm)	-	-	-

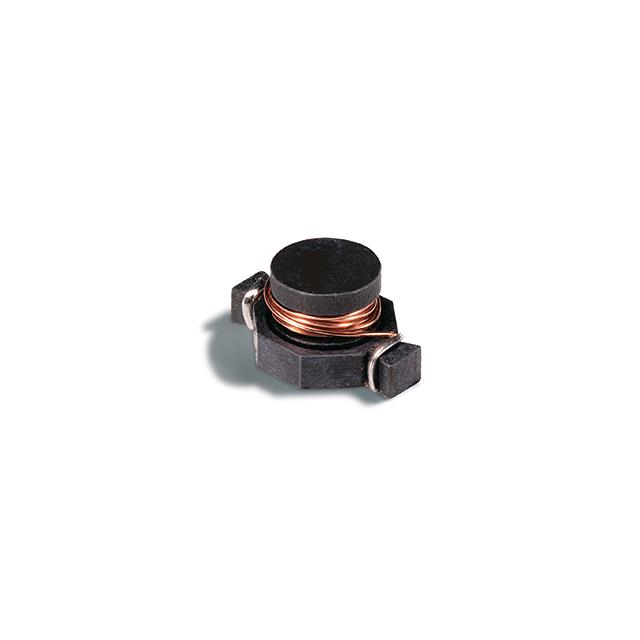

DO1813H-153MLD DO1813H-153 COILCRAFT Datasheet	25,462 Marketplace	1 : $1.30 500 : $505.00 Tape & Reel (TR)	DO1813H	Tape & Reel (TR)	Active	0.350" L x 0.240" W (8.89mm x 6.10mm)	Surface Mount	-	-	Wirewound	-40°C ~ 85°C	-	-	-	-	-	-	-	0.197" (5.00mm)	-	-	-
MSS1038-104MLC FIXED IND 100UH 1.45A 304MOHM SM COILCRAFT Datasheet	3,279 Marketplace	1 : $2.39 250 : $385.00 500 : $470.00 Tape & Reel (TR)	MSS1038	Tape & Reel (TR)	Active	0.402" L x 0.394" W (10.20mm x 10.00mm)	Surface Mount	-	-	Drum Core	-40°C ~ 85°C	-	-	-	-	-	-	-	0.157" (4.00mm)	-	-	-
