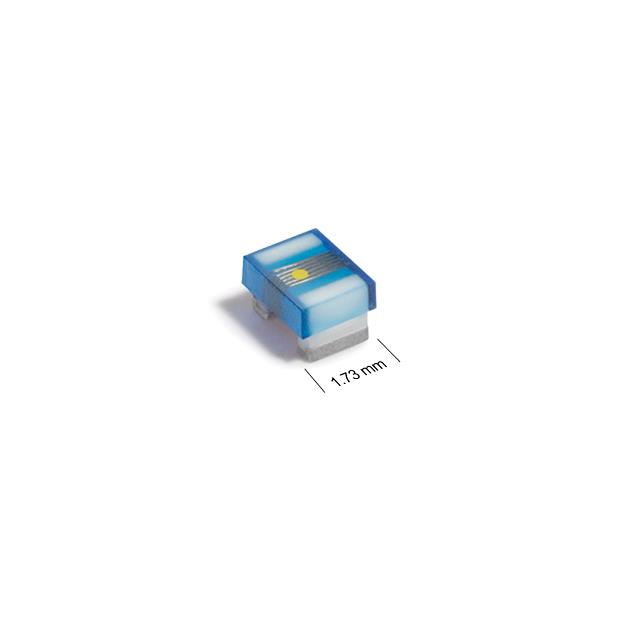

0805CS-330XJRC

Part Number
0805CS-330XJRC
Manufacturer COILCRAFT
Other Part Numbers
2457-0805CS-330XJRC-ND
2457-0805CS-330XJRC
Description FIXED IND 33NH 500MA 270MOHM SM
Detailed Description 33 nH Unshielded Wirewound Inductor 500 mA 270mOhm Max 0805 (2012 Metric)
Datasheet Datasheet

Product Attributes

Category
Manufacturer COILCRAFT
Series
0805CS
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±5%
Package / Case 0805 (2012 Metric)
Size / Dimension 0.090" L x 0.068" W (2.29mm x 1.73mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Wirewound
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 270mOhm Max
Q @ Freq 60 @ 500MHz
Frequency - Self Resonant 2.15GHz
Ratings AEC-Q200
Material - Core Ceramic
Inductance Frequency - Test 250 MHz
Supplier Device Package 0805
Height - Seated (Max) 0.060" (1.52mm)
Inductance 33 nH
Current Rating (Amps) 500 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets 0805CS-330XJRC

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
