Pulse Transformers

Mfr Part #	Quantity	Price	Series	Package	Product Status	Inductance	Size / Dimension	Mounting Type	Operating Temperature	Transformer Type	Turns Ratio - Primary:Secondary	ET (Volt-Time)	Height - Seated (Max)	Grade	Qualification

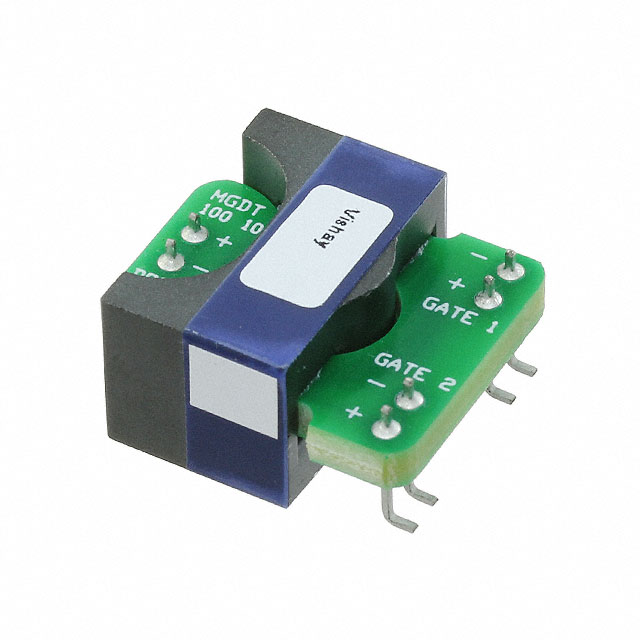

MGDT100100 PLANAR GATE-DRIVE XFMR, 1 : 1 : Vishay / Dale Datasheet	141 In Stock	1 : $12.69 10 : $93.70 25 : $216.25 64 : $535.04 128 : $1,040.64 256 : $2,053.12 448 : $3,552.64 960 : $7,478.40 Tray		Tray	Active	240µH	0.810" L x 0.725" W (20.57mm x 18.42mm)	Through Hole	-55°C ~ 125°C	Gate Drive	1:1:1	-	0.450" (11.43mm)	-	-
MGDT100125 PLANAR GATE-DRIVE XFMR, 1 : 1.25 Vishay / Dale Datasheet	2 In Stock	1 : $12.76 10 : $94.20 25 : $217.50 64 : $538.24 128 : $1,047.04 256 : $2,063.36 448 : $3,570.56 960 : $7,516.80 Tray		Tray	Active	240µH	0.810" L x 0.725" W (20.57mm x 18.42mm)	Through Hole	-55°C ~ 125°C	Gate Drive	1:1.25:1.25	-	0.450" (11.43mm)	-	-
MGDT100100LF PLANAR GATE-DRIVE XFMR, 1 : 1 : Vishay / Dale Datasheet	199 In Stock	1 : $8.75 10 : $70.00 Tray		Tray	Active	240µH	0.810" L x 0.725" W (20.57mm x 18.42mm)	Through Hole	-55°C ~ 125°C	Gate Drive	1:1:1	-	0.450" (11.43mm)	-	-

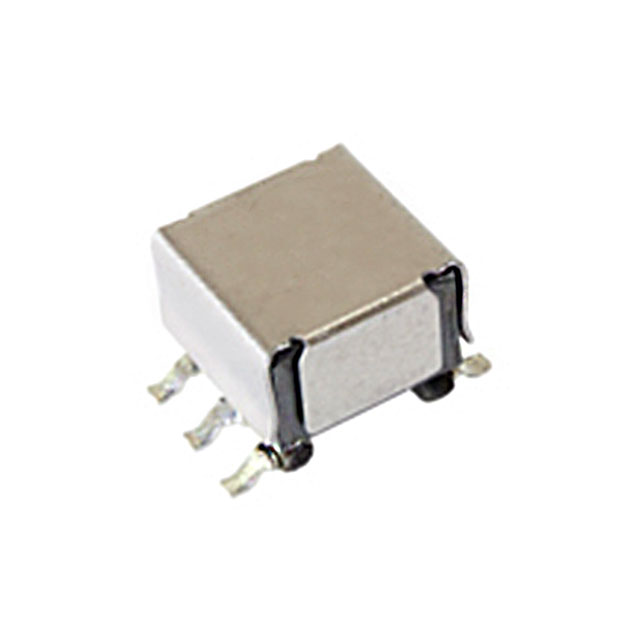

MTBAUGDT250251 TRANSFORMER, GATE DRIVE 5MM, 250 Vishay / Dale Datasheet	46 In Stock	1 : $14.87 10 : $109.80 25 : $253.50 Cut Tape (CT)		Tape & Reel (TR) Cut Tape (CT)	Active	473µH	-	Surface Mount	-55°C ~ 130°C	Gate Drive	2.5:1	30.6VµS	0.220" (5.59mm)	-	-
MGDT100125LF PLANAR GATE-DRIVE XFMR, 1 : 1.25 Vishay / Dale Datasheet	61 In Stock	1 : $12.76 10 : $94.20 25 : $217.50 64 : $538.24 128 : $1,047.04 256 : $2,063.36 448 : $3,570.56 960 : $7,516.80 Tray		Tray	Active	240µH	0.810" L x 0.725" W (20.57mm x 18.42mm)	Through Hole	-55°C ~ 125°C	Gate Drive	1:1.25:1.25	-	0.450" (11.43mm)	-	-
MTBAUGDT125050-LF TRANSFORMER, MICRO GATE DRIVE, 1 Vishay / Dale Datasheet	20 In Stock	50 : $530.00 Tape & Reel (TR)	MTBAUGDT	Tape & Reel (TR) Cut Tape (CT)	Active	330µH	-	Surface Mount	-55°C ~ 130°C	Gate Drive	1:0.5:0.5	63VµS	0.220" (5.59mm)	-	-
MTBAUGDT250101-LF TRANSFORMER, GATE DRIVE 5MM, 250 Vishay / Dale Datasheet	55 In Stock	50 : $674.50 100 : $1,325.00 250 : $3,195.00 500 : $6,155.00 Tape & Reel (TR)	MTBAUGDT	Tape & Reel (TR) Cut Tape (CT)	Active	350µH	-	Surface Mount	-55°C ~ 130°C	Gate Drive	1:1	25.8VµS	0.220" (5.59mm)	-	-
MGDT100125-SM PLANAR GATE-DRIVE XFMR, 1 : 1.25 Vishay / Dale Datasheet	67 In Stock	150 : $1,357.50 300 : $2,676.00 450 : $3,969.00 1,050 : $9,093.00 Tape & Reel (TR)		Tape & Reel (TR) Cut Tape (CT)	Active	240µH	0.810" L x 0.725" W (20.57mm x 18.42mm)	Surface Mount	-55°C ~ 125°C	Gate Drive	1:1.25:1.25	-	0.450" (11.43mm)	-	-
MGDT100100-SM PLANAR GATE-DRIVE XFMR, 1 : 1 : Vishay / Dale Datasheet	138 In Stock	150 : $1,339.50 300 : $2,640.00 450 : $3,919.50 1,050 : $8,977.50 Tape & Reel (TR)		Tape & Reel (TR) Cut Tape (CT)	Active	240µH	0.810" L x 0.725" W (20.57mm x 18.42mm)	Surface Mount	-55°C ~ 125°C	Gate Drive	1:1:1	-	0.450" (11.43mm)	-	-
MTBAUGDT250252-LF TRANSFORMER, GATE DRIVE 5MM, 250 Vishay / Dale Datasheet	20 In Stock	1 : $10.45 10 : $83.60 Tape & Reel (TR)	MTBAUGDT	Tape & Reel (TR)	Active	300µH	-	Surface Mount	-55°C ~ 130°C	Gate Drive	2.5:1:1	23.8VµS	0.220" (5.59mm)	-	-
