MGDT100125-SM

MGDT100125-SM

Part Number	MGDT100125-SM
Manufacturer	Vishay / Dale
Other Part Numbers	541-4225-2-ND 541-4225-1-ND 541-4225-6-ND 541-4225-2 541-4225-1 541-4225-6

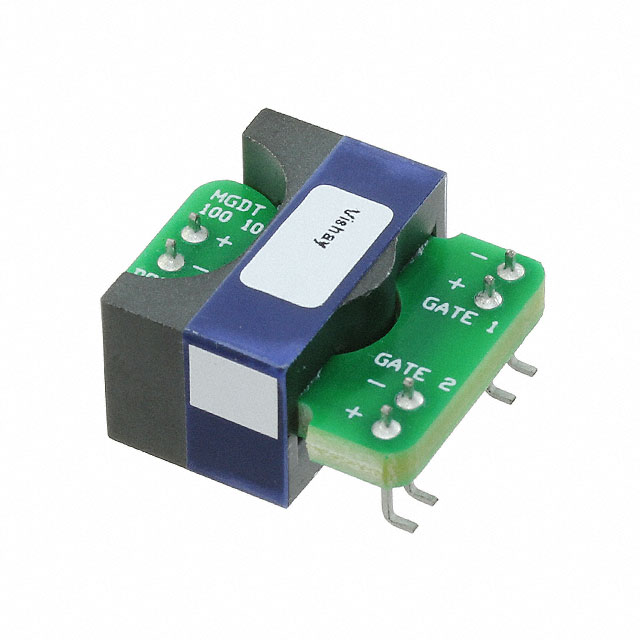

Description	PLANAR GATE-DRIVE XFMR, 1 : 1.25
Detailed Description	240µH Gate Drive Pulse Transformer 1:1.25:1.25 Surface Mount
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Pulse Transformers
Manufacturer		Vishay / Dale
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Inductance		240µH
Size / Dimension		0.810" L x 0.725" W (20.57mm x 18.42mm)
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 125°C
Transformer Type		Gate Drive
Turns Ratio - Primary:Secondary		1:1.25:1.25
Height - Seated (Max)		0.450" (11.43mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MGDT100125-SM

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.2000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
