MGDT100100

Part Number
MGDT100100
Manufacturer Vishay / Dale
Other Part Numbers
541-4220-ND
541-4220

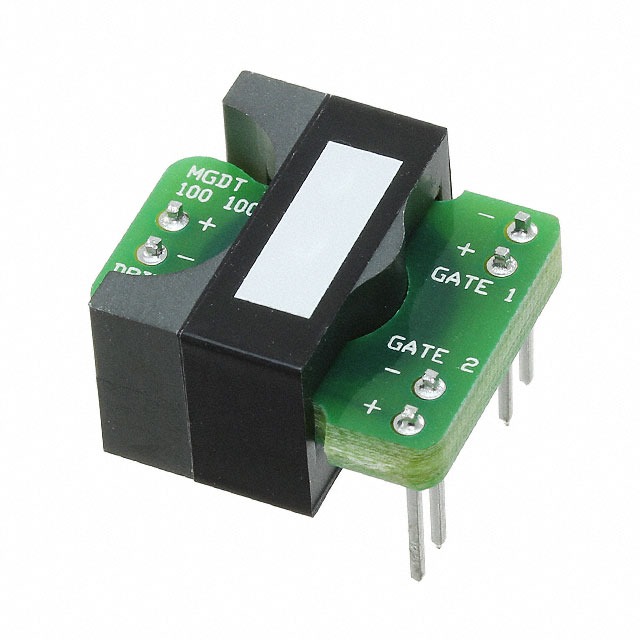

Description PLANAR GATE-DRIVE XFMR, 1 : 1 :
Detailed Description 240µH Gate Drive Pulse Transformer 1:1:1 Through Hole
Manufacturer Standard Lead Time 16 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Vishay / Dale
Series
Packaging
Tray
Part Status Active
Inductance 240µH
Size / Dimension 0.810" L x 0.725" W (20.57mm x 18.42mm)
Mounting Type Through Hole
Operating Temperature -55°C ~ 125°C
Transformer Type Gate Drive
Turns Ratio - Primary:Secondary 1:1:1
Height - Seated (Max) 0.450" (11.43mm)

Documents & Media

RESOURCE TYPE LINK
Datasheets MGDT100100

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.31.2000
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status RoHS non-compliant

In Stock: 141

Can ship immediately.
PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
