Pulse Transformers

Mfr Part #	Quantity	Price	Series	Package	Product Status	Inductance	Size / Dimension	Mounting Type	Operating Temperature	Transformer Type	Turns Ratio - Primary:Secondary	ET (Volt-Time)	Height - Seated (Max)	Grade	Qualification

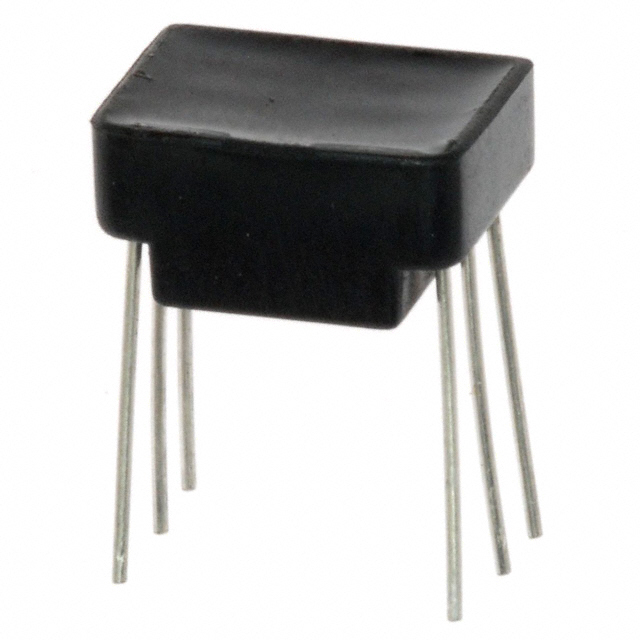

G503 TRANSFORMER 0.20MH 1:1:1 PULSE Tamura Datasheet	376 In Stock	1 : $7.93 10 : $60.70 25 : $148.50 Tube	G5	Tube	Active	200µH	0.350" L x 0.500" W (8.90mm x 12.70mm)	Through Hole	0°C ~ 70°C	Isolation and Data Interface (Encapsulated)	1:1:1 Ter	5VµS	0.250" (6.35mm)	-	-
G509 TRANSFORMER 0.50MH 1CT:1CT PULSE Tamura Datasheet	357 In Stock	1 : $11.27 10 : $86.40 25 : $183.00 50 : $360.00 100 : $684.00 250 : $1,690.00 500 : $3,335.00 1,000 : $6,600.00 Tube	G5	Tube	Active	500µH	0.350" L x 0.500" W (8.90mm x 12.70mm)	Through Hole	0°C ~ 70°C	Isolation and Data Interface (Encapsulated)	1CT:1CT	8.5VµS	0.250" (6.35mm)	-	-
G508 TRANSFORMER 2.0MH 1CT:1CT PULSE Tamura Datasheet	234 In Stock	1 : $11.27 10 : $86.40 25 : $183.00 50 : $360.00 100 : $684.00 250 : $1,690.00 500 : $3,335.00 1,000 : $6,600.00 Tube	G5	Tube	Active	2mH	0.350" L x 0.500" W (8.90mm x 12.70mm)	Through Hole	0°C ~ 70°C	Isolation and Data Interface (Encapsulated)	1CT:1CT	16VµS	0.250" (6.35mm)	-	-
G500 TRANSFORMER 5.0MH 1:1:1 PULSE Tamura Datasheet	2,006 In Stock	1 : $11.67 10 : $86.20 25 : $198.75 50 : $384.50 100 : $748.00 250 : $1,842.50 500 : $3,645.00 1,000 : $7,160.00 Tube	G5	Tube	Active	5mH	0.350" L x 0.500" W (8.90mm x 12.70mm)	Through Hole	0°C ~ 70°C	Isolation and Data Interface (Encapsulated)	1:1:1 Ter	25VµS	0.250" (6.35mm)	-	-
G506 TRANSFORMER 2.0MH 2:1:1 PULSE Tamura Datasheet	0 In Stock	1 : $11.27 10 : $86.40 25 : $183.00 50 : $360.00 100 : $684.00 250 : $1,690.00 500 : $3,335.00 1,000 : $6,600.00 Tube	G5	Tube	Active	2mH	0.350" L x 0.500" W (8.90mm x 12.70mm)	Through Hole	0°C ~ 70°C	Isolation and Data Interface (Encapsulated)	2:1:1 Ter	16VµS	0.250" (6.35mm)	-	-
G502 TRANSFORMER 0.50MH 1:1:1 PULSE Tamura Datasheet	0 In Stock	1,000 : $7,840.00 Tube	G5	Tube	Active	500µH	0.350" L x 0.500" W (8.90mm x 12.70mm)	Through Hole	0°C ~ 70°C	Isolation and Data Interface (Encapsulated)	1:1:1 Ter	8.5VµS	0.250" (6.35mm)	-	-
G513 TRANSFORMER 1.2MH 1:1:1 PULSE Tamura Datasheet	0 In Stock	1,000 : $6,600.00 Tube	G5	Tube	Active	1.2mH	0.350" L x 0.500" W (8.90mm x 12.70mm)	Through Hole	0°C ~ 70°C	Isolation and Data Interface (Encapsulated)	1:1:1 Ter	10VµS	0.250" (6.35mm)	-	-
G505 TRANSFORMER 5.0MH 2:1:1 PULSE Tamura Datasheet	0 In Stock	1,000 : $7,360.00 Tube	G5	Tube	Active	5mH	0.350" L x 0.500" W (8.90mm x 12.70mm)	Through Hole	0°C ~ 70°C	Isolation and Data Interface (Encapsulated)	2:1:1 Ter	25VµS	0.250" (6.35mm)	-	-
G507 TRANSFORMER 0.50MH 2:1:1 PULSE Tamura Datasheet	0 In Stock	1,000 : $6,600.00 Tube	G5	Tube	Active	500µH	0.350" L x 0.500" W (8.90mm x 12.70mm)	Through Hole	0°C ~ 70°C	Isolation and Data Interface (Encapsulated)	2:1:1 Ter	8.5VµS	0.250" (6.35mm)	-	-
G516 TRANSFORMER 0.50MH 1:1.3 PULSE Tamura Datasheet	0 In Stock	1,000 : $7,840.00 Tube	G5	Tube	Active	500µH	0.350" L x 0.500" W (8.90mm x 12.70mm)	Through Hole	0°C ~ 70°C	Isolation and Data Interface (Encapsulated)	1:1.3	8.5VµS	0.250" (6.35mm)	-	-
