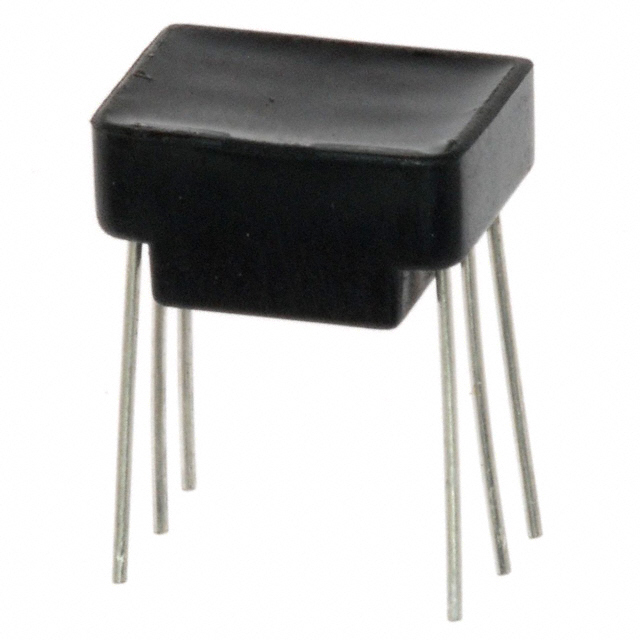

G516

G516

Part Number	G516
Manufacturer	Tamura
Other Part Numbers	MT4209-ND MT4209 MT9109 MT4209-NDR
Description	TRANSFORMER 0.50MH 1:1.3 PULSE
Detailed Description	500µH Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1.3 Through Hole
Manufacturer Standard Lead Time	26 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Pulse Transformers
Manufacturer		Tamura
Series		G5
Packaging		Tube
Part Status		Active
Inductance		500µH
Size / Dimension		0.350" L x 0.500" W (8.90mm x 12.70mm)
Mounting Type		Through Hole
Operating Temperature		0°C ~ 70°C
Transformer Type		Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary		1:1.3
ET (Volt-Time)		8.5VµS
Height - Seated (Max)		0.250" (6.35mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		G516
Datasheets		Multiple Devices Location 10/Sep/2020
Datasheets		G5(0,1)x
Datasheets		G5(0,1)x Bottom
Datasheets		G5(0,1)x Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.2000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
