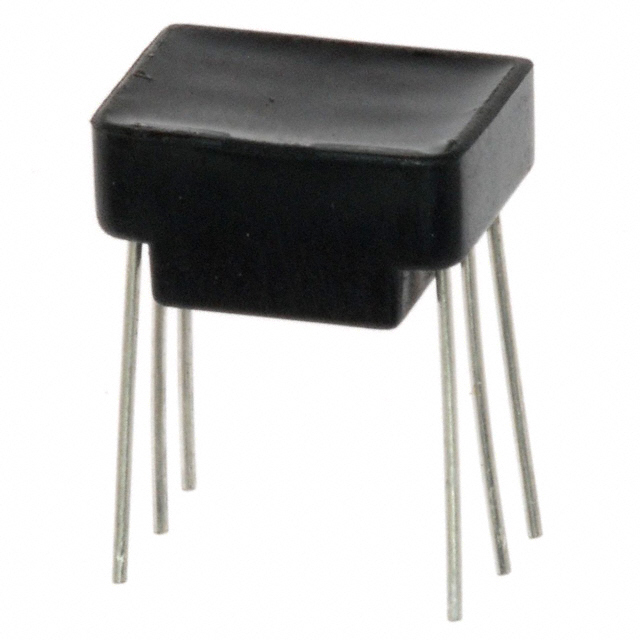

G508

G508

Part Number	G508
Manufacturer	Tamura
Other Part Numbers	MT4207-ND MT4207 MT9107 MT4207-NDR Q1963919
Description	TRANSFORMER 2.0MH 1CT:1CT PULSE
Detailed Description	2mH Isolation and Data Interface (Encapsulated) Pulse Transformer 1CT:1CT Through Hole
Manufacturer Standard Lead Time	26 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Pulse Transformers
Manufacturer		Tamura
Series		G5
Packaging		Tube
Part Status		Active
Inductance		2mH
Size / Dimension		0.350" L x 0.500" W (8.90mm x 12.70mm)
Mounting Type		Through Hole
Operating Temperature		0°C ~ 70°C
Transformer Type		Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary		1CT:1CT
ET (Volt-Time)		16VµS
Height - Seated (Max)		0.250" (6.35mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		G508
Datasheets		Multiple Devices Location 10/Sep/2020
Datasheets		G5(0,1)x Bottom
Datasheets		G5(0,1)x Side
Datasheets		G5(0,1)x

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8504.31.2000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

In Stock: 234

Can ship immediately.
