PTC Resettable Fuses

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Size / Dimension	Mounting Type	Type	Operating Temperature	Lead Spacing	Approval Agency	Current - Hold (Ih) (Max)	Current - Trip (It)	Voltage - Max	Ratings	Height - Seated (Max)	Thickness (Max)	Grade	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Qualification

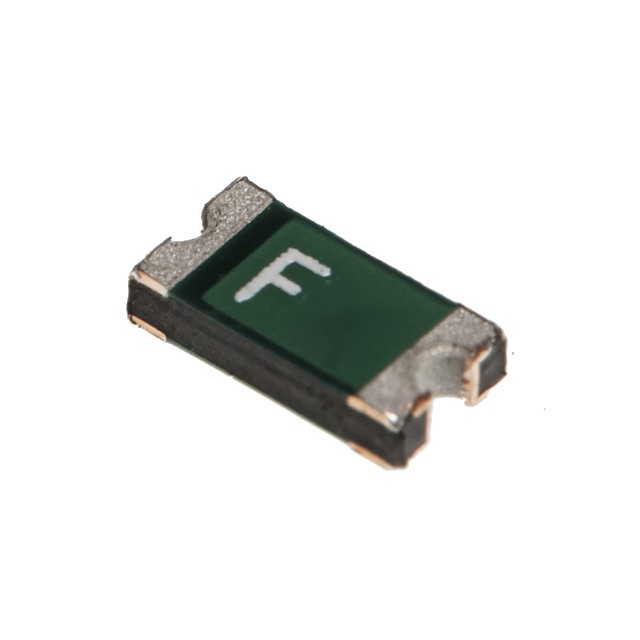

FSMD025-24-1206-R RESETTABLE FUSE - SMD, 1206 SIZE RFE/Fuzetec Datasheet	2,850 Marketplace	50 : $9.00 100 : $16.00 250 : $37.50 500 : $70.00 1,000 : $130.00 3,000 : $300.00 Tape & Reel (TR)	FSMD1206	Tape & Reel (TR)	Active	1206 (3216 Metric), Concave	0.128" L x 0.065" W (3.25mm x 1.65mm)	Surface Mount	-	-40°C ~ 85°C	-	cUL, TUV, UL	250 mA	500 mA	24V	-	-	0.030" (0.75mm)	-	100 A	80 ms	550 mOhms	2.3 Ohms	-	-
FSMD075-1206R RESETTABLE FUSE - SMD, 1206 SIZE RFE/Fuzetec Datasheet	2,950 Marketplace	50 : $7.50 100 : $13.00 250 : $27.50 500 : $50.00 1,000 : $90.00 3,000 : $210.00 Tape & Reel (TR)	FSMD1206	Tape & Reel (TR)	Active	1206 (3216 Metric), Concave	0.128" L x 0.065" W (3.25mm x 1.65mm)	Surface Mount	-	-40°C ~ 85°C	-	cUL, TUV, UL	750 mA	1.5 A	8V	-	-	0.049" (1.25mm)	-	100 A	200 ms	90 mOhms	290 mOhms	-	-

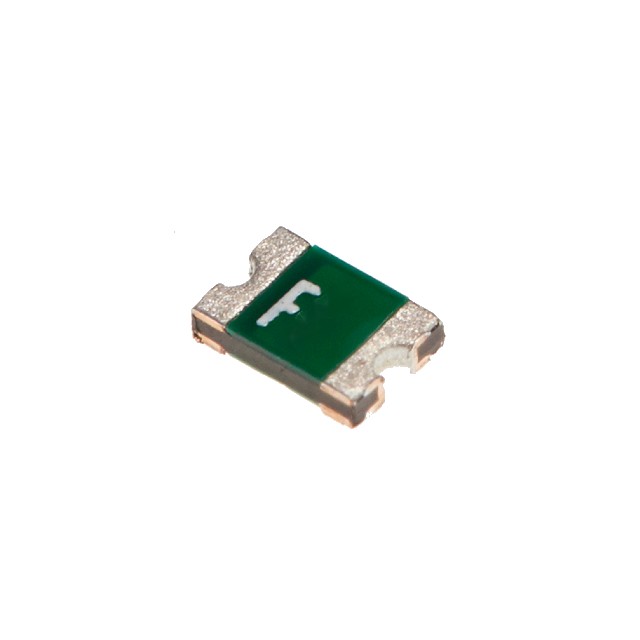

FSMD050-0805R RESETTABLE FUSE - SMD, 0805 SIZE RFE/Fuzetec Datasheet	12,000 Marketplace	50 : $9.00 100 : $15.00 250 : $35.00 500 : $60.00 1,000 : $100.00 3,000 : $240.00 Tape & Reel (TR)	FSMD0805	Tape & Reel (TR)	Active	0805 (2012 Metric), Concave	0.085" L x 0.053" W (2.15mm x 1.35mm)	Surface Mount	-	-40°C ~ 85°C	-	cUL, TUV, UL	500 mA	1 A	6V	-	-	0.049" (1.25mm)	-	100 A	100 ms	150 mOhms	850 mOhms	-	-

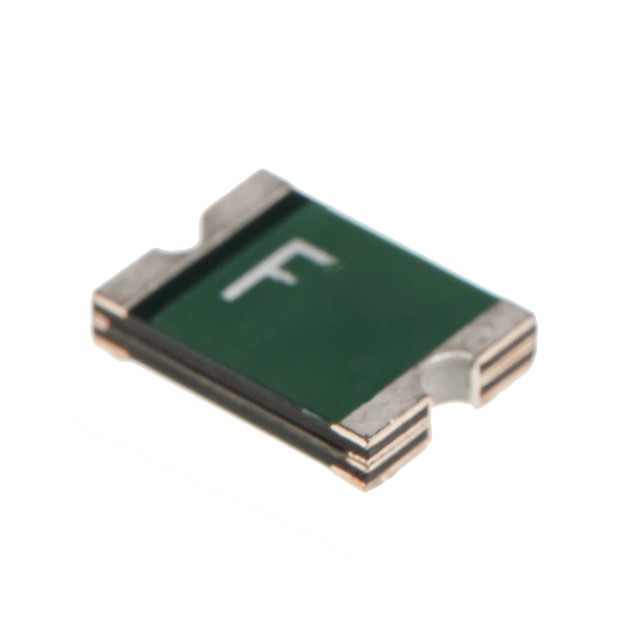

FSMD110-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec Datasheet	2,000 Marketplace	50 : $6.00 100 : $10.00 250 : $22.50 500 : $40.00 1,000 : $70.00 2,000 : $120.00 Tape & Reel (TR)	FSMD1812	Tape & Reel (TR)	Active	1812 (4532 Metric), Concave	0.179" L x 0.128" W (4.55mm x 3.24mm)	Surface Mount	-	-40°C ~ 85°C	-	cUL, TUV, UL	1.1 A	2.2 A	8V	-	-	0.022" (0.55mm)	-	100 A	300 ms	40 mOhms	210 mOhms	-	-
FSMD050-30-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec Datasheet	2,000 Marketplace	50 : $6.00 100 : $10.00 250 : $22.50 500 : $40.00 1,000 : $70.00 2,000 : $120.00 Tape & Reel (TR)	FSMD1812	Tape & Reel (TR)	Active	1812 (4532 Metric), Concave	0.179" L x 0.128" W (4.55mm x 3.24mm)	Surface Mount	-	-40°C ~ 85°C	-	cUL, TUV, UL	500 mA	1 A	30V	-	-	0.030" (0.75mm)	-	100 A	150 ms	150 mOhms	1 Ohms	-	-
FSMD260-2920-R RESETTABLE FUSE - SMD, 2920 SIZE RFE/Fuzetec Datasheet	1,950 Marketplace	50 : $12.00 100 : $21.00 250 : $47.50 500 : $85.00 1,000 : $160.00 2,000 : $240.00 Tape & Reel (TR)	FSMD2920	Tape & Reel (TR)	Active	2920 (7351 Metric), Concave	0.290" L x 0.202" W (7.36mm x 5.12mm)	Surface Mount	-	-40°C ~ 85°C	-	cUL, TUV, UL	2.6 A	5.2 A	6V	-	-	0.035" (0.90mm)	-	100 A	20 s	20 mOhms	75 mOhms	-	-
FSMD200R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec Datasheet	1,400 Marketplace	50 : $12.50 100 : $18.00 250 : $40.00 500 : $70.00 1,000 : $120.00 2,000 : $220.00 Tape & Reel (TR)	FSMD1812	Tape & Reel (TR)	Active	1812 (4532 Metric), Concave	0.179" L x 0.128" W (4.55mm x 3.24mm)	Surface Mount	-	-40°C ~ 85°C	-	cUL, TUV, UL	2 A	3.5 A	8V	-	-	0.047" (1.20mm)	-	100 A	2 s	20 mOhms	70 mOhms	-	-
FSMD160-24R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec Datasheet	1,200 Marketplace	50 : $9.00 100 : $15.00 250 : $35.00 500 : $65.00 1,000 : $120.00 2,000 : $200.00 Tape & Reel (TR)	FSMD1812	Tape & Reel (TR)	Active	1812 (4532 Metric), Concave	0.179" L x 0.128" W (4.55mm x 3.24mm)	Surface Mount	-	-40°C ~ 85°C	-	cUL, TUV, UL	1.6 A	3.2 A	24V	-	-	0.047" (1.20mm)	-	100 A	1 s	30 mOhms	100 mOhms	-	-
FSMD020-0805-R RESETTABLE FUSE - SMD, 0805 SIZE RFE/Fuzetec Datasheet	3,850 Marketplace	50 : $7.00 100 : $12.00 250 : $27.50 500 : $50.00 1,000 : $90.00 4,000 : $320.00 Tape & Reel (TR)	FSMD0805	Tape & Reel (TR)	Active	0805 (2012 Metric), Concave	0.085" L x 0.053" W (2.15mm x 1.35mm)	Surface Mount	-	-40°C ~ 85°C	-	cUL, TUV, UL	200 mA	500 mA	9V	-	-	0.039" (1.00mm)	-	100 A	20 ms	400 mOhms	3.5 Ohms	-	-
FSMD260-13R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec Datasheet	1,500 Marketplace	50 : $14.50 100 : $25.00 250 : $57.50 500 : $100.00 1,000 : $180.00 1,500 : $195.00 Tape & Reel (TR)	FSMD1812	Tape & Reel (TR)	Active	1812 (4532 Metric), Concave	0.179" L x 0.128" W (4.55mm x 3.24mm)	Surface Mount	-	-40°C ~ 85°C	-	cUL, TUV, UL	2.6 A	5 A	13.2V	-	-	0.061" (1.55mm)	-	100 A	5 s	15 mOhms	50 mOhms	-	-
