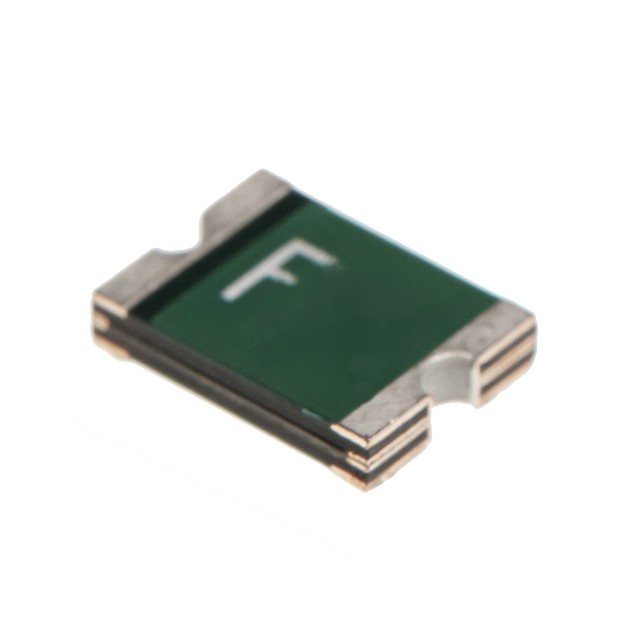

FSMD110-R

FSMD110-R

Part Number	FSMD110-R
Manufacturer	RFE/Fuzetec
Other Part Numbers	3451-FSMD110-RTR-ND 3451-FSMD110-RTR
Description	RESETTABLE FUSE - SMD, 1812 SIZE
Detailed Description	PTC Resettable Fuse 8V 1.1 A Ih Surface Mount 1812 (4532 Metric), Concave
Datasheet	Datasheet

Product Attributes

Category		Circuit Protection PTC Resettable Fuses
Manufacturer		RFE/Fuzetec
Series		FSMD1812
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		1812 (4532 Metric), Concave
Size / Dimension		0.179" L x 0.128" W (4.55mm x 3.24mm)
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C
Approval Agency		cUL, TUV, UL
Current - Hold (Ih) (Max)		1.1 A
Current - Trip (It)		2.2 A
Voltage - Max		8V
Thickness (Max)		0.022" (0.55mm)
Current - Max		100 A
Time to Trip		300 ms
Resistance - Initial (Ri) (Min)		40 mOhms
Resistance - Post Trip (R1) (Max)		210 mOhms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		FSMD110-R

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.40.8070
Moisture Sensitivity Level (MSL)		2 (1 Year)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
