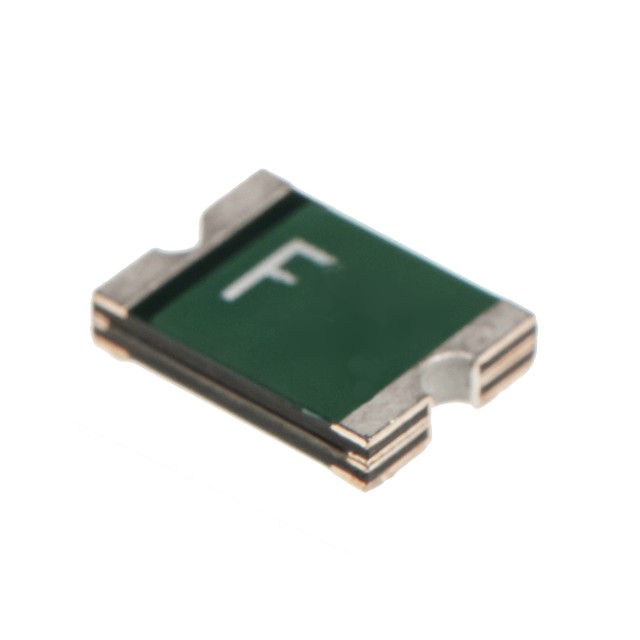

FSMD260-13R

FSMD260-13R

Part Number	FSMD260-13R
Manufacturer	RFE/Fuzetec
Other Part Numbers	3451-FSMD260-13RTR-ND 3451-FSMD260-13RTR
Description	RESETTABLE FUSE - SMD, 1812 SIZE
Detailed Description	PTC Resettable Fuse 13.2V 2.6 A Ih Surface Mount 1812 (4532 Metric), Concave
Datasheet	Datasheet

Product Attributes

Category		Circuit Protection PTC Resettable Fuses
Manufacturer		RFE/Fuzetec
Series		FSMD1812
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		1812 (4532 Metric), Concave
Size / Dimension		0.179" L x 0.128" W (4.55mm x 3.24mm)
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C
Approval Agency		cUL, TUV, UL
Current - Hold (Ih) (Max)		2.6 A
Current - Trip (It)		5 A
Voltage - Max		13.2V
Thickness (Max)		0.061" (1.55mm)
Current - Max		100 A
Time to Trip		5 s
Resistance - Initial (Ri) (Min)		15 mOhms
Resistance - Post Trip (R1) (Max)		50 mOhms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		FSMD260-13R

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.40.8070
Moisture Sensitivity Level (MSL)		2 (1 Year)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
