PTC Resettable Fuses

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Size / Dimension	Mounting Type	Type	Operating Temperature	Lead Spacing	Approval Agency	Current - Hold (Ih) (Max)	Current - Trip (It)	Voltage - Max	Ratings	Height - Seated (Max)	Thickness (Max)	Grade	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Qualification

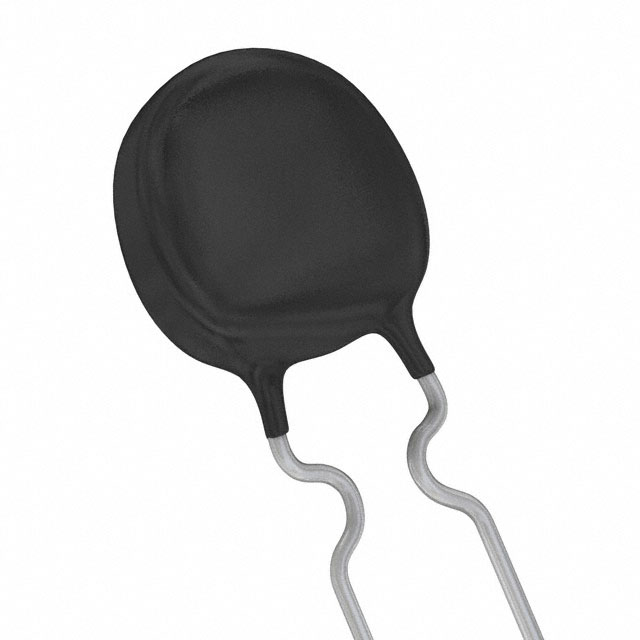

PTCCL13H921DBE PTC RESET FUSE 30V 920MA RADIAL Vishay BC Components Datasheet	3 In Stock	1 : $2.05 10 : $15.40 25 : $30.75 250 : $257.50 500 : $475.00 1,000 : $850.00 5,000 : $3,850.00 Bulk	PTCCL - 30V	Bulk	Active	Radial, Disc	0.492" Dia x 0.157" T (12.50mm x 4.00mm)	Through Hole	Ceramic	-40°C ~ 85°C	0.197" (5.00mm)	UR	920 mA	1.38 A	30V	-	0.689" (17.50mm)	-	-	11 A	-	-	-	900 mOhms	-
PTCCL13H451FBE PTC RESET FUSE 145V 450MA RADIAL Vishay BC Components Datasheet	1,512 In Stock	1 : $2.05 10 : $15.40 200 : $226.00 1,000 : $850.00 5,000 : $3,850.00 10,000 : $7,200.00 Bulk	PTCCL - 145V	Bulk	Active	Radial, Disc	0.492" Dia x 0.197" T (12.50mm x 5.00mm)	Through Hole	Ceramic	0°C ~ 70°C	0.197" (5.00mm)	UR	450 mA	675 mA	145V	-	0.689" (17.50mm)	-	-	5 A	-	-	-	3.8 Ohms	-
PTCCL07H321DBE PTC RESET FUSE 30V 320MA RADIAL Vishay BC Components Datasheet	625 In Stock	1 : $1.59 10 : $12.00 25 : $24.00 250 : $200.00 500 : $370.00 1,000 : $660.00 5,000 : $3,000.00 Bulk	PTCCL - 30V	Bulk	Active	Radial, Disc	0.276" Dia x 0.157" T (7.00mm x 4.00mm)	Through Hole	Ceramic	-40°C ~ 85°C	0.197" (5.00mm)	UR	320 mA	480 mA	30V	-	0.472" (12.00mm)	-	-	3.5 A	-	-	-	5 Ohms	-
PTCCL11H701DBE PTC RESET FUSE 30V 700MA RADIAL Vishay BC Components Datasheet	581 In Stock	1 : $2.01 10 : $15.10 250 : $252.50 1,000 : $830.00 5,000 : $3,800.00 10,000 : $7,100.00 Bulk	PTCCL - 30V	Bulk	Active	Radial, Disc	0.413" Dia x 0.157" T (10.50mm x 4.00mm)	Through Hole	Ceramic	-40°C ~ 85°C	0.197" (5.00mm)	UR	700 mA	1.05 A	30V	-	0.606" (15.40mm)	-	-	8 A	-	-	-	1.3 Ohms	-
PTCCL11H251HBE PTC RESET FUSE 265V 250MA RADIAL Vishay BC Components Datasheet	680 In Stock	1 : $2.01 10 : $15.10 200 : $222.00 1,000 : $830.00 5,000 : $3,800.00 10,000 : $7,100.00 Bulk	PTCCL - 265V	Bulk	Active	Radial, Disc	0.413" Dia x 0.217" T (10.50mm x 5.50mm)	Through Hole	Ceramic	0°C ~ 70°C	0.197" (5.00mm)	UR	250 mA	375 mA	265V	-	0.610" (15.50mm)	-	-	1.5 A	-	-	-	12 Ohms	-
PTCCL05H271DBE PTC RESET FUSE 30V 270MA RADIAL Vishay BC Components Datasheet	1,031 In Stock	1 : $1.30 10 : $9.70 500 : $300.00 1,000 : $540.00 5,000 : $2,450.00 10,000 : $4,500.00 Bulk	PTCCL - 30V	Bulk	Active	Radial, Disc	0.197" Dia x 0.157" T (5.00mm x 4.00mm)	Through Hole	Ceramic	-40°C ~ 85°C	0.197" (5.00mm)	UR	270 mA	405 mA	30V	-	0.394" (10.00mm)	-	-	2.5 A	-	-	-	6 Ohms	-
PTCCL07H411DBE PTC RESET FUSE 30V 410MA RADIAL Vishay BC Components Datasheet	228 In Stock	1 : $1.59 10 : $12.00 250 : $200.00 1,000 : $660.00 5,000 : $3,000.00 10,000 : $5,600.00 Bulk	PTCCL - 30V	Bulk	Active	Radial, Disc	0.276" Dia x 0.157" T (7.00mm x 4.00mm)	Through Hole	Ceramic	-40°C ~ 85°C	0.197" (5.00mm)	UR	410 mA	615 mA	30V	-	0.472" (12.00mm)	-	-	4.5 A	-	-	-	3 Ohms	-
PTCCL05H630HBE PTC RESET FUSE 265V 63MA RADIAL Vishay BC Components Datasheet	2,567 In Stock	1 : $1.30 10 : $9.70 25 : $19.50 100 : $71.00 500 : $300.00 1,000 : $540.00 5,000 : $2,450.00 Bulk	PTCCL - 265V	Bulk	Active	Radial, Disc	0.197" Dia x 0.197" T (5.00mm x 5.00mm)	Through Hole	Ceramic	0°C ~ 70°C	0.197" (5.00mm)	UR	63 mA	95 mA	265V	-	0.394" (10.00mm)	-	-	450 mA	-	-	-	120 Ohms	-
PTCCL09H171HBE PTC RESET FUSE 265V 170MA RADIAL Vishay BC Components Datasheet	3,405 In Stock	1 : $1.59 10 : $12.00 250 : $200.00 1,000 : $660.00 5,000 : $3,000.00 10,000 : $5,600.00 Bulk	PTCCL - 265V	Bulk	Active	Radial, Disc	0.335" Dia x 0.217" T (8.50mm x 5.50mm)	Through Hole	Ceramic	0°C ~ 70°C	0.197" (5.00mm)	UR	170 mA	255 mA	265V	-	0.532" (13.50mm)	-	-	900 mA	-	-	-	22 Ohms	-
PTCCL05H760HBE PTC RESET FUSE 265V 76MA RADIAL Vishay BC Components Datasheet	2,038 In Stock	1 : $1.30 10 : $9.70 500 : $300.00 1,000 : $540.00 5,000 : $2,450.00 10,000 : $4,500.00 Bulk	PTCCL - 265V	Bulk	Active	Radial, Disc	0.197" Dia x 0.217" T (5.00mm x 5.50mm)	Through Hole	Ceramic	0°C ~ 70°C	0.197" (5.00mm)	UR	76 mA	115 mA	265V	-	0.394" (10.00mm)	-	-	550 mA	-	-	-	85 Ohms	-
