PTCCL05H271DBE

PTCCL05H271DBE

Part Number	PTCCL05H271DBE
Manufacturer	Vishay BC Components
Other Part Numbers	BC3374-ND 238166052711 2381 660 52711 BC3374 2381 660 52711-ND
Description	PTC RESET FUSE 30V 270MA RADIAL
Detailed Description	Ceramic PTC Resettable Fuse 30V 270 mA Ih Through Hole Radial, Disc
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Circuit Protection PTC Resettable Fuses
Manufacturer		Vishay BC Components
Series		PTCCL - 30V
Packaging		Bulk
Part Status		Active
Package / Case		Radial, Disc
Size / Dimension		0.197" Dia x 0.157" T (5.00mm x 4.00mm)
Mounting Type		Through Hole
Type		Ceramic
Operating Temperature		-40°C ~ 85°C
Lead Spacing		0.197" (5.00mm)
Approval Agency		UR
Current - Hold (Ih) (Max)		270 mA
Current - Trip (It)		405 mA
Voltage - Max		30V
Height - Seated (Max)		0.394" (10.00mm)
Current - Max		2.5 A
Resistance - 25°C (Typ)		6 Ohms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PTCCL05H271DBE
Datasheets		Mult Series Coating 15/Jul/2011
Datasheets		660 Series Front

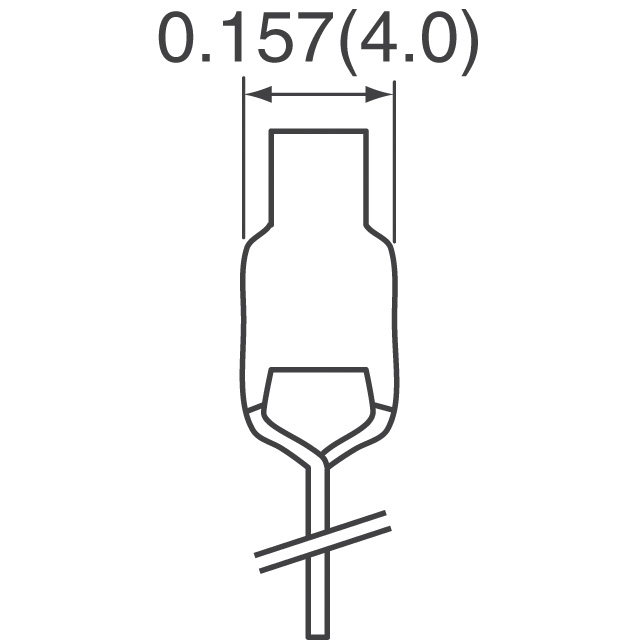

Datasheets		PTCCL Series 4.0mm Thickness Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.40.8070
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

In Stock: 1031

Can ship immediately.
