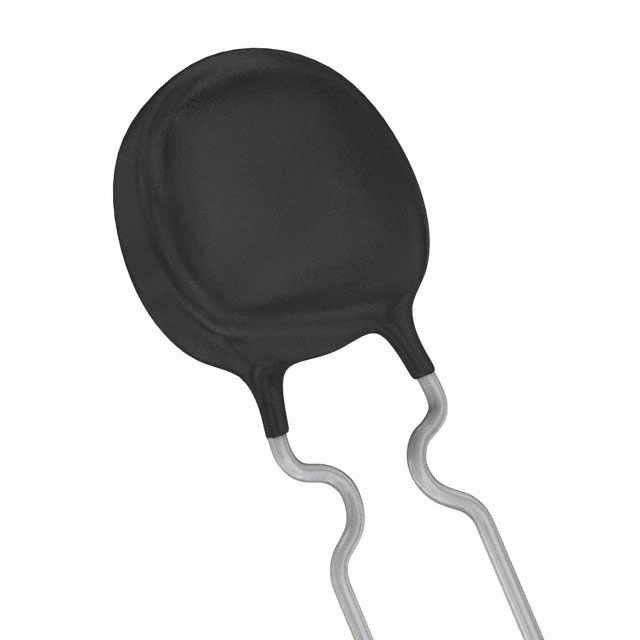

PTCCL09H171HBE

PTCCL09H171HBE

Part Number	PTCCL09H171HBE
Manufacturer	Vishay BC Components
Other Part Numbers	BC2722-ND 2381 661 51713 BC2722 2381 661 51713-ND 238166151713
Description	PTC RESET FUSE 265V 170MA RADIAL
Detailed Description	Ceramic PTC Resettable Fuse 265V 170 mA Ih Through Hole Radial, Disc
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Product Attributes

Category		Circuit Protection PTC Resettable Fuses
Manufacturer		Vishay BC Components
Series		PTCCL - 265V
Packaging		Bulk
Part Status		Active
Package / Case		Radial, Disc
Size / Dimension		0.335" Dia x 0.217" T (8.50mm x 5.50mm)
Mounting Type		Through Hole
Type		Ceramic
Operating Temperature		0°C ~ 70°C
Lead Spacing		0.197" (5.00mm)
Approval Agency		UR
Current - Hold (Ih) (Max)		170 mA
Current - Trip (It)		255 mA
Voltage - Max		265V
Height - Seated (Max)		0.532" (13.50mm)
Current - Max		900 mA
Resistance - 25°C (Typ)		22 Ohms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PTCCL09H171HBE
Datasheets		Mult Series Coating 15/Jul/2011
Datasheets		PTCCL Series 5.5mm Thickness Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.40.8070
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

In Stock: 3405

Can ship immediately.
