Fixed Inductors

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Mounting Type

Bolt Mount

Brackets

Chassis Mount

Free Hanging (In-Line)

Surface Mount

Through Hole

User Defined

Shielding

Shielded

Unshielded

Ratings

AEC-Q200

Mfr Part #	Quantity	Price	Series	Package	Product Status	Tolerance	Features	Package / Case	Size / Dimension	Mounting Type	Shielding	Type	Operating Temperature	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Current - Saturation (Isat)	Material - Core	Inductance Frequency - Test	Supplier Device Package	Height - Seated (Max)	Inductance	Current Rating (Amps)
VTC100-3R3M-RC 3.3uH +/-20% V.M. Toroidal Choke Allied Components International Datasheet	5 Marketplace	1 : $2.75 5 : $12.50 10 : $22.50 15 : $32.25 Tray	TC100	Tray	Active	±20%	-	Vertical, No Base, 2 PC Pin	0.580" Dia (14.73mm)	Through Hole	Unshielded	Toroidal	-55°C ~ 105°C	8mOhm Max	-	-	-	8A	-	1 kHz	Vertical, No Base, 2 PC Pin	-	3.3 µH	5 A

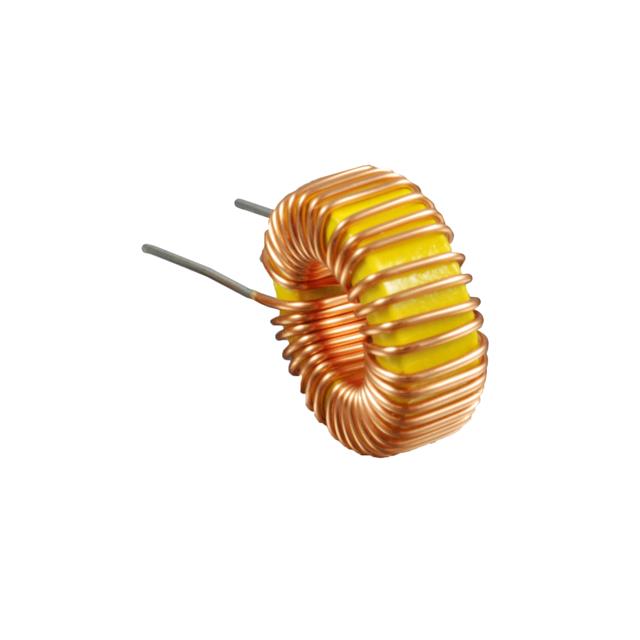

HTC230-391L-RC 390uH +/-15% H.M. Toroidal Choke Allied Components International Datasheet	5 Marketplace	1 : $4.25 5 : $18.75 10 : $35.00 15 : $48.75 Tray	TC230	Tray	Active	±15%	-	Horizontal, No Base, 2 PC Pin	1.280" Dia (32.51mm)	Through Hole	Unshielded	Toroidal	-55°C ~ 105°C	72mOhm Max	-	-	-	-	-	1 kHz	Horizontal, No Base, 2 PC Pin	0.650" (16.51mm)	390 µH	5 A
VTC230HT-2R7L-RC 2.7uH +/-15% V.M. Toroidal Choke Allied Components International Datasheet	5 Marketplace	1 : $4.25 5 : $18.75 10 : $35.00 15 : $48.75 Tray	TC230HT	Tray	Active	±15%	-	Vertical, No Base, 2 PC Pin	1.280" Dia (32.51mm)	Through Hole	Unshielded	Toroidal	-55°C ~ 200°C	3mOhm Max	-	-	-	-	-	1 kHz	Vertical, No Base, 2 PC Pin	-	2.7 µH	31.6 A

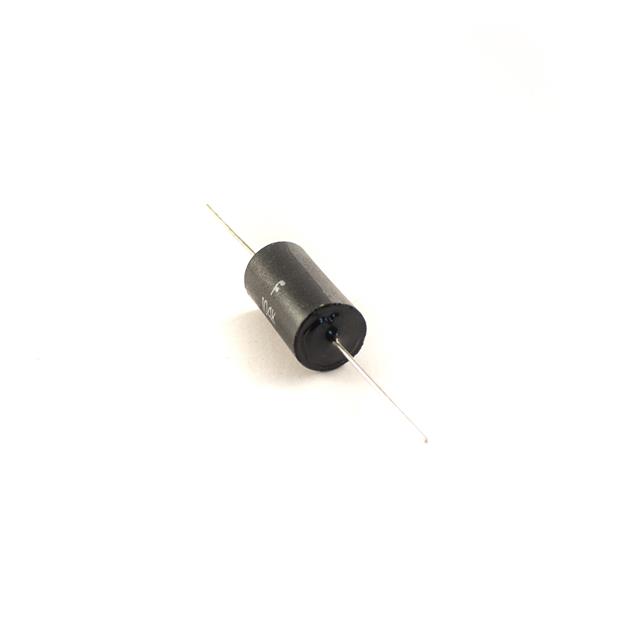

APC20-270K-RC 27uH +/-10% Axial Power Choke Allied Components International Datasheet	10 Marketplace	1 : $1.10 5 : $5.25 10 : $9.50 15 : $13.50 Bag	APC20	Bag	Active	±10%	-	Axial	0.290" Dia x 0.600" L (7.36mm x 15.24mm)	Through Hole	Unshielded	-	-55°C ~ 125°C	56mOhm Max	-	-	-	2.5A	-	1 kHz	Axial	-	27 µH	1.28 A

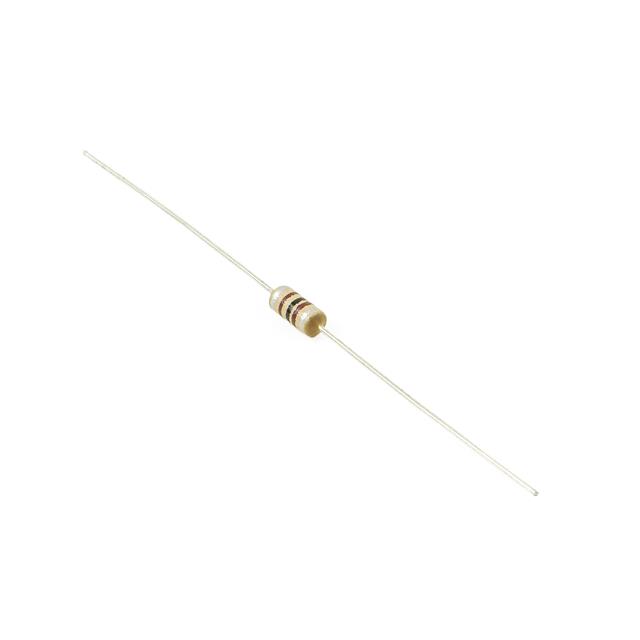

AS20-220K-RC 22uH +/-10% Axial Shielded Ind. Allied Components International Datasheet	12 Marketplace	1 : $1.25 5 : $6.00 10 : $11.00 15 : $14.70 Bag	AS20	Bag	Active	±10%	-	Axial	0.100" Dia x 0.250" L (2.54mm x 6.35mm)	Through Hole	Shielded	-	-55°C ~ 125°C	1.09Ohm Max	45 @ 2.5MHz	42.2MHz	-	-	-	2.5 MHz	Axial	-	22 µH	404 mA
ASPC80-824K-RC 820mH +/-10% Power Shielded Ind. Allied Components International Datasheet	10 Marketplace	1 : $4.75 5 : $23.25 10 : $45.00 15 : $63.75 Bag		Bag	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

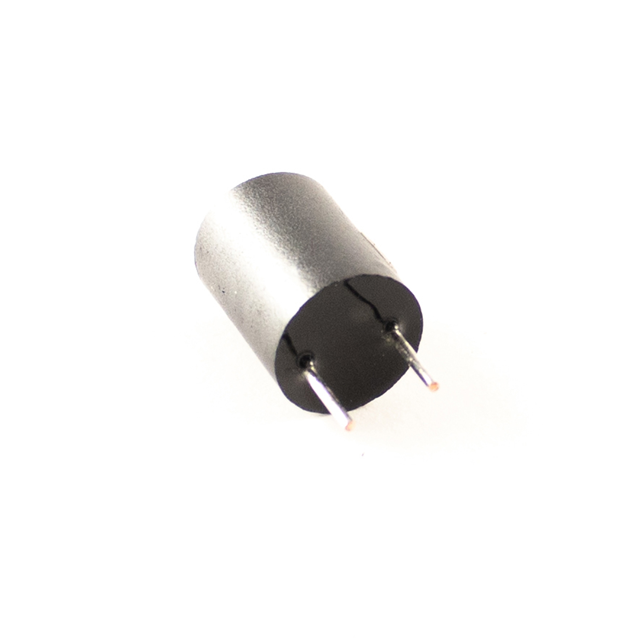

RBS810-104-RC 100MH, RADIAL LEADED SHIELDED IN Allied Components International Datasheet	5 Marketplace	1 : $1.50 5 : $6.25 10 : $9.80 Bag		Bag	Active	-	-	Radial, Vertical Cylinder	0.413" Dia (10.50mm)	Through Hole	Shielded	-	-40°C ~ 125°C	-	-	-	-	-	-	-	Radial	0.433" (11.00mm)	100 mH	-

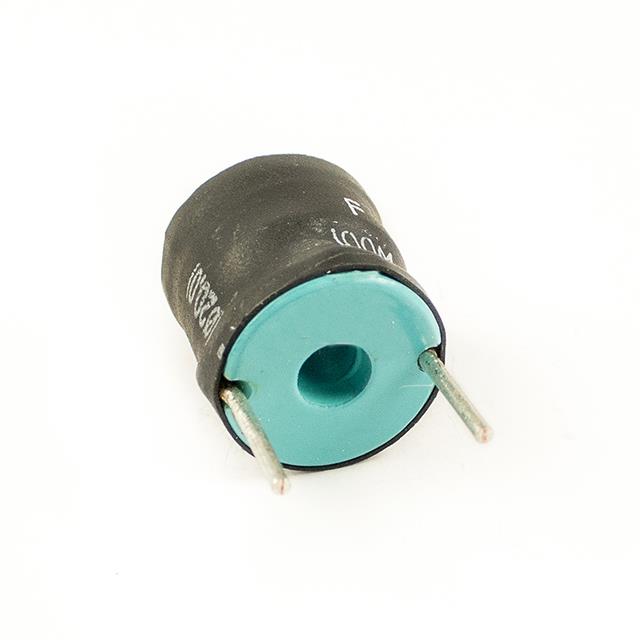

RDC20-220K-RC 22 UH 20% RADIAL DRUM CORE Allied Components International Datasheet	10 Marketplace	1 : $6.50 5 : $31.25 10 : $57.50 Box	RDC20	Box	Active	±10%	-	Radial	0.825" Dia (20.96mm)	Through Hole	Unshielded	Drum Core, Wirewound	-40°C ~ 85°C	19mOhm Max	-	-	-	21A	-	1 kHz	Radial	0.840" (21.34mm)	22 µH	7.2 A
RDC20-221K-RC 220 UH 20% Radial Drum Core Allied Components International Datasheet	14 Marketplace	1 : $6.50 5 : $31.25 10 : $57.50 Box	RDC20	Box	Active	±10%	-	Radial	0.825" Dia (20.96mm)	Through Hole	Unshielded	Drum Core, Wirewound	-40°C ~ 85°C	150mOhm Max	-	-	-	7A	-	1 kHz	Radial	0.840" (21.34mm)	220 µH	2.8 A

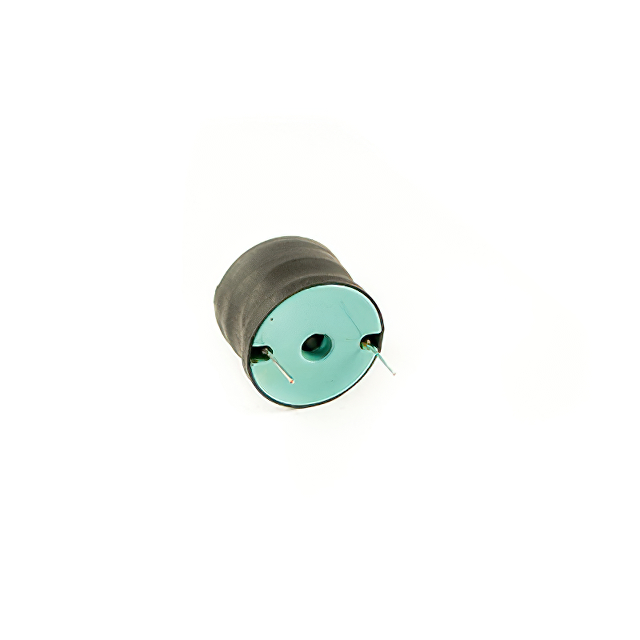

RDC30-471K-RC 470UH 10% Radial Drum Core Allied Components International Datasheet	3 Marketplace	1 : $7.55 5 : $36.25 10 : $69.80 Box	RDC30	Box	Active	±10%	-	Radial, Vertical Cylinder	1.100" Dia (27.94mm)	Through Hole	Unshielded	Drum Core, Wirewound	-55°C ~ 125°C	187mOhm Max	-	-	-	6A	-	1 kHz	Radial	0.840" (21.34mm)	470 µH	4 A
