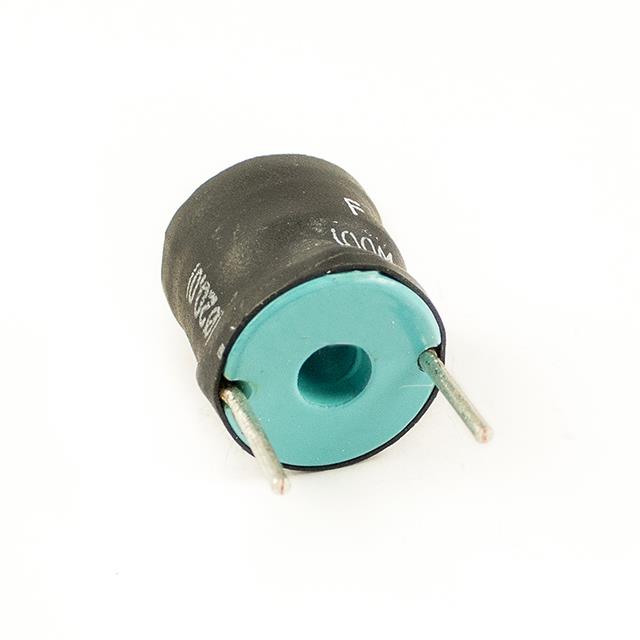

RDC20-221K-RC

Part Number
RDC20-221K-RC
Manufacturer Allied Components International
Other Part Numbers
3475-RDC20-221K-RC-ND
3475-RDC20-221K-RC
Description 220 UH 20% Radial Drum Core
Detailed Description 220 µH Unshielded Drum Core, Wirewound Inductor 2.8 A 150mOhm Max Radial
Datasheet Datasheet

Product Attributes

Category
Manufacturer Allied Components International
Series
RDC20
Packaging
Box
Part Status Active
Tolerance ±10%
Package / Case Radial
Size / Dimension 0.825" Dia (20.96mm)
Mounting Type Through Hole
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 85°C
DC Resistance (DCR) 150mOhm Max
Current - Saturation (Isat) 7A
Inductance Frequency - Test 1 kHz
Supplier Device Package Radial
Height - Seated (Max) 0.840" (21.34mm)
Inductance 220 µH
Current Rating (Amps) 2.8 A

Documents & Media

RESOURCE TYPE LINK
Datasheets RDC20-221K-RC

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH info available upon request
RoHS Status RoHS Compliant
