HTC230-391L-RC

HTC230-391L-RC

Part Number	HTC230-391L-RC
Manufacturer	Allied Components International
Other Part Numbers	3475-HTC230-391L-RC-ND 3475-HTC230-391L-RC

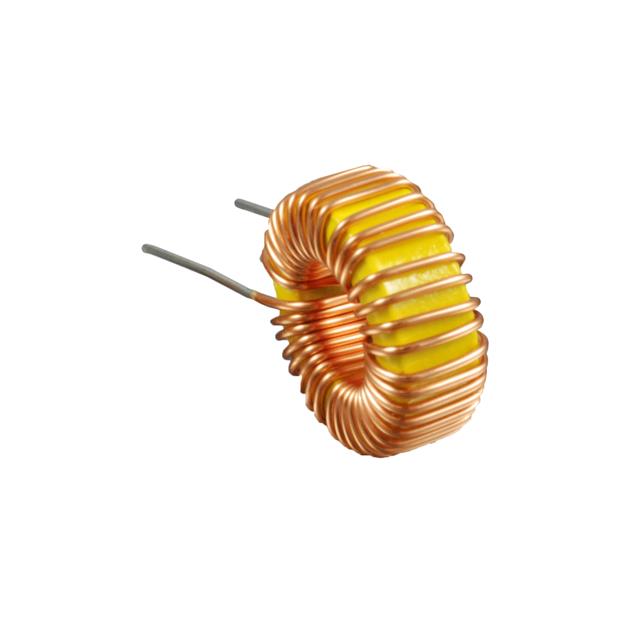

Description	390uH +/-15% H.M. Toroidal Choke
Detailed Description	390 µH Unshielded Toroidal Inductor 5 A 72mOhm Max Horizontal, No Base, 2 PC Pin
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Allied Components International
Series		TC230
Packaging		Tray
Part Status		Active
Tolerance		±15%
Package / Case		Horizontal, No Base, 2 PC Pin
Size / Dimension		1.280" Dia (32.51mm)
Mounting Type		Through Hole
Shielding		Unshielded
Type		Toroidal
Operating Temperature		-55°C ~ 105°C
DC Resistance (DCR)		72mOhm Max
Inductance Frequency - Test		1 kHz
Supplier Device Package		Horizontal, No Base, 2 PC Pin
Height - Seated (Max)		0.650" (16.51mm)
Inductance		390 µH
Current Rating (Amps)		5 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		HTC230-391L-RC

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH info available upon request
RoHS Status		RoHS Compliant
