DIP Switches

Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Contact Finish	Voltage Rating	Current Rating (Amps)	Mounting Type	Pitch	Circuit	Operating Temperature	Termination Style	Actuator Type	Height Above Board	Actuator Level	Washable	Contact Material	Number of Positions

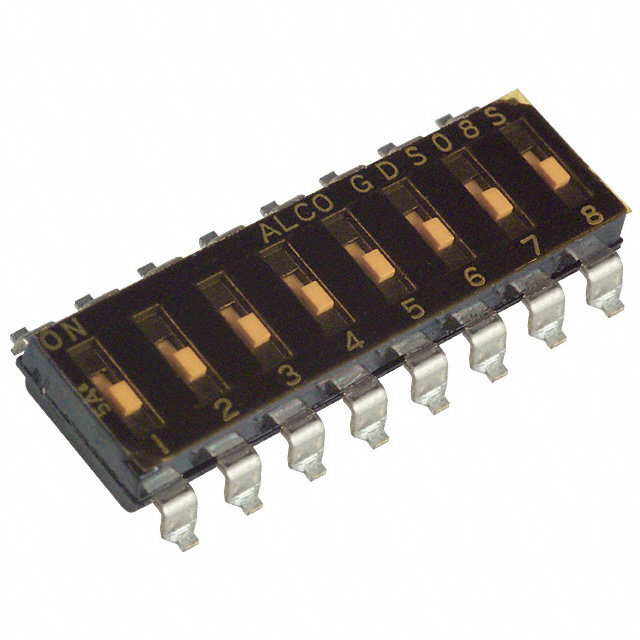

GDS08S04 SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches Datasheet	581 In Stock	1 : $3.68 20 : $70.40 40 : $128.80 100 : $279.00 260 : $657.80 500 : $1,170.00 1,000 : $2,170.00 2,500 : $4,950.00 5,000 : $9,500.00 Tube	GDS	Tube	Active	Tape Seal	Gold	24VDC	25mA	Surface Mount	0.100" (2.54mm), Full	SPST	-30°C ~ 85°C	Gull Wing	Slide (Standard)	0.114" (2.90mm)	Flush, Recessed	Yes	Copper Alloy	8

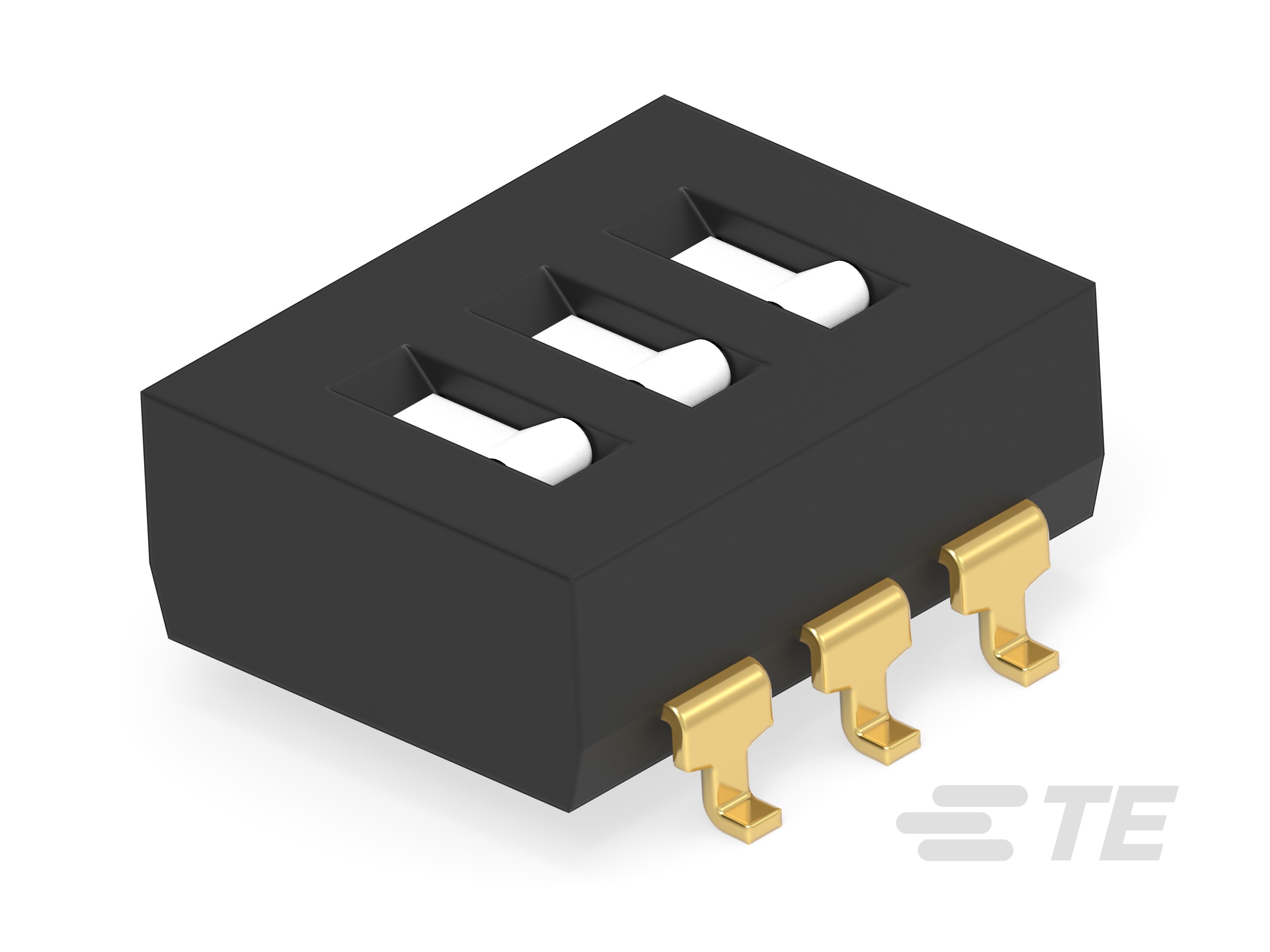

1-1825059-1 SWITCH STANDARD DIP SPST TE Connectivity ALCOSWITCH Switches Datasheet	13,465 In Stock	1 : $1.12 10 : $10.80 45 : $45.45 135 : $117.45 270 : $216.00 540 : $410.40 Bulk	ADF	Bulk	Active	-	-	-	-	Surface Mount	-	SPST	-	-	Standard	-	Flush, Recessed	Yes	-	3
5161390-4 SWITCH STANDARD DIP SPST TE Connectivity ALCOSWITCH Switches Datasheet	562 In Stock	1 : $3.49 10 : $33.40 25 : $76.25 100 : $265.00 250 : $600.00 500 : $1,110.00 1,000 : $2,060.00 2,500 : $4,675.00 5,000 : $9,000.00 Box		Box	Active	-	-	-	-	Through Hole	-	SPST	-	-	Standard	-	Raised	No	-	4

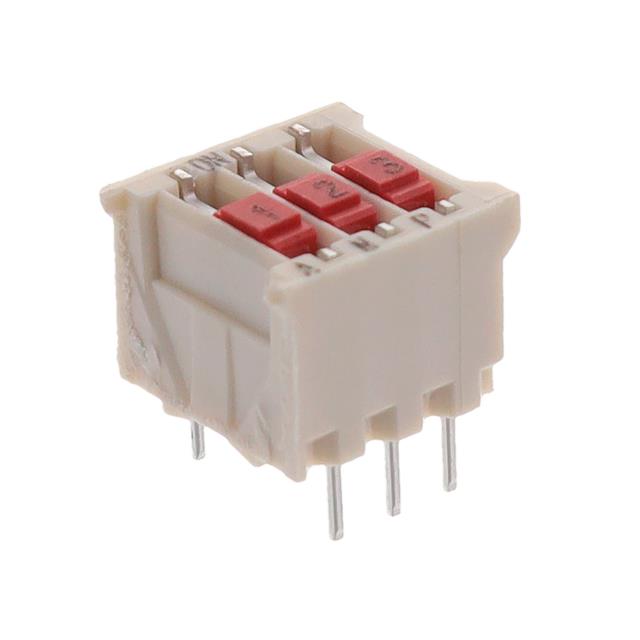

5161390-3 SWITCH SLIDE DIP SPST 0.025A 50V TE Connectivity ALCOSWITCH Switches Datasheet	2,996 In Stock	1 : $2.93 10 : $27.70 25 : $63.00 100 : $218.00 250 : $495.00 500 : $915.00 1,000 : $1,700.00 2,500 : $3,875.00 5,000 : $7,400.00 Box	DIP	Box	Active	-	Tin	50VDC	25mA	Through Hole	0.100" (2.54mm), Full	SPST	-25°C ~ 70°C	PC Pin	Slide (Standard)	0.335" (8.50mm)	Raised	No	Phosphor Bronze	3
MRSSV1DC16SMGWT SW ROTARY DIP HEX COMP 0.4VA 20V TE Connectivity ALCOSWITCH Switches Datasheet	3,600 In Stock	1 : $7.61 5 : $32.65 10 : $61.20 25 : $140.25 60 : $314.40 120 : $591.60 300 : $1,356.00 540 : $2,289.60 1,020 : $4,090.20 Tube	MRSS	Tube	Active	-	Gold	20VAC/DC	0.4VA	Surface Mount	0.100" (2.54mm), Full	Hexadecimal Complement	-40°C ~ 85°C	Gull Wing	Rotary for Tool	0.122" (3.10mm)	Flush, Recessed	No	Copper Alloy	16
MRSSV0DC10SMGWT SW ROTARY DIP BCD COMP 0.4VA 20V TE Connectivity ALCOSWITCH Switches Datasheet	3,600 In Stock	1 : $7.31 5 : $31.45 10 : $58.80 25 : $134.50 60 : $302.40 120 : $567.60 300 : $1,299.00 540 : $2,192.40 1,020 : $3,886.20 Tube	MRSS	Tube	Active	-	Gold	20VAC/DC	0.4VA	Surface Mount	0.100" (2.54mm), Full	BCD Complement	-40°C ~ 85°C	Gull Wing	Rotary for Tool	0.122" (3.10mm)	Flush, Recessed	No	Copper Alloy	10
MRSSV1DC10SMJT SW ROTARY DIP BCD COMP 0.4VA 20V TE Connectivity ALCOSWITCH Switches Datasheet	3,600 In Stock	1 : $7.61 5 : $32.65 10 : $61.20 25 : $140.25 60 : $314.40 120 : $591.60 300 : $1,356.00 540 : $2,289.60 1,020 : $4,090.20 Tube	MRSS	Tube	Active	-	Gold	20VAC/DC	0.4VA	Surface Mount	0.100" (2.54mm), Full	BCD Complement	-40°C ~ 85°C	J Lead	Rotary for Tool	0.119" (3.02mm)	Flush, Recessed	No	Copper Alloy	10
MRSSV0DG10SMJT SW ROTARY DIP GRY CODE 0.4VA 20V TE Connectivity ALCOSWITCH Switches Datasheet	3,600 In Stock	1 : $7.31 5 : $31.45 10 : $58.80 25 : $134.50 60 : $302.40 120 : $567.60 300 : $1,299.00 540 : $2,192.40 1,020 : $3,886.20 Tube	MRSS	Tube	Active	-	Gold	20VAC/DC	0.4VA	Surface Mount	0.100" (2.54mm), Full	Gray Code	-40°C ~ 85°C	J Lead	Rotary for Tool	0.119" (3.02mm)	Flush, Recessed	No	Copper Alloy	10
MRSSH4DR16THT SWITCH ROTARY DIP HEX 0.4VA 20V TE Connectivity ALCOSWITCH Switches Datasheet	3,599 In Stock	1 : $7.92 5 : $34.00 10 : $63.70 25 : $146.00 60 : $327.00 120 : $615.60 300 : $1,410.00 540 : $2,381.40 1,020 : $4,253.40 Tube	MRSS	Tube	Active	-	Gold	20VAC/DC	0.4VA	Through Hole, Right Angle	0.050" (1.27mm), Half	Hexadecimal	-40°C ~ 85°C	PC Pin	Rotary for Tool	0.303" (7.70mm)	Flush, Recessed	No	Copper Alloy	16
MRSSV0DR10SMJT SWITCH ROTARY DIP BCD 0.4VA 20V TE Connectivity ALCOSWITCH Switches Datasheet	3,600 In Stock	1 : $7.31 5 : $31.45 10 : $58.80 25 : $134.50 60 : $302.40 120 : $567.60 300 : $1,299.00 540 : $2,192.40 1,020 : $3,886.20 Tube	MRSS	Tube	Active	-	Gold	20VAC/DC	0.4VA	Surface Mount	0.100" (2.54mm), Full	BCD	-40°C ~ 85°C	J Lead	Rotary for Tool	0.119" (3.02mm)	Flush, Recessed	No	Copper Alloy	10
