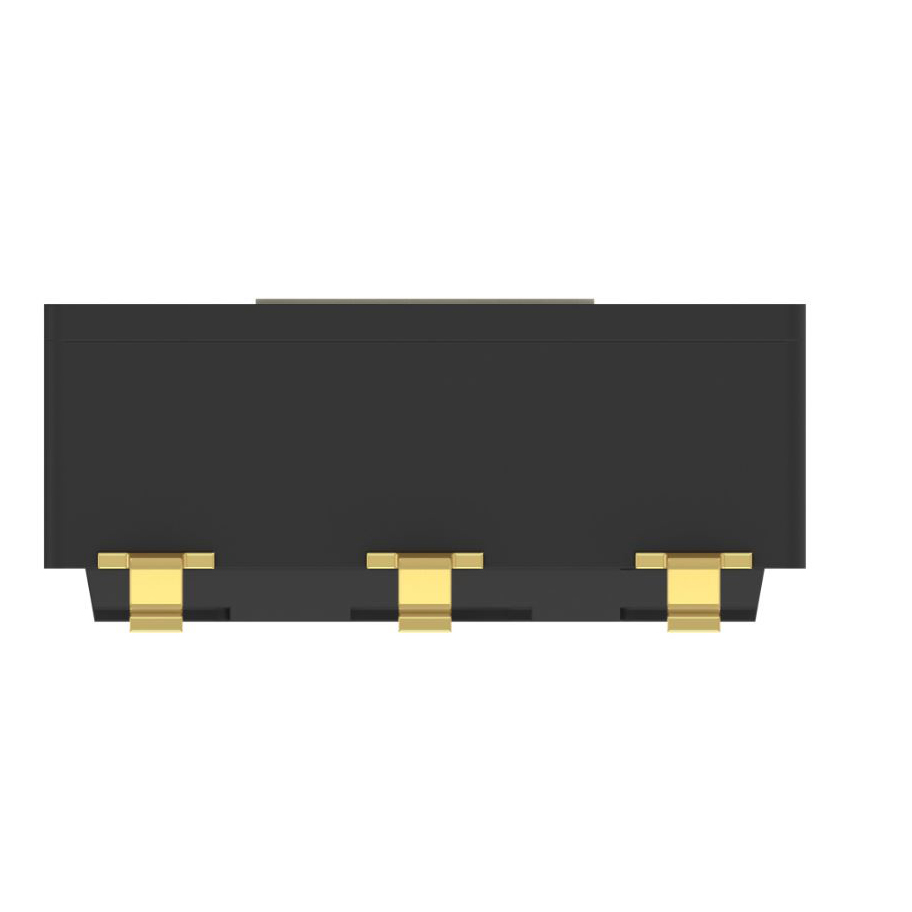

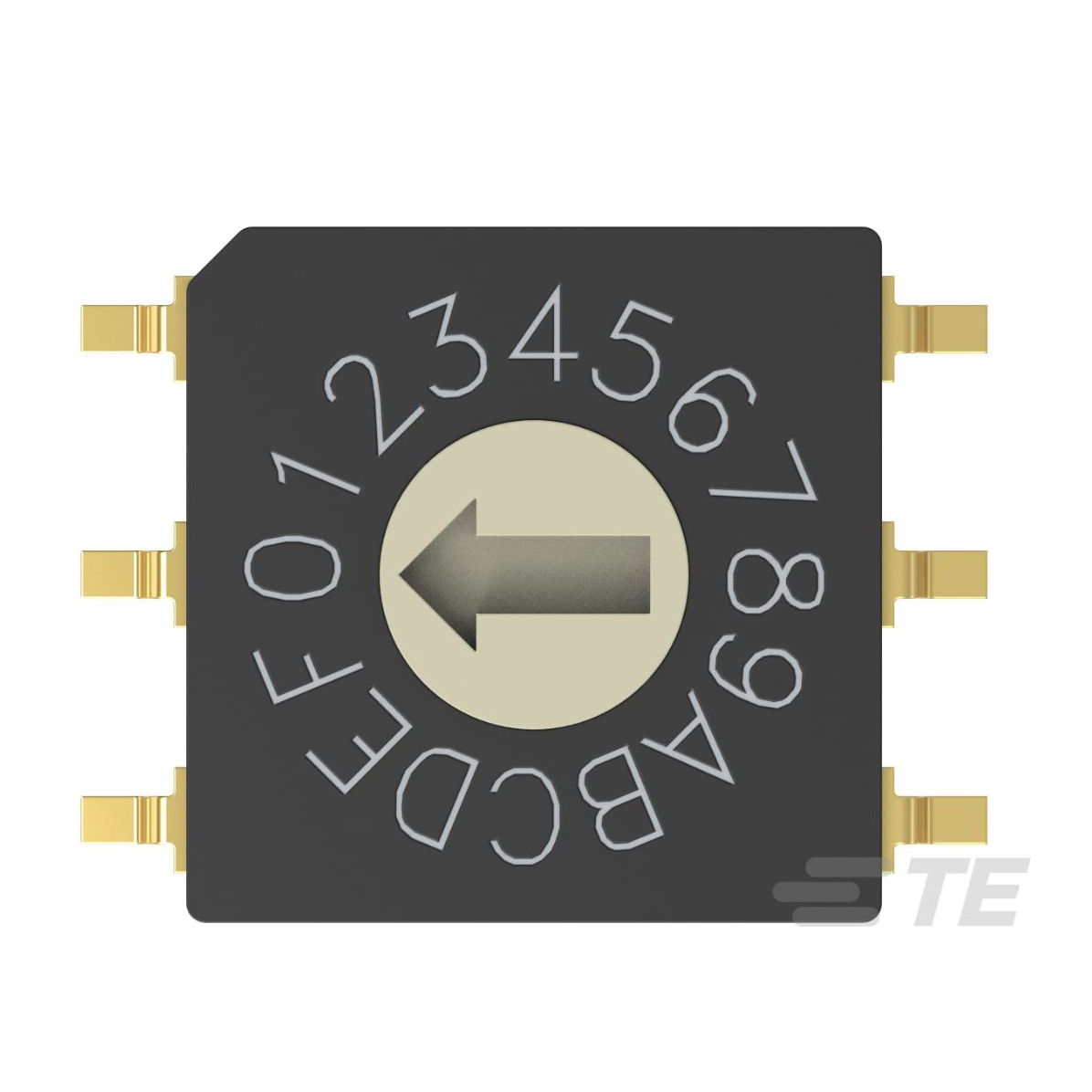

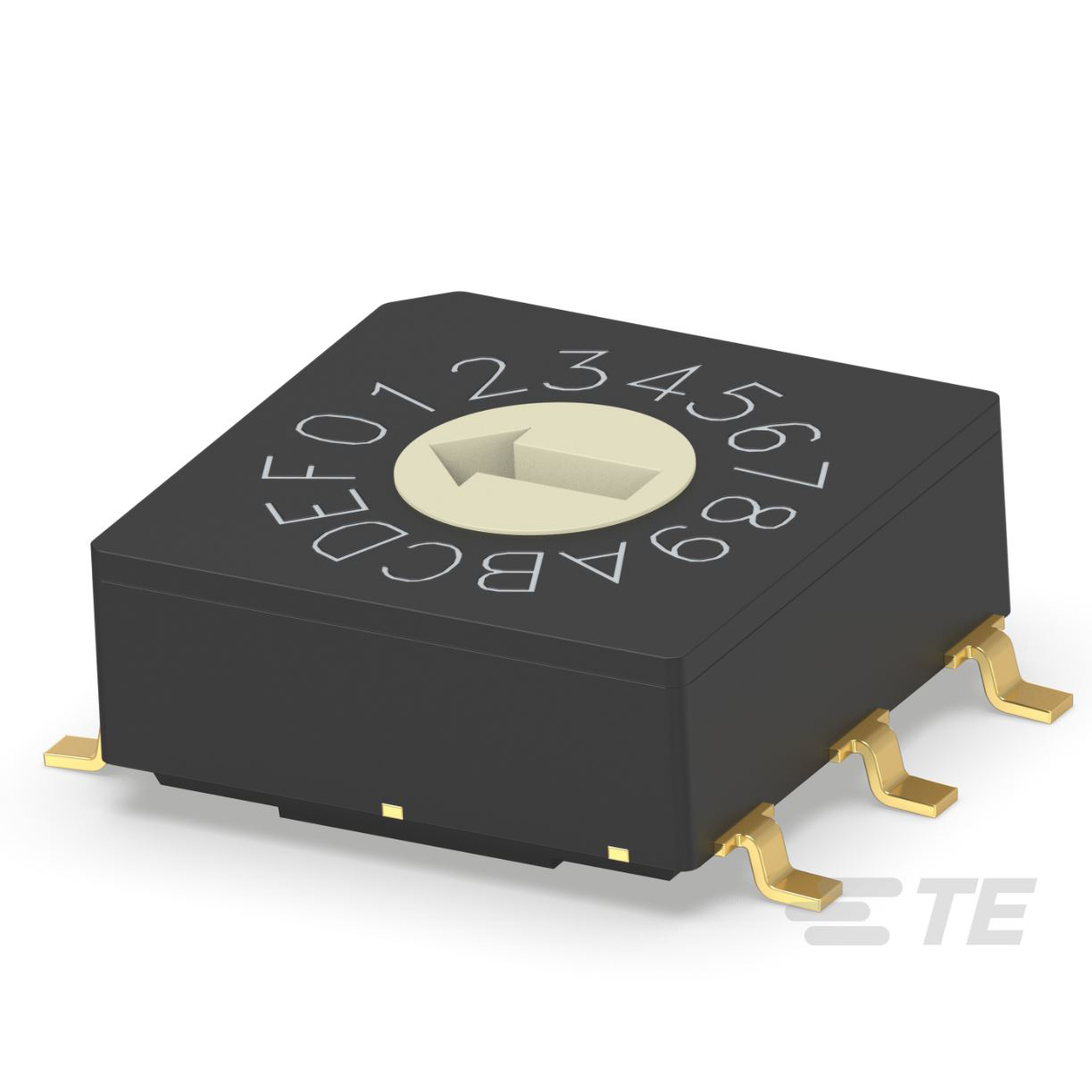

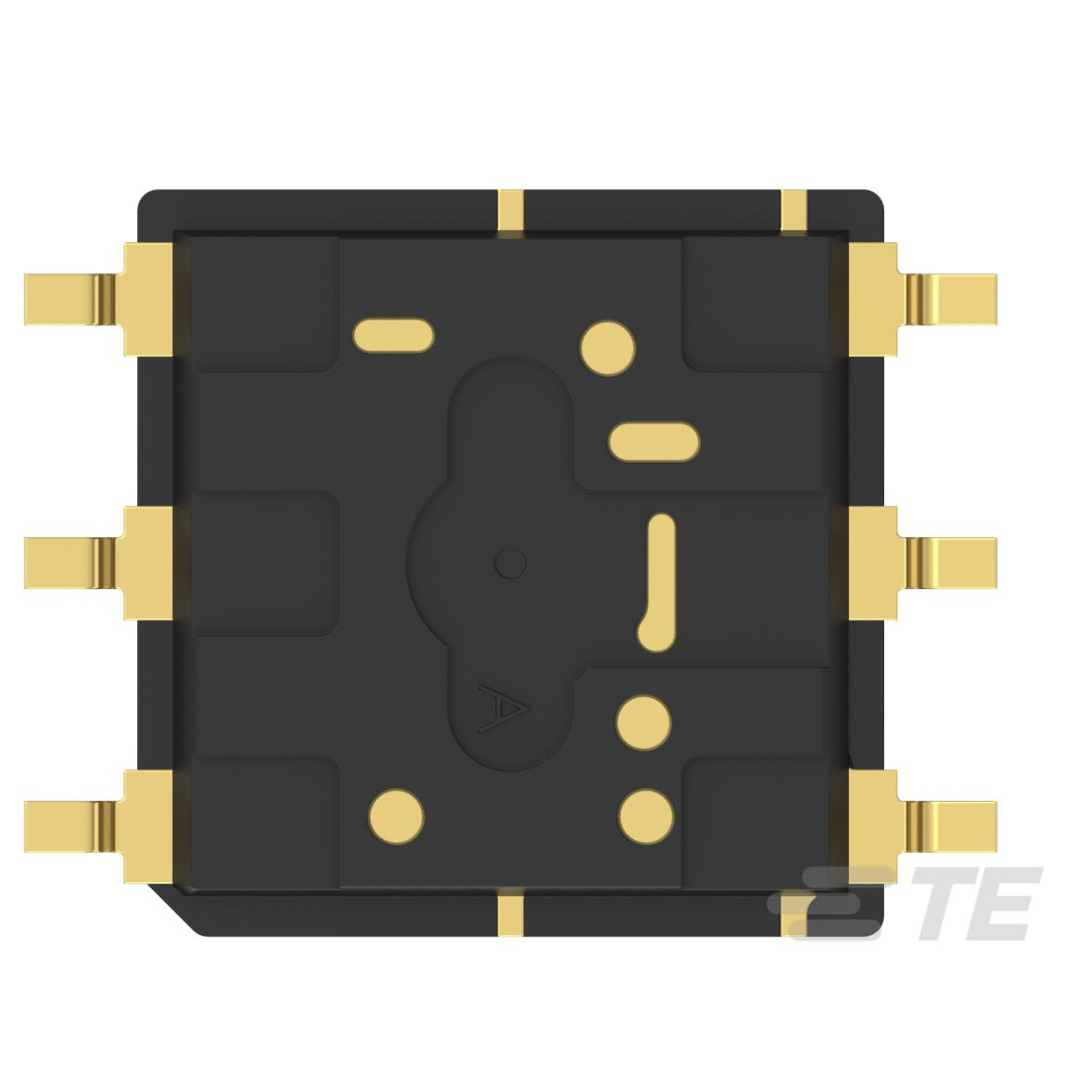

MRSSV1DC16SMGWT

MRSSV1DC16SMGWT

Part Number	MRSSV1DC16SMGWT
Manufacturer	TE Connectivity ALCOSWITCH Switches
Other Part Numbers	450-MRSSV1DC16SMGWT-ND 2396234-9 450-MRSSV1DC16SMGWT
Description	SW ROTARY DIP HEX COMP 0.4VA 20V
Detailed Description	Dip Switch Hexadecimal Complement 16 Position Surface Mount Rotary for Tool Actuator 0.4VA 20VAC/DC
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches DIP Switches
Manufacturer		TE Connectivity ALCOSWITCH Switches
Series		MRSS
Packaging		Tube
Part Status		Active
Contact Finish		Gold
Voltage Rating		20VAC/DC
Current Rating (Amps)		0.4VA
Mounting Type		Surface Mount
Pitch		0.100" (2.54mm), Full
Circuit		Hexadecimal Complement
Operating Temperature		-40°C ~ 85°C
Termination Style		Gull Wing
Actuator Type		Rotary for Tool
Height Above Board		0.122" (3.10mm)
Actuator Level		Flush, Recessed
Washable		No
Contact Material		Copper Alloy
Number of Positions		16

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MRSSV1DC16SMGWT
Datasheets		MRSS - MINIATURE ROTARY SWITCH SERIES
Datasheets		2396234-9.pdf
Datasheets		2396234

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9065
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

In Stock: 3600

Can ship immediately.
