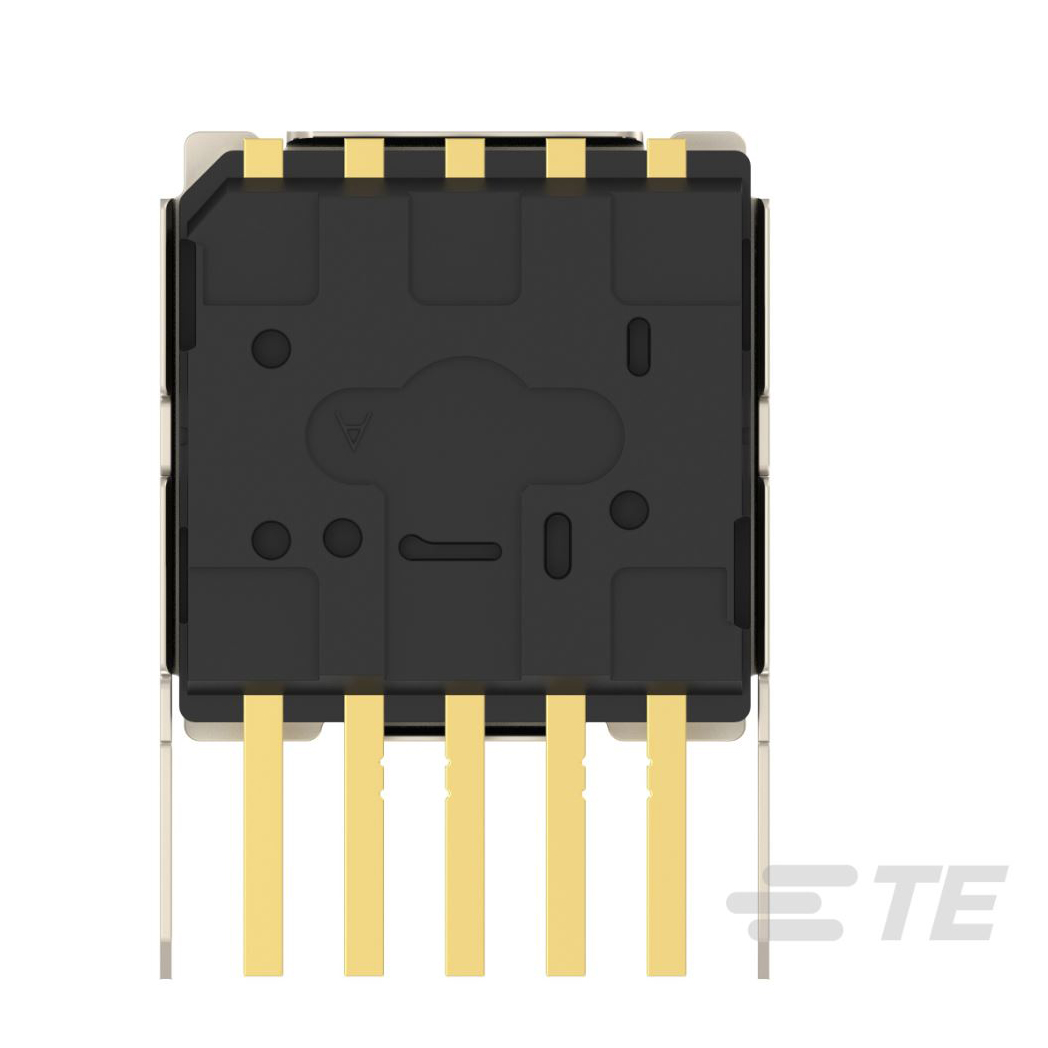

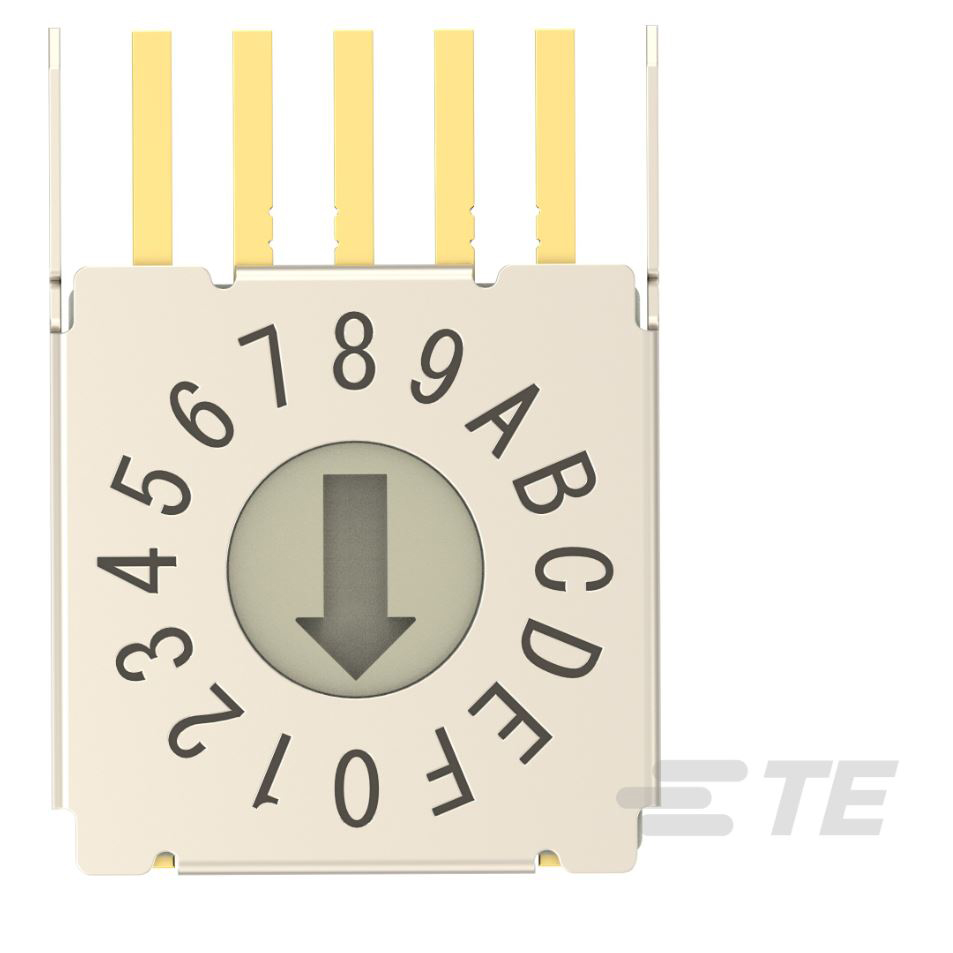

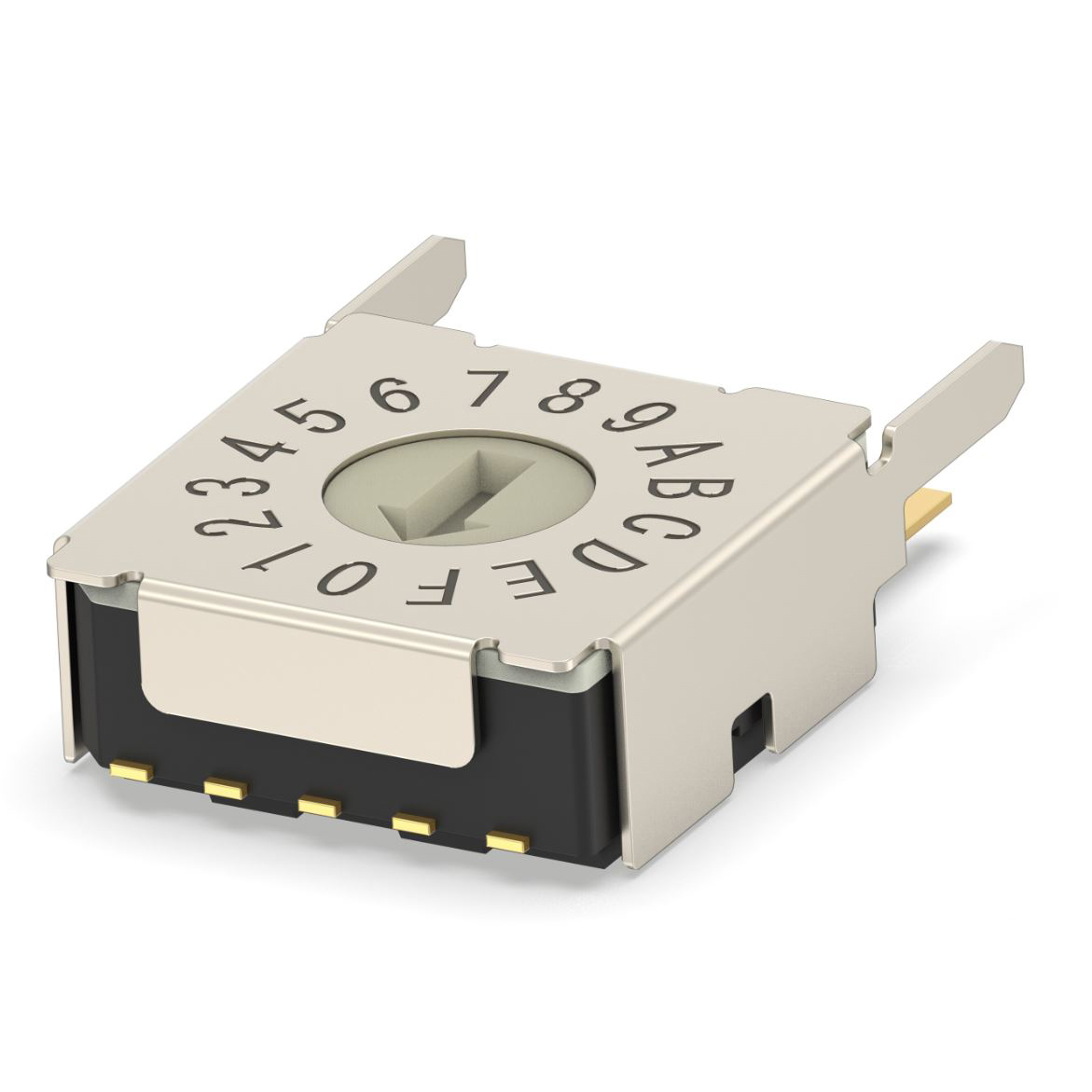

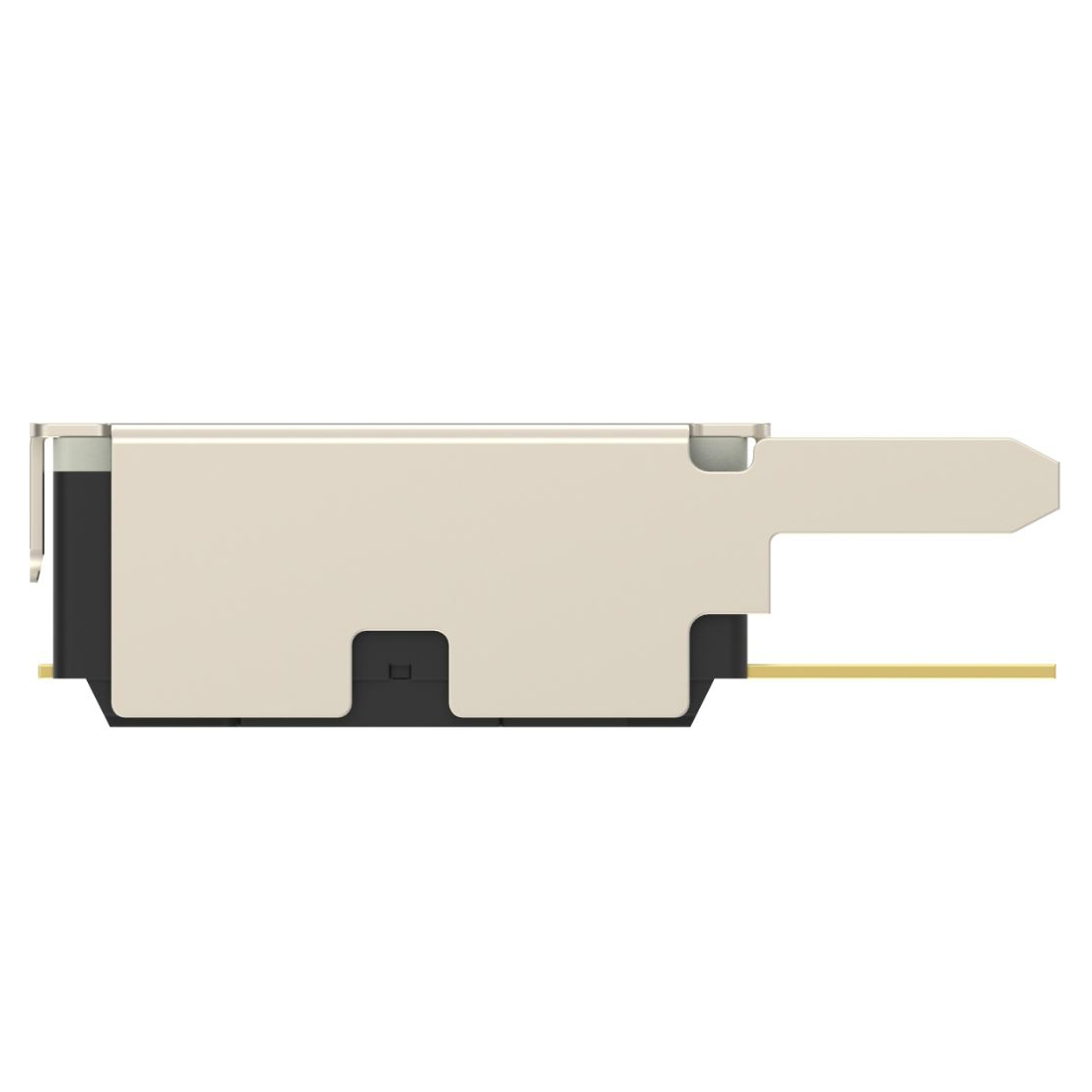

MRSSH4DR16THT

MRSSH4DR16THT

Part Number	MRSSH4DR16THT
Manufacturer	TE Connectivity ALCOSWITCH Switches
Other Part Numbers	450-MRSSH4DR16THT-ND 450-MRSSH4DR16THT 1-2396236-8
Description	SWITCH ROTARY DIP HEX 0.4VA 20V
Detailed Description	Dip Switch Hexadecimal 16 Position Through Hole, Right Angle Rotary for Tool Actuator 0.4VA 20VAC/DC
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches DIP Switches
Manufacturer		TE Connectivity ALCOSWITCH Switches
Series		MRSS
Packaging		Tube
Part Status		Active
Contact Finish		Gold
Voltage Rating		20VAC/DC
Current Rating (Amps)		0.4VA
Mounting Type		Through Hole, Right Angle
Pitch		0.050" (1.27mm), Half
Circuit		Hexadecimal
Operating Temperature		-40°C ~ 85°C
Termination Style		PC Pin
Actuator Type		Rotary for Tool
Height Above Board		0.303" (7.70mm)
Actuator Level		Flush, Recessed
Washable		No
Contact Material		Copper Alloy
Number of Positions		16

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MRSSH4DR16THT
Datasheets		MRSS - MINIATURE ROTARY SWITCH SERIES
Datasheets		1-2396236-8.pdf
Datasheets		2396236

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9065
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

In Stock: 3599

Can ship immediately.
