Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Package / Case	Filter Type	Size / Dimension	Mounting Type	Number of Lines	Operating Temperature	Approval Agency	Ratings	Height (Max)	Voltage Rating - AC	Voltage Rating - DC	Current Rating (Max)	DC Resistance (DCR) (Max)	Grade	Inductance @ Frequency	Impedance @ Frequency	Qualification
LF2020NP-222 CMC 2.2MH 1.3A 2LN TH Sumida Corporation Datasheet	8,354 In Stock	1 : $1.53 10 : $13.00 100 : $89.00 1,000 : $760.00 5,000 : $3,550.00 10,000 : $6,800.00 Bulk	LF	Bulk	Active	-	Vertical, 4 PC Pin	Power Line	0.827" L x 0.638" W (21.00mm x 16.20mm)	Through Hole	2	-	-	-	0.886" (22.50mm)	-	-	1.3A	240mOhm	-	2.2 mH @ 1 kHz	-	-
LF2823NP-683 CMC 68MH 600MA 2LN TH Sumida Corporation Datasheet	0 In Stock	150 : $279.00 Bulk	LF	Bulk	Active	-	Vertical, 4 PC Pin	Power Line	1.122" L x 1.122" W (28.50mm x 28.50mm)	Through Hole	2	-	-	-	0.945" (24.00mm)	-	-	600mA	1.82Ohm	-	68 mH @ 1 kHz	-	-

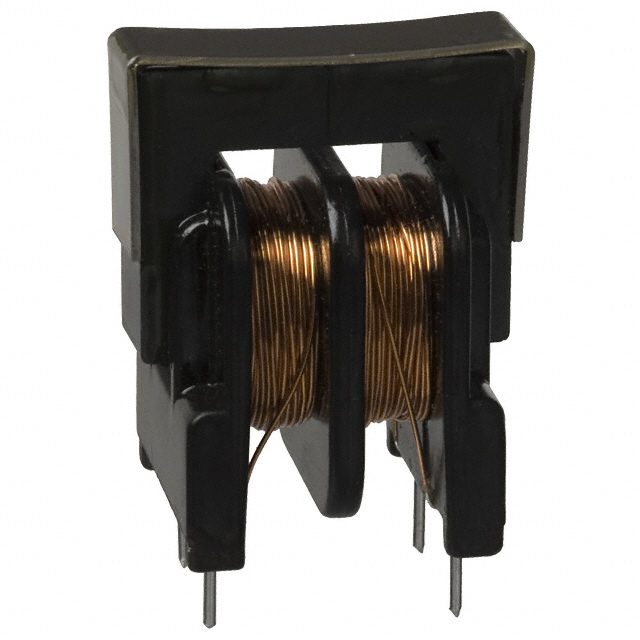

UU9LFNP-B103 CMC 10MH 200MA 2LN TH Sumida Corporation Datasheet	7,894 In Stock	1 : $0.80 10 : $6.70 25 : $15.25 50 : $29.00 100 : $48.00 300 : $132.00 500 : $210.00 1,000 : $380.00 2,500 : $925.00 Bulk	UU	Bulk	Active	-	Vertical, 4 PC Pin	Power Line	0.650" L x 0.433" W (16.50mm x 11.00mm)	Through Hole	2	-	-	-	0.650" (16.50mm)	-	-	200mA	4Ohm	-	10 mH @ 1 kHz	-	-

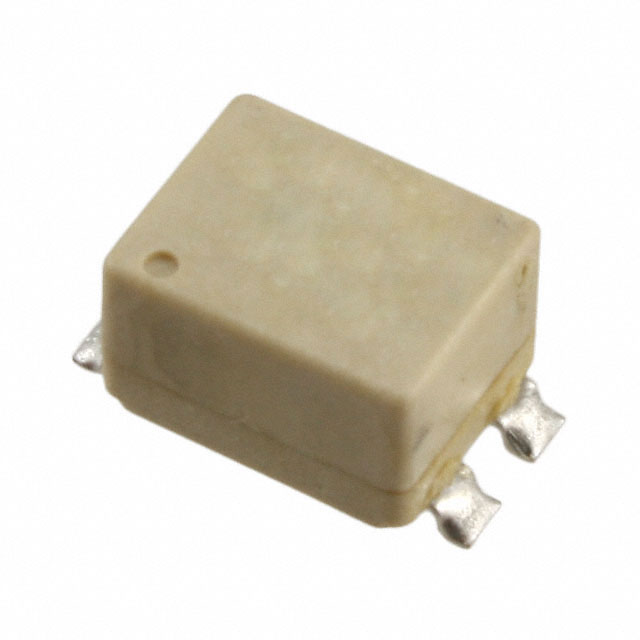

CPFC74NP-PS03H2A25 CMC 2.5A 2LN 300 OHM SMD Sumida Corporation Datasheet	36,972 In Stock	1,000 : $660.00 3,000 : $1,920.00 5,000 : $3,100.00 10,000 : $5,900.00 Tape & Reel (TR)	CPFC	Tape & Reel (TR) Cut Tape (CT)	Active	-	Vertical, 4 Gull Wing	Power Line	0.374" L x 0.224" W (9.50mm x 5.70mm)	Surface Mount	2	-	-	-	0.200" (5.08mm)	-	-	2.5A	120mOhm (Typ)	-	-	300 Ohms @ 160 MHz	-
LF2115NP-222 CMC 2.2MH 1.3A 2LN TH Sumida Corporation Datasheet	0 In Stock	200 : $324.00 Bulk	LF	Bulk	Active	-	Vertical, 4 PC Pin	Power Line	0.827" L x 0.827" W (21.00mm x 21.00mm)	Through Hole	2	-	-	-	0.669" (17.00mm)	-	-	1.3A	240mOhm	-	2.2 mH @ 1 kHz	-	-
PFC2225BNP-402 CMC 4MH 4A 2LN TH Sumida Corporation Datasheet	0 In Stock	100 : $310.00 Bulk	PFC	Bulk	Active	-	Vertical, No Base, 4 PC Pin	Power Line	0.984" L x 0.787" W (25.00mm x 20.00mm)	Through Hole	2	-40°C ~ 85°C	-	-	1.063" (27.00mm)	250V	-	4A	54mOhm	-	4 mH @ 1 kHz	-	-
UU16LFNP-303 CMC 30MH 400MA 2LN TH Sumida Corporation Datasheet	0 In Stock	200 : $268.00 Bulk	UU	Bulk	Active	-	Vertical, 4 PC Pin	Power Line	0.866" L x 0.787" W (22.00mm x 20.00mm)	Through Hole	2	-	-	-	1.122" (28.50mm)	-	-	400mA	2.5Ohm	-	30 mH @ 1 kHz	-	-
CPFC74NP-PS01H2A30 CMC 3A 2LN SMD Sumida Corporation Datasheet	12,767 In Stock	1,000 : $660.00 3,000 : $1,920.00 5,000 : $3,100.00 10,000 : $5,900.00 Tape & Reel (TR)	CPFC	Tape & Reel (TR) Cut Tape (CT)	Active	-	Vertical, 4 Gull Wing	Power Line	0.374" L x 0.224" W (9.50mm x 5.70mm)	Surface Mount	2	-	-	-	0.200" (5.08mm)	-	-	3A	60mOhm (Typ)	-	-	-	-
LF2115NP-333 CMC 33MH 300MA 2LN TH Sumida Corporation Datasheet	0 In Stock	200 : $324.00 Bulk	LF	Bulk	Active	-	Vertical, 4 PC Pin	Power Line	0.827" L x 0.827" W (21.00mm x 21.00mm)	Through Hole	2	-	-	-	0.669" (17.00mm)	-	-	300mA	3.42Ohm	-	33 mH @ 1 kHz	-	-
LF2420NP-452 CMC 4.5MH 1.5A 2LN TH Sumida Corporation Datasheet	0 In Stock	200 : $326.00 Bulk	LF	Bulk	Active	-	Vertical, 4 PC Pin	Power Line	0.953" L x 0.953" W (24.20mm x 24.20mm)	Through Hole	2	-	-	-	0.827" (21.00mm)	-	-	1.5A	210mOhm	-	4.5 mH @ 1 kHz	-	-
