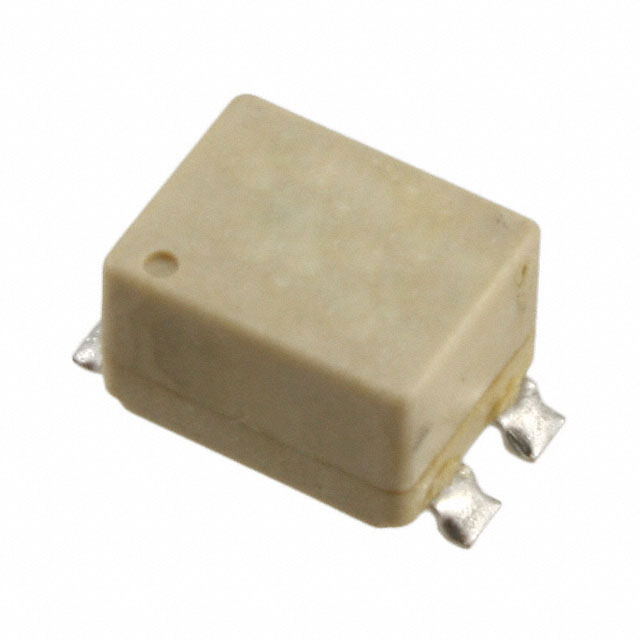

CPFC74NP-PS01H2A30

CPFC74NP-PS01H2A30

Part Number	CPFC74NP-PS01H2A30
Manufacturer	Sumida Corporation
Other Part Numbers	308-1561-2-ND 308-1561-1-ND 308-1561-6-ND 308-1561-2 308-1561-1 308-1561-6 CPFC74NPPS01H2A30
Description	CMC 3A 2LN SMD
Detailed Description	2 Line Common Mode Choke Surface Mount 3A DCR 60mOhm (Typ)
Manufacturer Standard Lead Time	35 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		Sumida Corporation
Series		CPFC
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		Vertical, 4 Gull Wing
Filter Type		Power Line
Size / Dimension		0.374" L x 0.224" W (9.50mm x 5.70mm)
Mounting Type		Surface Mount
Number of Lines		2
Height (Max)		0.200" (5.08mm)
Current Rating (Max)		3A
DC Resistance (DCR) (Max)		60mOhm (Typ)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CPFC74NP-PS01H2A30
Datasheets		RoHS Cert
Datasheets		CPFC74 Series Top
Datasheets		CPFC74 Series Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant

In Stock: 12767

Can ship immediately.
