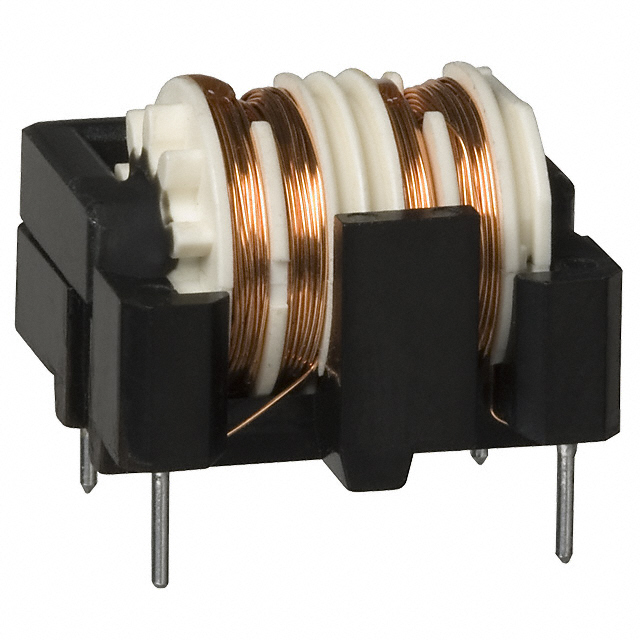

LF2115NP-222

LF2115NP-222

Part Number	LF2115NP-222
Manufacturer	Sumida Corporation
Other Part Numbers	308-1353-ND 308-1353
Description	CMC 2.2MH 1.3A 2LN TH
Detailed Description	2.2 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 1.3A DCR 240mOhm
Manufacturer Standard Lead Time	28 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		Sumida Corporation
Series		LF
Packaging		Bulk
Part Status		Active
Package / Case		Vertical, 4 PC Pin
Filter Type		Power Line
Size / Dimension		0.827" L x 0.827" W (21.00mm x 21.00mm)
Mounting Type		Through Hole
Number of Lines		2
Height (Max)		0.669" (17.00mm)
Current Rating (Max)		1.3A
DC Resistance (DCR) (Max)		240mOhm
Inductance @ Frequency		2.2 mH @ 1 kHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		LF2115NP-222
Datasheets		RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
