WNSCM160120WQ _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	WNSCM160120WQ
Manufacturer	WeEn Semiconductors Co., Ltd
Other Part Numbers	1740-WNSCM160120WQ-ND 934072809127 1740-WNSCM160120WQ
Description	WNSCM160120W/TO-247/STANDARD MAR
Detailed Description	N-Channel 1200 V 24A (Ta) 155W (Ta) Through Hole TO-247-3
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		WeEn Semiconductors Co., Ltd
Series
Packaging		Bulk
Part Status		Active

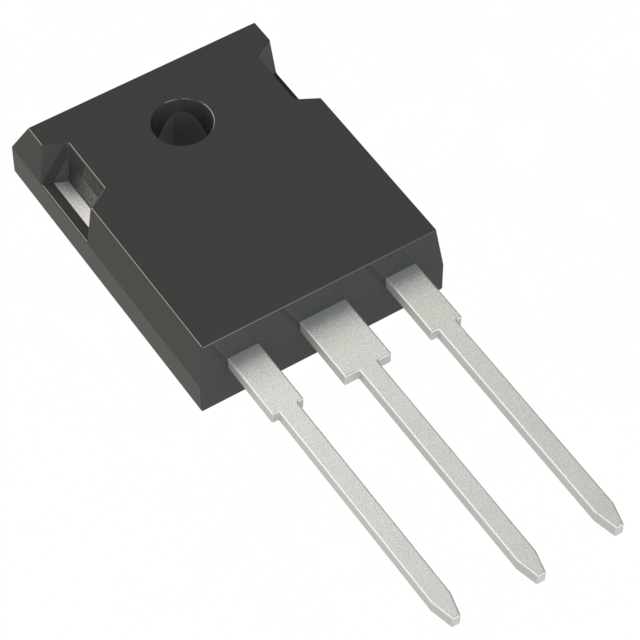

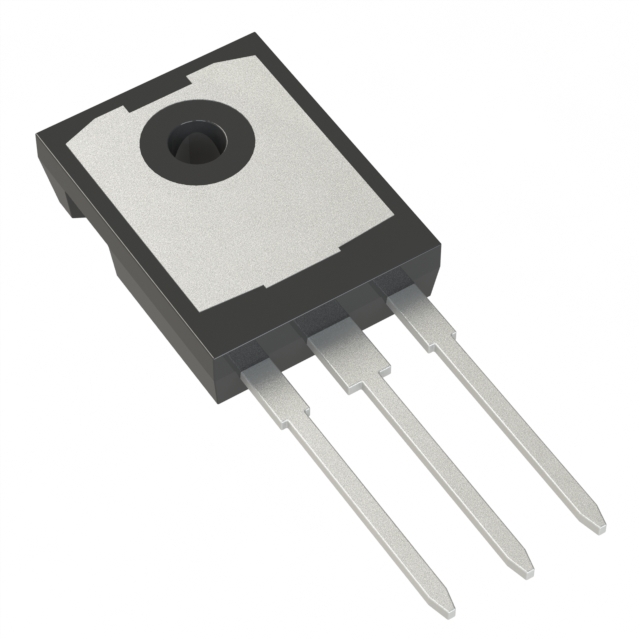

Package / Case		TO-247-3
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		24A (Ta)
Rds On (Max) @ Id, Vgs		196mOhm @ 10A, 20V
Power Dissipation (Max)		155W (Ta)
Vgs(th) (Max) @ Id		4.5V @ 3mA
Supplier Device Package		TO-247-3
Drive Voltage (Max Rds On, Min Rds On)		20V
Vgs (Max)		+25V, -10V
Drain to Source Voltage (Vdss)		1200 V
Gate Charge (Qg) (Max) @ Vgs		35 nC @ 20 V
Input Capacitance (Ciss) (Max) @ Vds		736 pF @ 1000 V
