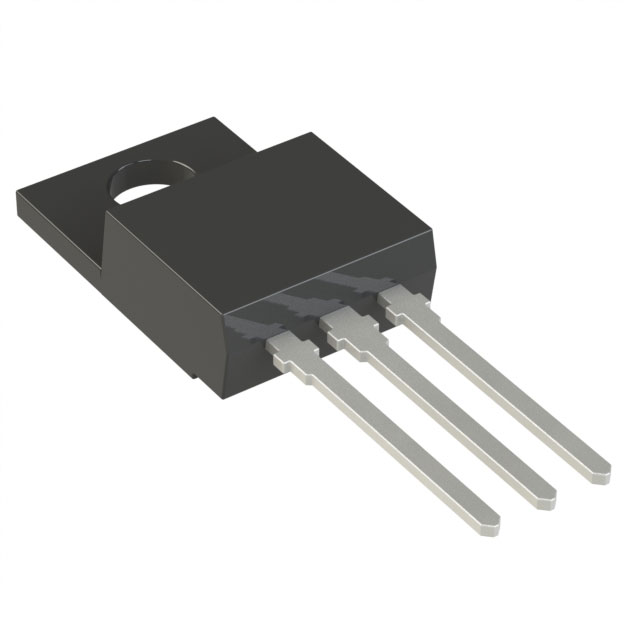

WN3S30100CXQ

Part Number
WN3S30100CXQ
Manufacturer WeEn Semiconductors Co., Ltd
Other Part Numbers
1740-WN3S30100CXQ-ND
1740-WN3S30100CXQ
934072901127
Description DIODE ARR SCHOTT 100V 15A TO220F
Detailed Description Diode Array 1 Pair Common Cathode 100 V 15A Through Hole TO-220-3 Full Pack, Isolated Tab
Manufacturer Standard Lead Time 8 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer WeEn Semiconductors Co., Ltd
Series
Packaging
Tube
Part Status Active
Package / Case TO-220-3 Full Pack, Isolated Tab
Mounting Type Through Hole
Speed Fast Recovery =< 500ns, > 200mA (Io)
Technology Schottky
Diode Configuration 1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode) 15A
Supplier Device Package TO-220F
Operating Temperature - Junction 150°C
Voltage - DC Reverse (Vr) (Max) 100 V
Voltage - Forward (Vf) (Max) @ If 770 mV @ 15 A
Current - Reverse Leakage @ Vr 50 µA @ 100 V

Documents & Media

RESOURCE TYPE LINK
Datasheets WN3S30100CXQ
Datasheets TO-220F,3PF 3-6-23

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant

In Stock: 5995

Can ship immediately.
