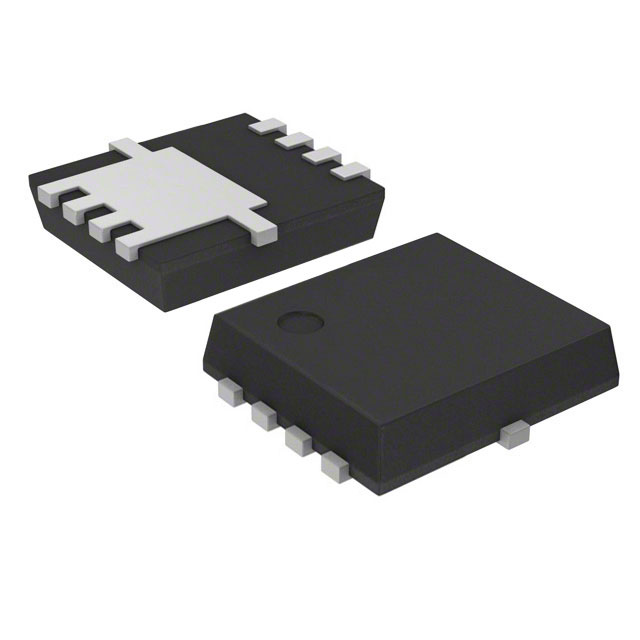

TPH1R204PL,L1Q _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	TPH1R204PL,L1Q
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	TPH1R204PLL1QTR-ND TPH1R204PLL1QCT-ND TPH1R204PLL1QDKR-ND TPH1R204PLL1QCT TPH1R204PLL1QDKR TPH1R204PL,L1Q(M TPH1R204PLL1QTR
Description	MOSFET N-CH 40V 150A 8SOP
Detailed Description	N-Channel 40 V 150A (Tc) 960mW (Ta), 132W (Tc) Surface Mount 8-SOP Advance (5x5)
Manufacturer Standard Lead Time	32 weeks

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series		U-MOSIX-H
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		8-PowerVDFN
Mounting Type		Surface Mount
Operating Temperature		175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		150A (Tc)
Rds On (Max) @ Id, Vgs		1.24mOhm @ 50A, 10V
Power Dissipation (Max)		960mW (Ta), 132W (Tc)
Vgs(th) (Max) @ Id		2.4V @ 500µA
Supplier Device Package		8-SOP Advance (5x5)
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		40 V
Gate Charge (Qg) (Max) @ Vgs		74 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		7200 pF @ 20 V

RESOURCE TYPE		LINK
Datasheets		TPH1R204PL,L1Q

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

Can ship immediately.
