TK46A08N1,S4X _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	TK46A08N1,S4X
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	264-TK46A08N1,S4X-ND 264-TK46A08N1,S4X TK46A08N1,S4X(S TK46A08N1,S4X-ND TK46A08N1S4X TK46A08N1S4X-ND
Description	MOSFET N-CH 80V 46A TO220SIS
Detailed Description	N-Channel 80 V 46A (Tc) 35W (Tc) Through Hole TO-220SIS
Manufacturer Standard Lead Time	24 weeks

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series		U-MOSVIII-H
Packaging		Tube
Part Status		Active

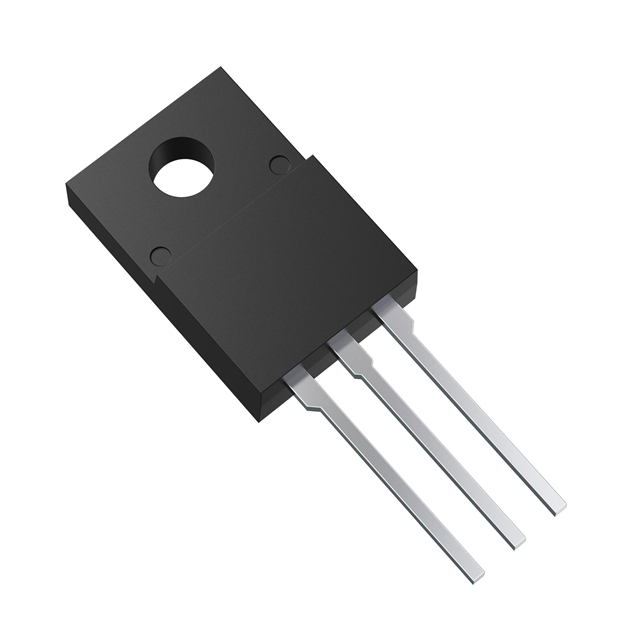

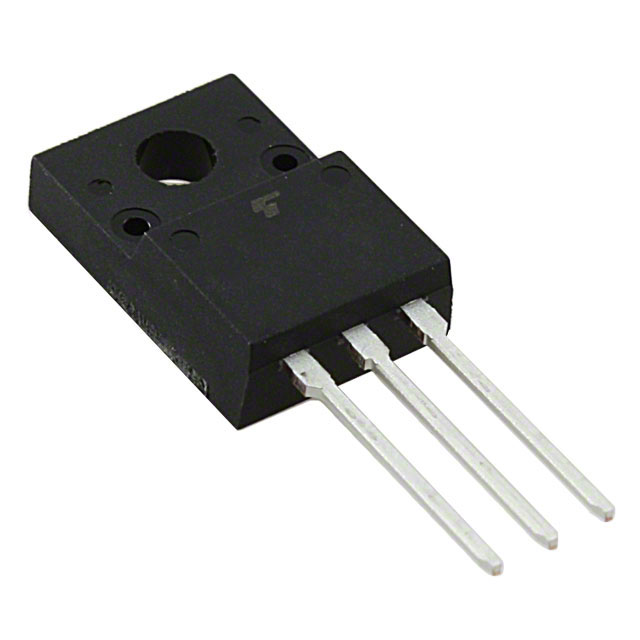

Package / Case		TO-220-3 Full Pack
Mounting Type		Through Hole
Operating Temperature		150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		46A (Tc)
Rds On (Max) @ Id, Vgs		8.4mOhm @ 23A, 10V
Power Dissipation (Max)		35W (Tc)
Vgs(th) (Max) @ Id		4V @ 500µA
Supplier Device Package		TO-220SIS
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		80 V
Gate Charge (Qg) (Max) @ Vgs		37 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		2500 pF @ 40 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
{{ p.name }}	{{ numberFormat(p.buyQty) }}	{{ priceFormat(p.unitPrice) }}	{{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

QUANTITY	UNIT PRICE	EXT PRICE
{{ numberFormat(price.break_quantity) }}	{{ priceFormat(price.unit_price) }}	{{ priceFormat(price.break_quantity * price.unit_price) }}

Detailed pricing is currently unavailable.

Detailed packaging information is temporarily unavailable.
