TK40E10K3,S1X(S

TK40E10K3,S1X(S

Part Number	TK40E10K3,S1X(S
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	TK40E10K3S1X(S-ND TK40E10K3S1XS TK40E10K3S1X(S
Description	MOSFET N-CH 100V 40A TO220-3
Detailed Description	N-Channel 100 V 40A (Ta) Through Hole TO-220-3

Product Attributes

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series		U-MOSIV
Packaging		Tube
Part Status		Obsolete

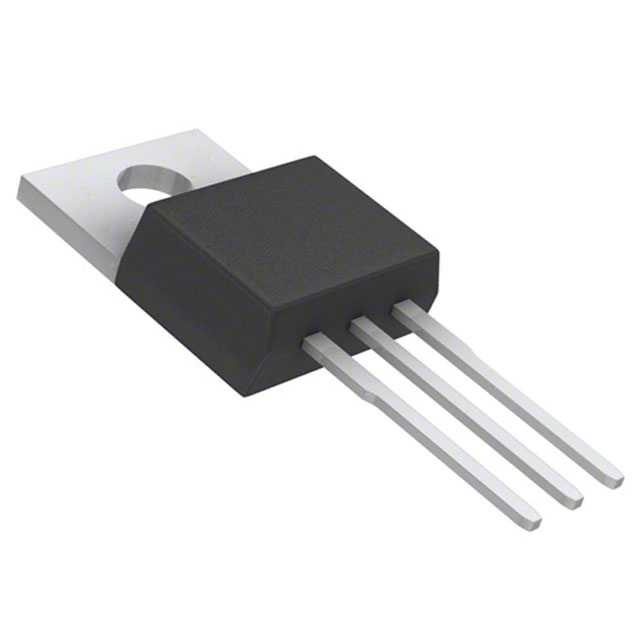

Package / Case		TO-220-3
Mounting Type		Through Hole
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		40A (Ta)
Rds On (Max) @ Id, Vgs		15mOhm @ 20A, 10V
Vgs(th) (Max) @ Id		4V @ 1mA
Supplier Device Package		TO-220-3
Drain to Source Voltage (Vdss)		100 V
Gate Charge (Qg) (Max) @ Vgs		84 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		4000 pF @ 10 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TK40E10K3,S1X(S

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

Obsolete

This product is no longer manufactured.
