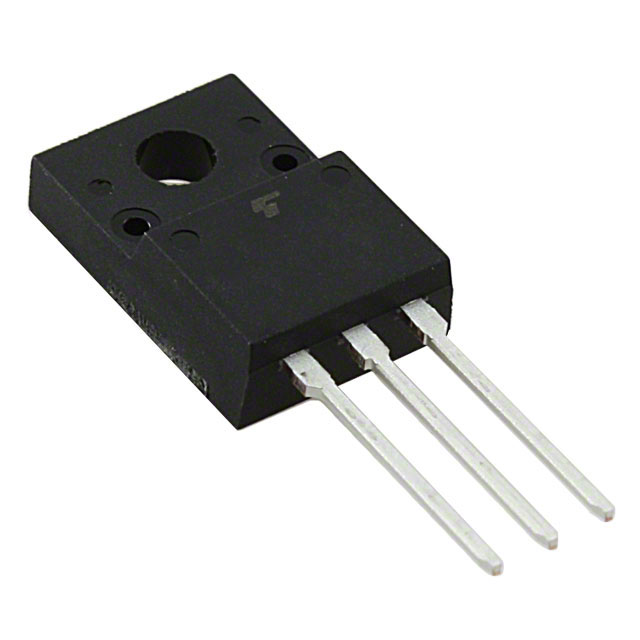

TK10A60W,S4X

TK10A60W,S4X

Part Number	TK10A60W,S4X
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	TK10A60WS4X-ND TK10A60WS4X
Description	MOSFET N-CH 600V 9.7A TO220
Detailed Description	N-Channel 600 V 9.7A (Ta) 30W (Tc) Through Hole TO-220SIS
Manufacturer Standard Lead Time	17 weeks

Product Attributes

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series		DTMOSIV
Packaging		Tube
Part Status		Active
Package / Case		TO-220-3 Full Pack
Mounting Type		Through Hole
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		9.7A (Ta)
Rds On (Max) @ Id, Vgs		380mOhm @ 4.9A, 10V
Power Dissipation (Max)		30W (Tc)
Vgs(th) (Max) @ Id		3.7V @ 500µA
Supplier Device Package		TO-220SIS
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±30V
Drain to Source Voltage (Vdss)		600 V
Gate Charge (Qg) (Max) @ Vgs		20 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		720 pF @ 300 V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
