STPS30L40CG

Part Number
STPS30L40CG
Manufacturer STMicroelectronics
Other Part Numbers
STPS30L40CG-ND
Description DIODE ARR SCHOTT 40V 15A D2PAK
Detailed Description Diode Array 1 Pair Common Cathode 40 V 15A Surface Mount TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Datasheet Datasheet

Product Attributes

Category
Manufacturer STMicroelectronics
Series
Packaging
Tube
Part Status Obsolete

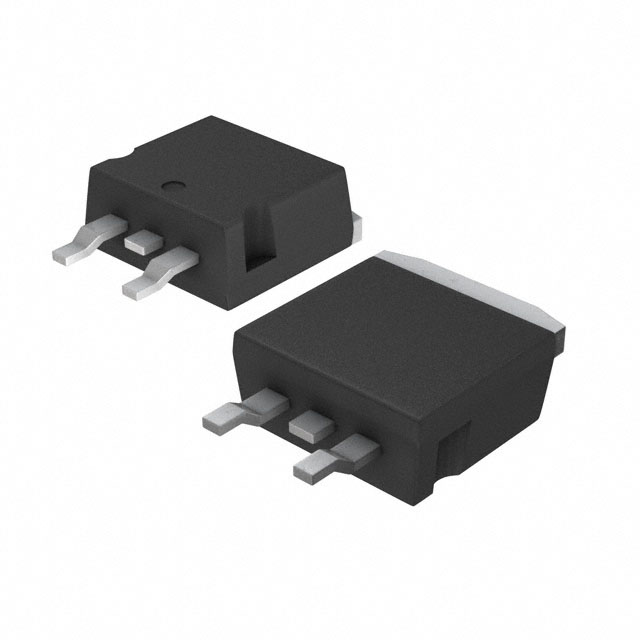

Package / Case TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type Surface Mount
Speed Fast Recovery =< 500ns, > 200mA (Io)
Technology Schottky
Diode Configuration 1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode) 15A
Supplier Device Package D2PAK
Operating Temperature - Junction 150°C (Max)
Voltage - DC Reverse (Vr) (Max) 40 V
Voltage - Forward (Vf) (Max) @ If 550 mV @ 15 A
Current - Reverse Leakage @ Vr 360 µA @ 40 V

Documents & Media

RESOURCE TYPE LINK
Datasheets STPS30L40CG

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
