STPS20H100CG-TR

STPS20H100CG-TR

Part Number
STPS20H100CG-TR
Manufacturer STMicroelectronics
Other Part Numbers
497-2457-2-ND
497-2457-1-ND
497-2457-6-ND
497-2457-6
STPS20H100CGTR
497-2457-2-NDR
497-2457-1
497-2457-2
497-2457-1-NDR
Description DIODE ARR SCHOTT 100V 10A D2PAK

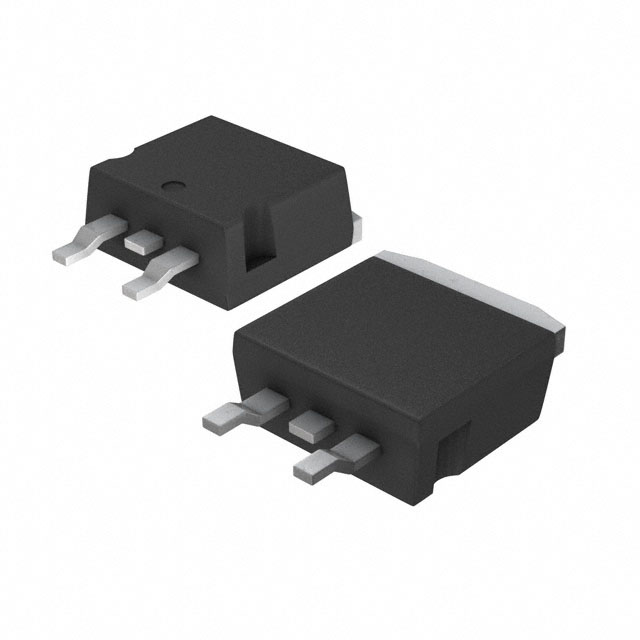

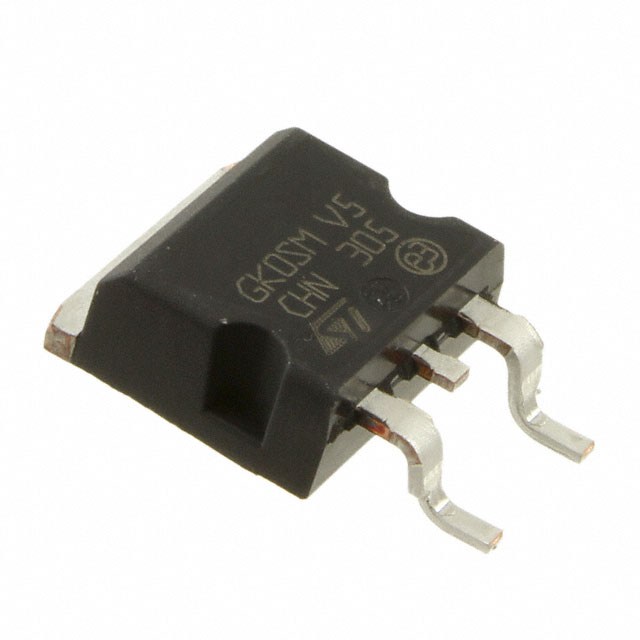

Detailed Description Diode Array 1 Pair Common Cathode 100 V 10A Surface Mount TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Manufacturer Standard Lead Time 25 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer STMicroelectronics
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type Surface Mount
Speed Fast Recovery =< 500ns, > 200mA (Io)
Technology Schottky
Diode Configuration 1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode) 10A
Supplier Device Package D2PAK
Operating Temperature - Junction 175°C (Max)
Voltage - DC Reverse (Vr) (Max) 100 V
Voltage - Forward (Vf) (Max) @ If 770 mV @ 10 A
Current - Reverse Leakage @ Vr 4.5 µA @ 100 V

Documents & Media

RESOURCE TYPE LINK
Datasheets STPS20H100CG-TR
Datasheets D2PAK Lead Modification 04/Oct/2013
Datasheets Mult Devices 27/Feb/2019
Datasheets Box Label Chg 28/Jul/2016

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 5889

Can ship immediately.
