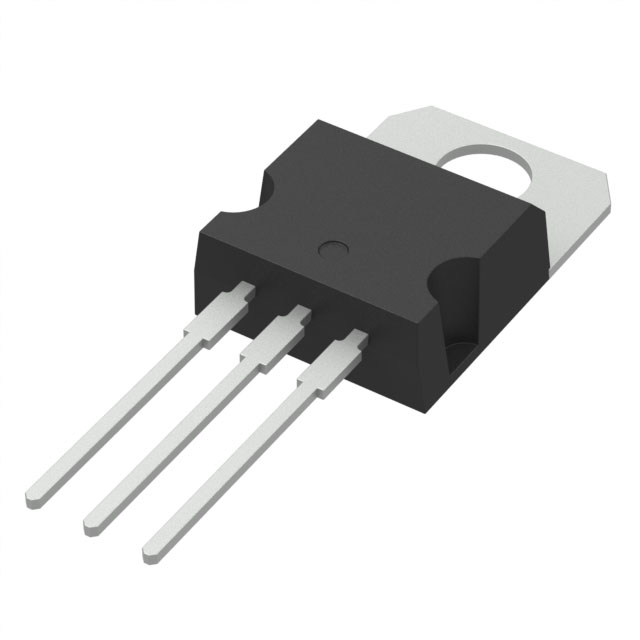

STPS2045CT

Part Number
STPS2045CT
Manufacturer STMicroelectronics
Other Part Numbers
497-7550-5-ND
STPS2045CT-ND
497-7550-5
-497-7550-5
Description DIODE ARR SCHOTT 45V 10A TO220
Detailed Description Diode Array 1 Pair Common Cathode 45 V 10A Through Hole TO-220-3
Manufacturer Standard Lead Time 15 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer STMicroelectronics
Series
Packaging
Tube
Part Status Active
Package / Case TO-220-3
Mounting Type Through Hole
Speed Fast Recovery =< 500ns, > 200mA (Io)
Technology Schottky
Diode Configuration 1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode) 10A
Supplier Device Package TO-220
Operating Temperature - Junction 175°C (Max)
Voltage - DC Reverse (Vr) (Max) 45 V
Voltage - Forward (Vf) (Max) @ If 570 mV @ 10 A
Current - Reverse Leakage @ Vr 100 µA @ 45 V

Documents & Media

RESOURCE TYPE LINK
Datasheets STPS2045CT
Datasheets Box Label Chg 28/Jul/2016

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 2021

Can ship immediately.
